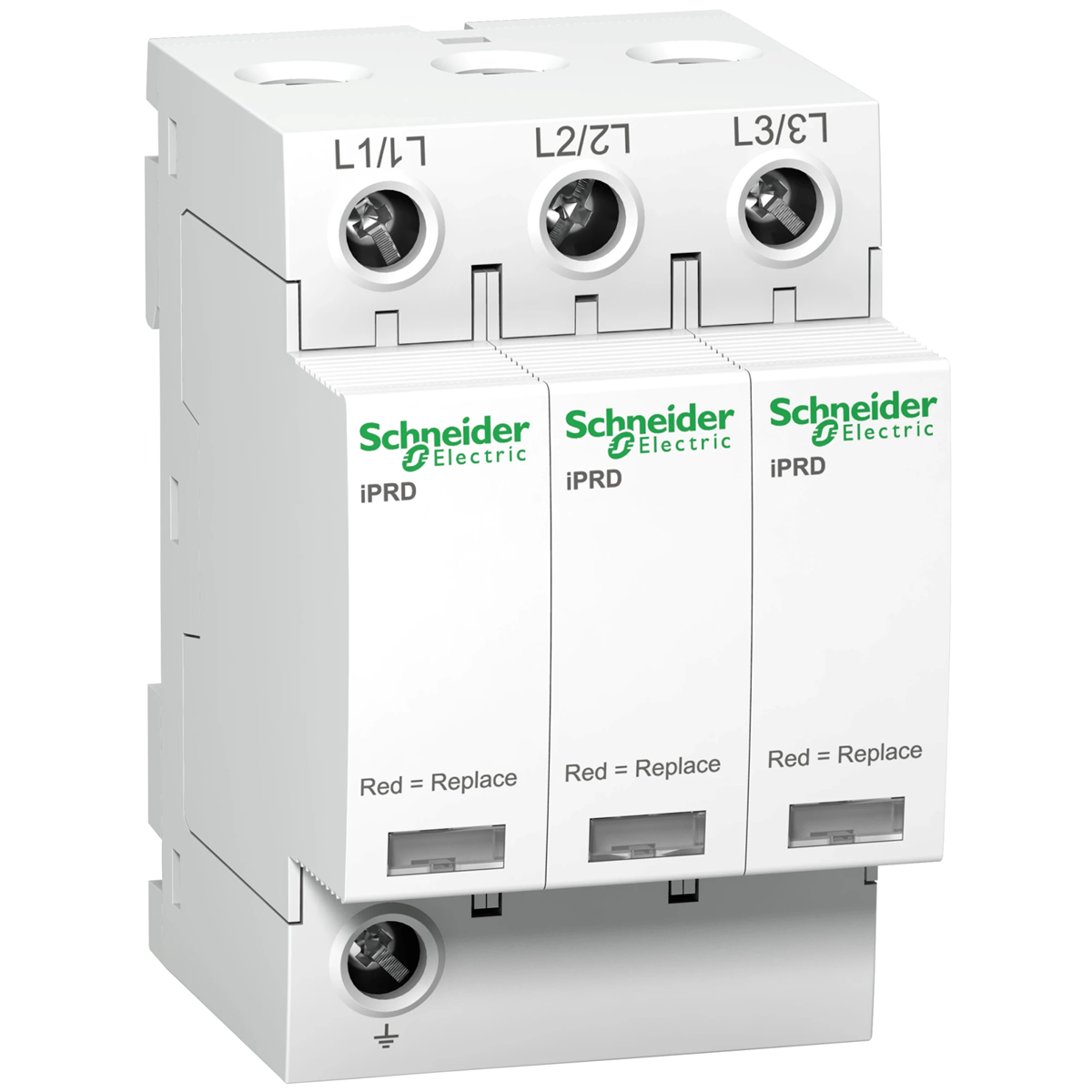

Surge arrester iPRD20-T2-3 3-pole Type2 20 kA A9L20300

local index:
AOC016SCHN
Catalog No:
A9L20300
EAN code:
3606480506475
Price:
101,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Surge arrester iPRD20-T2-3 3-pole Type2 20 kA

Technical data

  • Color
    White
  • PKWIU
    27.12.23.0

Other technical data

  • System configuration DC
    no
  • System configuration TN
    no
  • System configuration TN-C-S
    no
  • System configuration TT
    no
  • Number of conductors (without earthing)
    3
  • Nominal voltage AC
    400 V
  • Max. continuous voltage AC
    350 V
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Voltage protection level
    1.4 kV
  • Max. conductor cross section flexible (fine-strand)
    16 mm²
  • Voltage protection level N-PE
    1.4 kV
  • Integrated backup fuse
    no
  • Category type 2
    yes
  • System configuration IT
    no
  • System configuration TN-C
    yes
  • System configuration TN-S
    no
  • System configuration other
    no
  • Nominal discharge surge current (8/20)
    5 kA
  • Short-circuit breaking capacity (Isccr)
    50 kA
  • Max. discharge surge current (8/20)
    20 kA
  • Construction size
    3 modular spacing
  • Max. conductor cross section solid (solid, stranded)
    25 mm²
  • Voltage protection level L-N
    1.1 kV
  • With remote signalling contact
    no
  • Signalling at the device
    Optical
  • Degree of protection (IP)
    IP20
