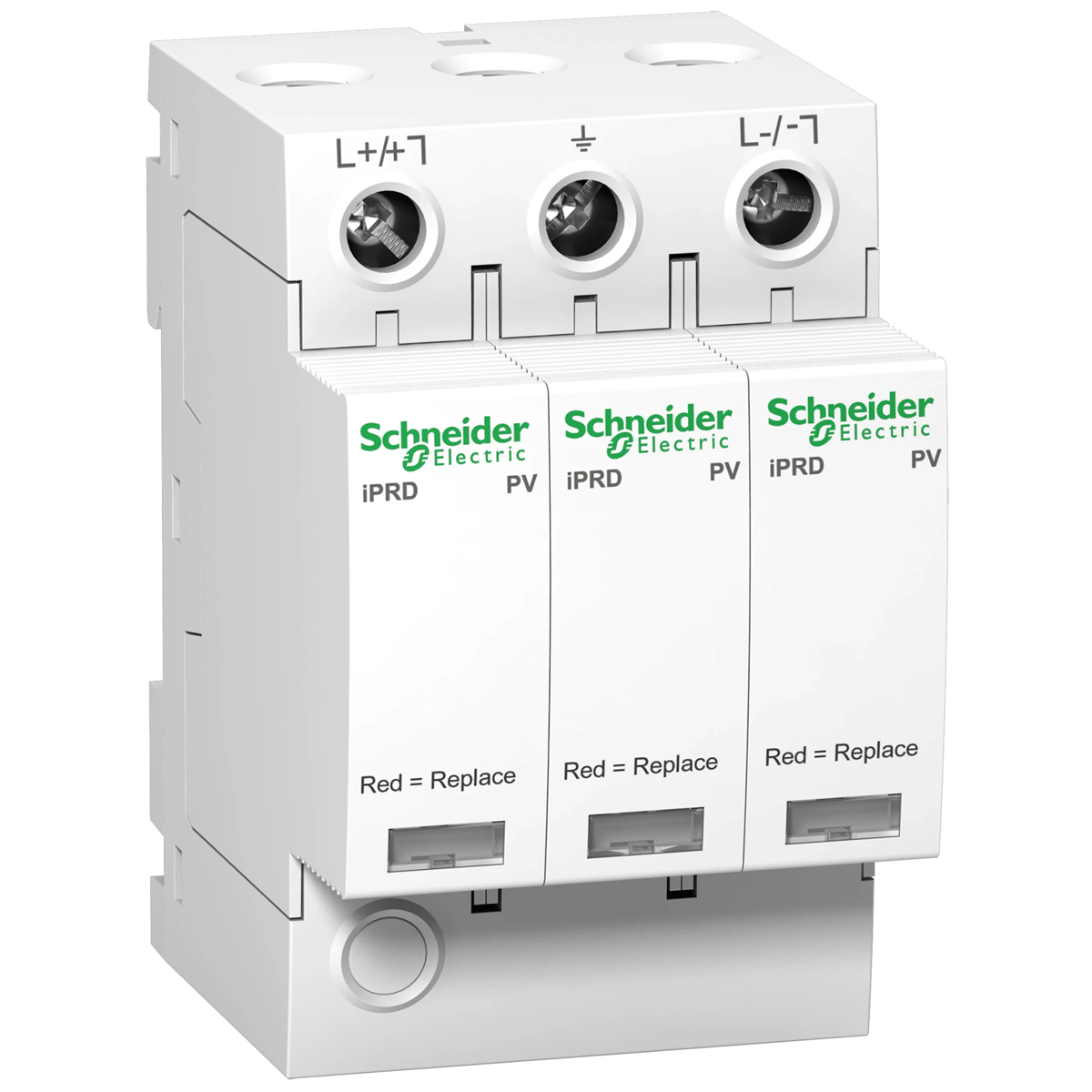

Surge arrester iPRD-DC40r-T2-3-1000 3-pole Type2 65 kA with contact A9L40281
local index:
AOC022SCHN
Catalog No:
A9L40281
EAN code:
3606480506673
Manufacturer:
SCHNEIDER ELECTRIC
Color: White
Price:
111,91 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Surge arrester iPRD-DC40r-T2-3-1000 3-pole Type2 65 kA with contact
Technical data
-
ColorWhite
-
PKWIU27.12.23.0
Other technical data
-
System configuration DCYes
-
System configuration TNNo
-
System configuration TN-C-SNo
-
System configuration TTNo
-
Number of conductors (without earthing)2
-
Nominal voltage DC1000 V
-
Max. continuous voltage DC1000 V
-
Construction size3 modular spacing
-
Voltage protection level3.9 kV
-
Max. conductor cross section flexible (fine-strand)35 mm²
-
Voltage protection level N-PE3.9 kV
-
Integrated backup fuseNo
-
Category type 2Yes
-
System configuration ITNo
-
System configuration TN-CNo
-
System configuration TN-SNo
-
System configuration otherNo
-
Nominal discharge surge current (8/20)15 kA
-
Max. discharge surge current (8/20)40 kA
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Max. PV-voltage1000 V
-
Max. conductor cross section solid (solid, stranded)35 mm²
-
Voltage protection level L-N3.9 kV
-
With remote signalling contactYes
-
Signalling at the deviceOptical
-
Degree of protection (IP)IP20
