Lightning protection
Protectors

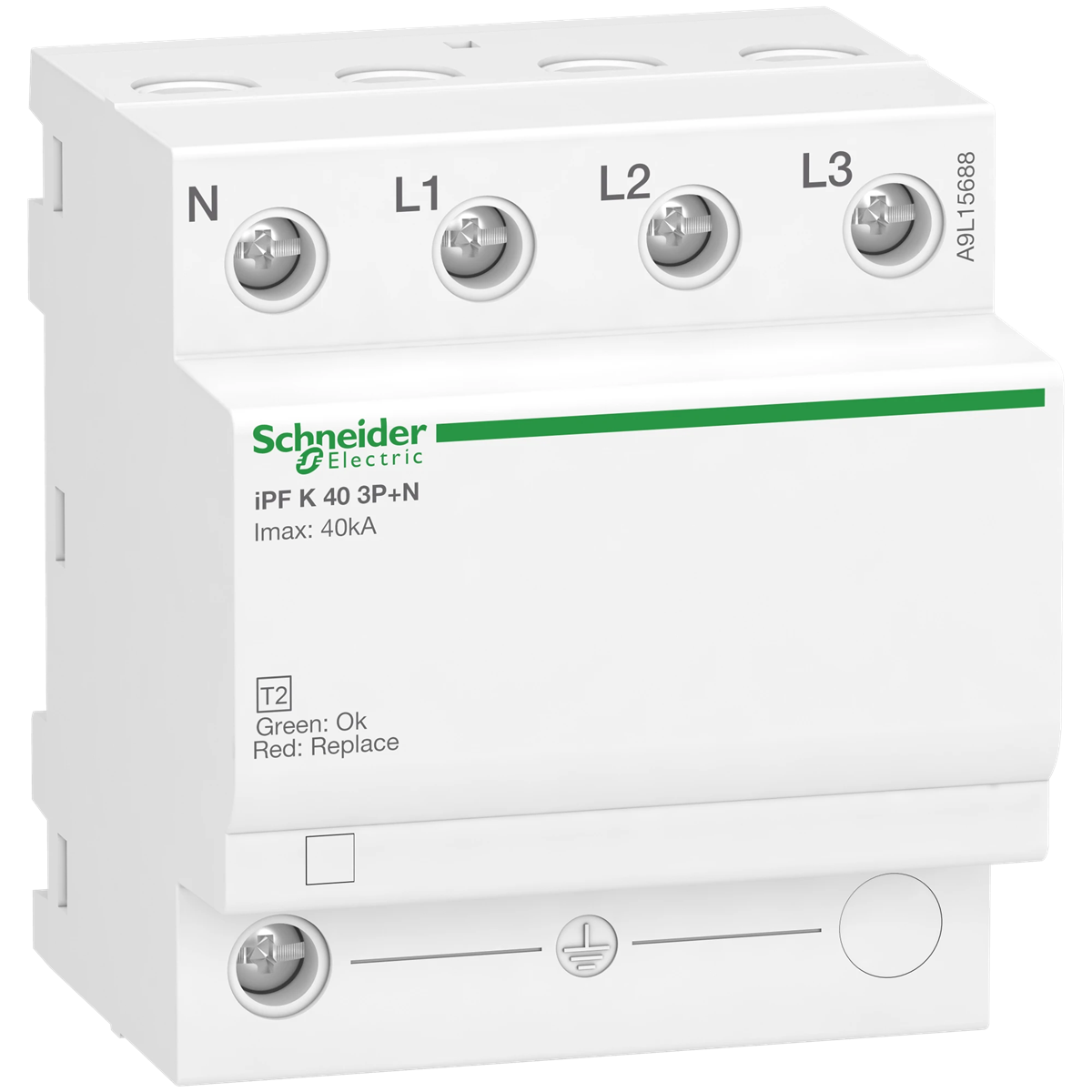

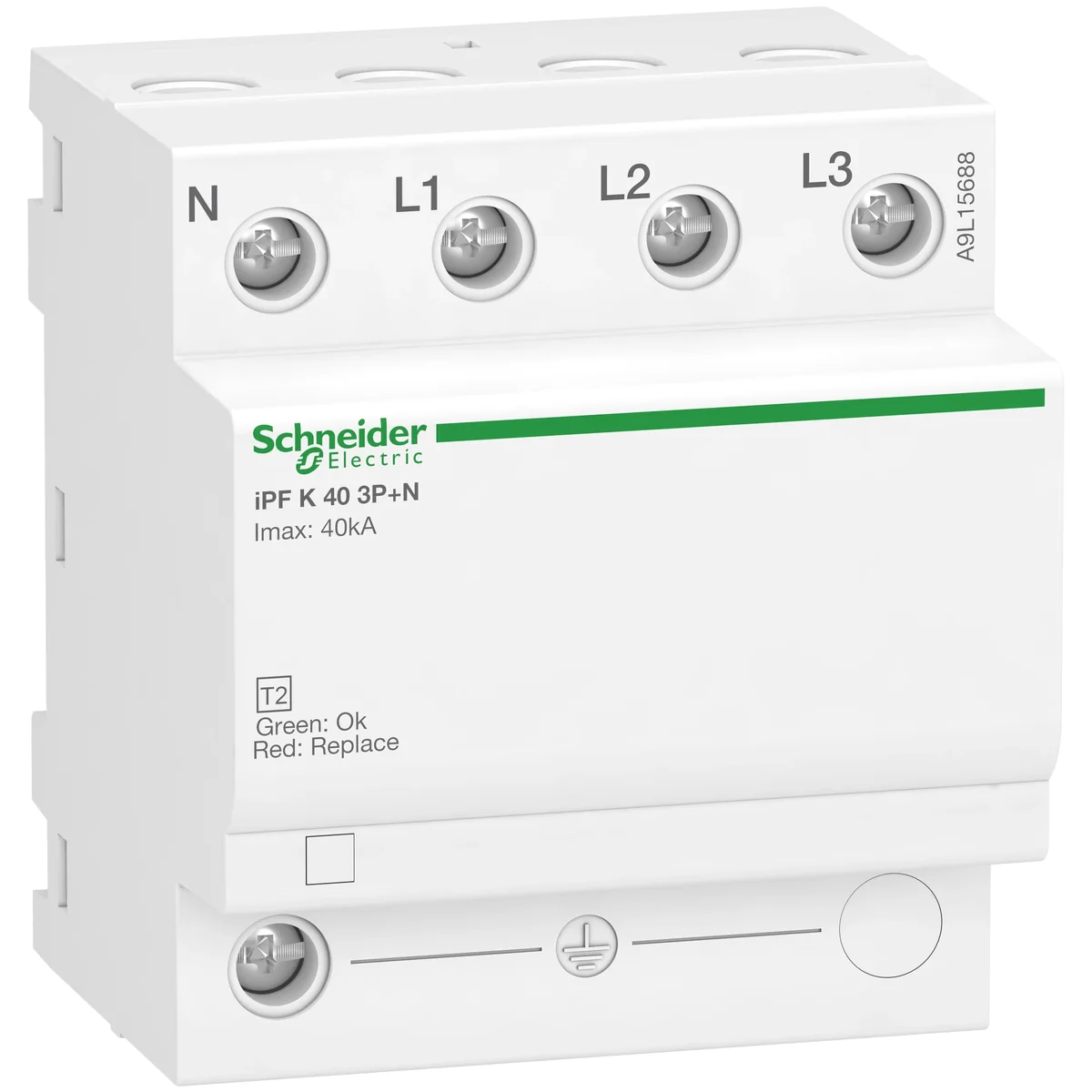

Surge arrester iPFK40-T2-3N 3+1-pole Type2 40 kA A9L15688
local index:
AOC005SCHN
Catalog No:
A9L15688
EAN code:
3606480089879
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Color:
White
See full description
Price:
88,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Surge arrester iPFK40-T2-3N 3+1-pole Type2 40 kA
Technical data
Color
White
PKWIU
27.12.23.0
Other technical data
System configuration DC
No
System configuration TN
No
System configuration TN-C-S
No
System configuration TT
Yes
Number of conductors (without earthing)
3
Nominal voltage AC
400 V
Max. continuous voltage AC
340 V
Mounting method
DIN rail (top hat rail) 35 mm
Voltage protection level
1.5 kV
Max. conductor cross section flexible (fine-strand)
16 mm²
Voltage protection level N-PE
1.5 kV
Integrated backup fuse
No
Category type 2
Yes
System configuration IT
No
System configuration TN-C
No
System configuration TN-S
Yes
System configuration other
No
Nominal discharge surge current (8/20)
15 kA
Short-circuit breaking capacity (Isccr)
25 kA
Max. discharge surge current (8/20)
40 kA
Construction size
4 modular spacing
Max. conductor cross section solid (solid, stranded)
25 mm²
Voltage protection level L-N
1.5 kV
With remote signalling contact
No
Signalling at the device
Optical
Degree of protection (IP)
IP20
Files to download
Internal PEP ENVPEP1308014_V3-EN_1.pdf
EoLI_ENVEOLI1308014_V3_2.pdf
FD16041406B_iPF_iPFK.pdf
