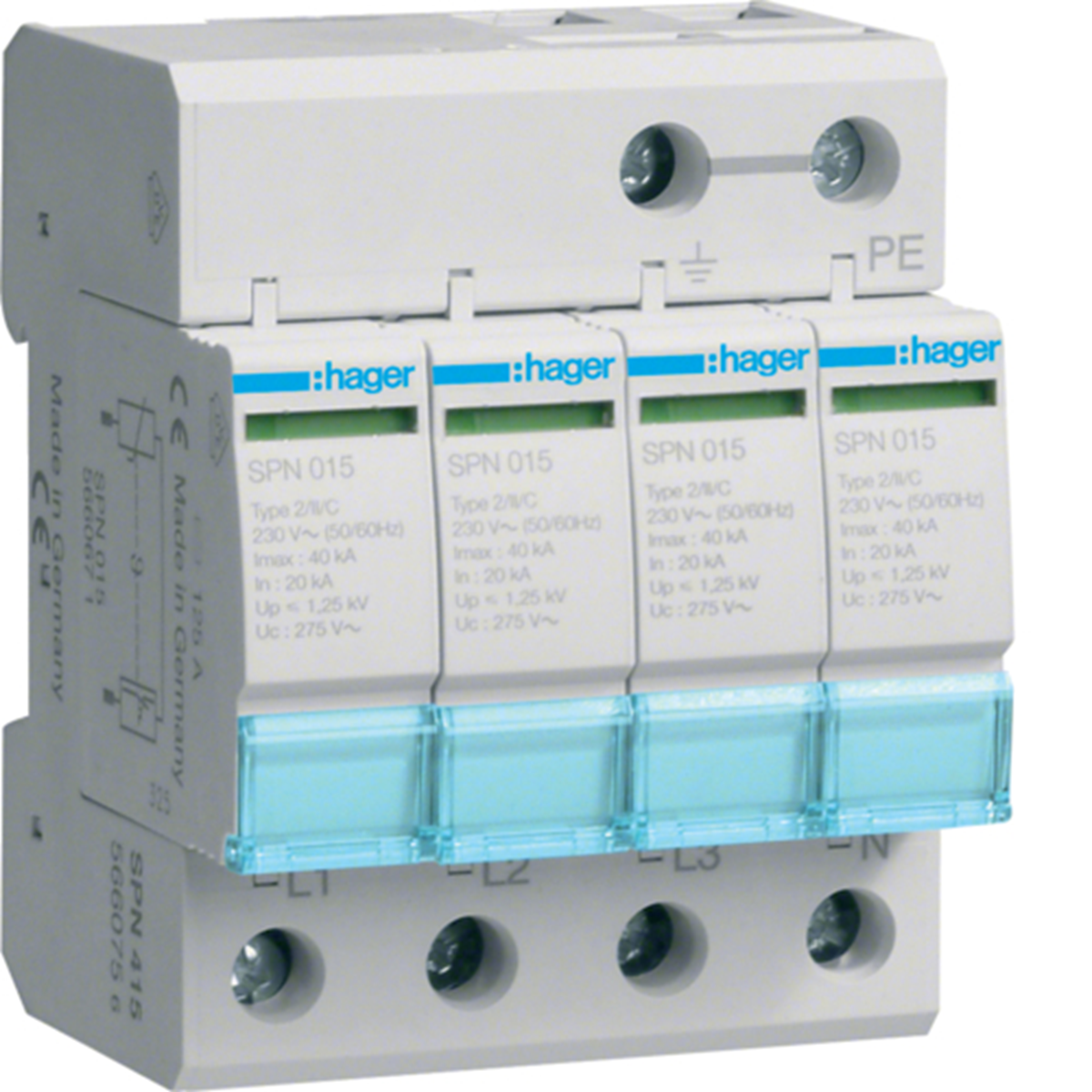

Surge arrester C four-pole TN-S network SPN415

local index:
AOG010HAGE
Catalog No:
SPN415
EAN code:
3250615660756
Manufacturer: HAGER
Number of modules: 4
Number of poles: 4
Maximum discharge current [kA]: 40
Price:
214,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Surge arrester C four-pole TN-S network

Technical data

  • Number of modules
    4
  • Maximum discharge current [kA]
    40
  • Voltage protection level [kV]
    1.25
  • Rated discharge current [kA]
    20
  • PKWIU
    27.12.23.0
  • Number of poles
    4
  • Rated voltage [V]
    280
  • Width [mm]
    72
  • Number of modules
    4

Other technical data

  • System configuration other
    Yes
  • Nominal voltage AC
    400 V
  • Max. discharge surge current (8/20)
    40 kA
  • Max. PV-voltage
    0 V
  • Voltage protection level L-N
    1.5 kV
  • With remote signalling contact
    No
  • Category type 2
    Yes
  • Nominal discharge surge current (8/20)
    20 kA
  • Max. continuous voltage AC
    275 V
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Voltage protection level
    1.5 kV
  • Voltage protection level N-PE
    1.5 kV
  • Signalling at the device
    Optical
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Pakiet Paczka Paleta
Quantity 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,425 15,630 398,120
Width (m) 0,080 0,310 0,800
Length (m) 0,075 0,210 1,210
Depth (m) 0,095 0,350 1,200
