Surge arrester C 1P 20kA 002440393
local index:
AOG006ETIP
Catalog No:
002440393
EAN code:
3838895772705
Manufacturer:
ETI POLAM
Number of poles: 1
Price:
26,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

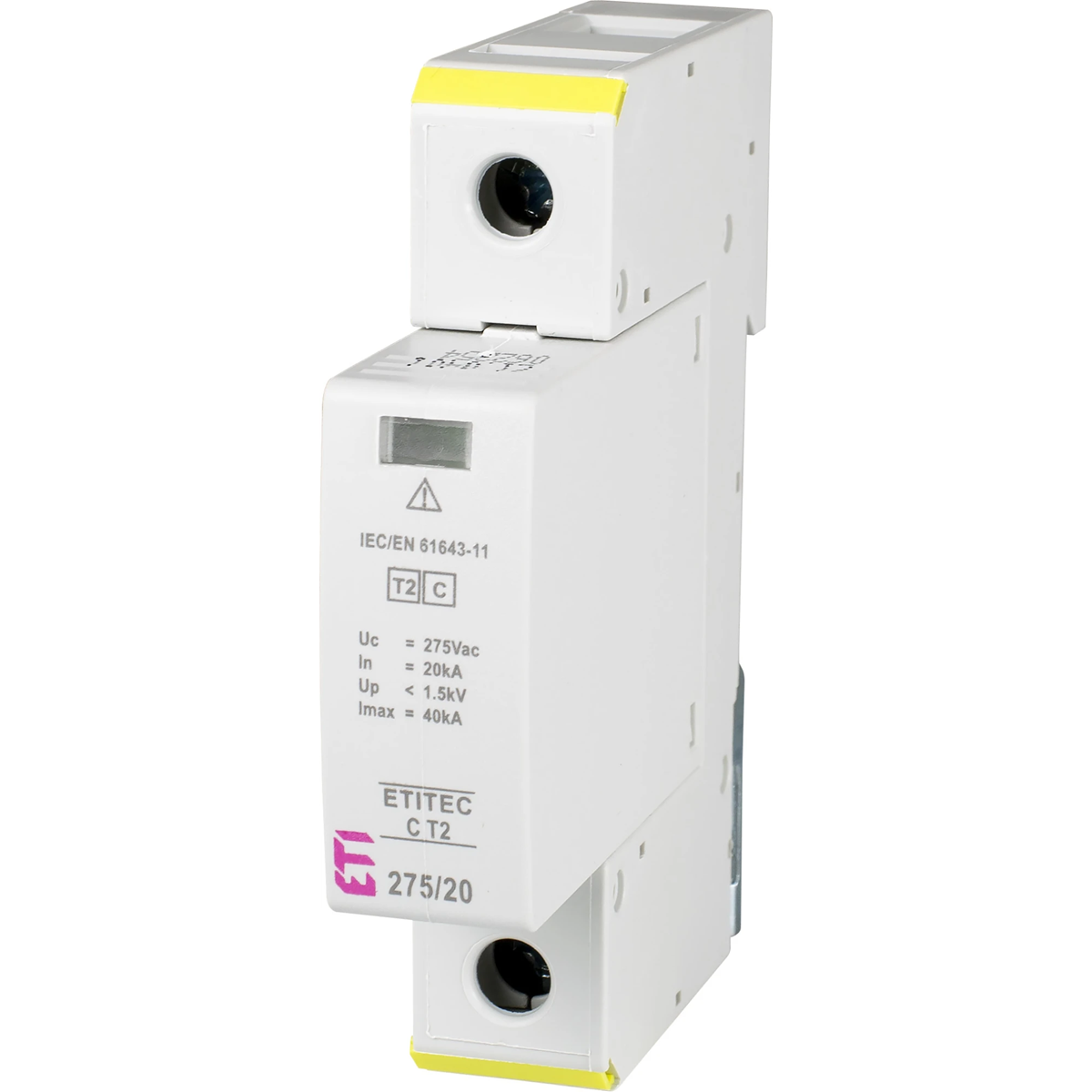

Surge arrester C 1P 20kA
Technical data
-
Number of poles1
-
PKWIU27.12.23.0
Other technical data
-
System configuration TNYes
-
Nominal discharge surge current (8/20)20 kA
-
Max. continuous voltage AC275 V
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Max. conductor cross section solid (solid, stranded)35 mm²
-
Signalling at the deviceOptical
-
System configuration TTYes
-
Nominal voltage AC230 V
-
Voltage protection level1.5 kV
-
Construction size1 modular spacing
-
Max. conductor cross section flexible (fine-strand)25 mm²
-
Category type 2Yes
Manufacturer details
-
ManufacturerETI-POLAM Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18
-
E-mail
-
Tax identification number5681370113
-
GLN5909000467408
