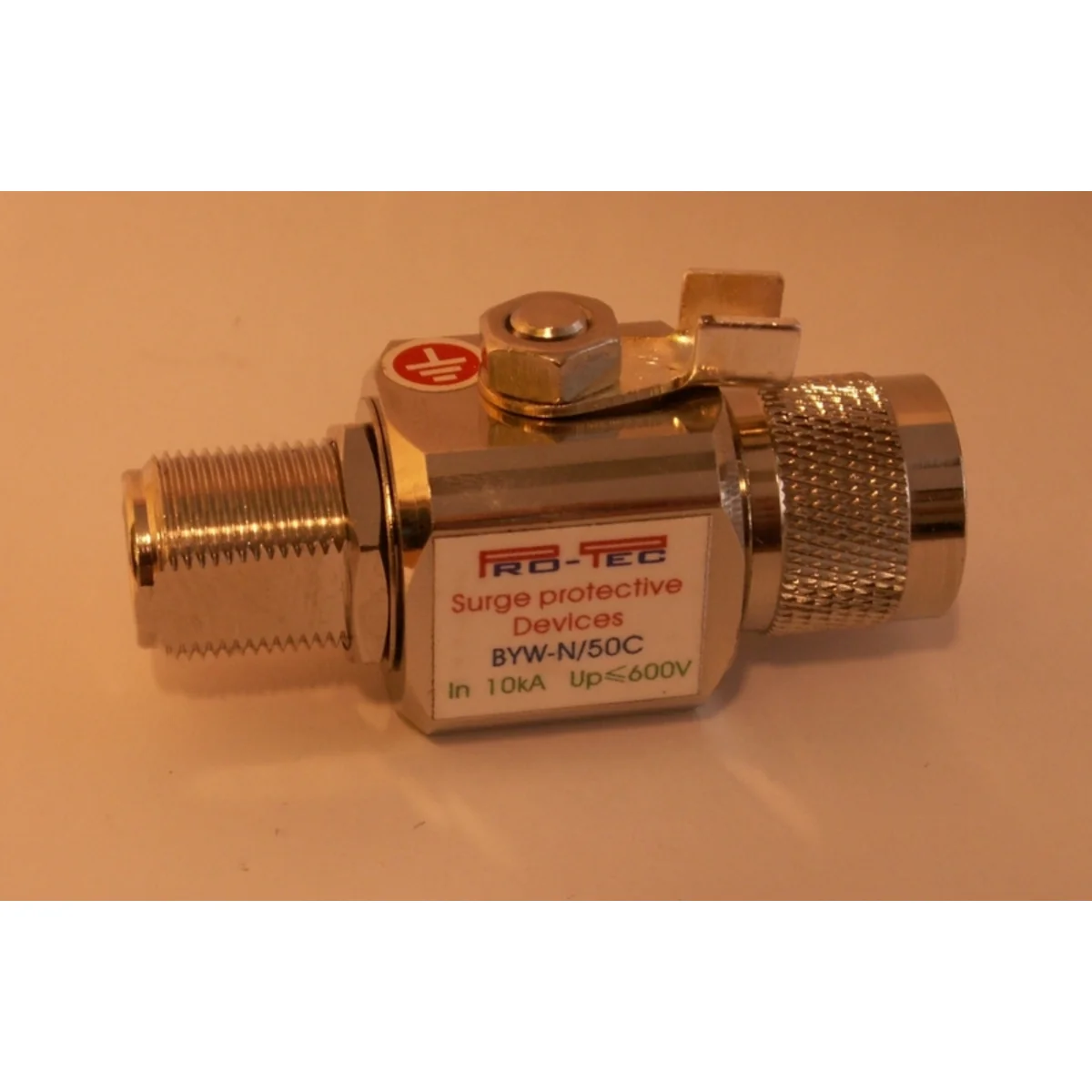

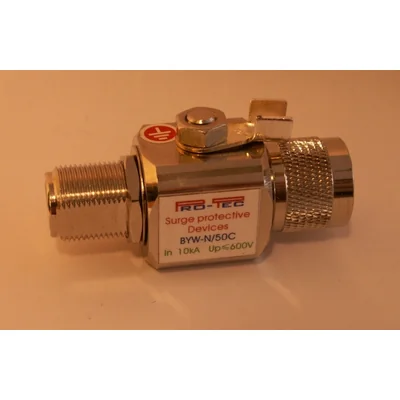

Surge arrester BYW-N/50C 3250008

local index:
AOC032PROT
Catalog No:
3250008
EAN code:
5907589160307
Manufacturer: PRO-TEC
Impedance [Ω]: 50
Reduced voltage [V]: <600
DC rated voltage [V]: 68
Price:
48,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Combined surge arresters for protection of analog telephone lines, digital telephone lines (ISDN), and Ethernet 10(0)Mbps computer networks. Inputs and outputs equipped with RJ type connectors enable simple and easy installation of the arrester. The grounding conductor should be connected to the elements connected to the PE conductor. Most often, such an element is the metal housing of the device, or a grounded patch cabinet. One arrester is used to protect one line. The limiter housing is made of aluminum profile.

Technical data

  • Impedance [Ω]
    50
  • DC rated voltage [V]
    68
  • Frequency [MHz]
    0-2000
  • Reduced voltage [V]
    <600
  • connection
    N/50
  • AC rated voltage [V]
    120
