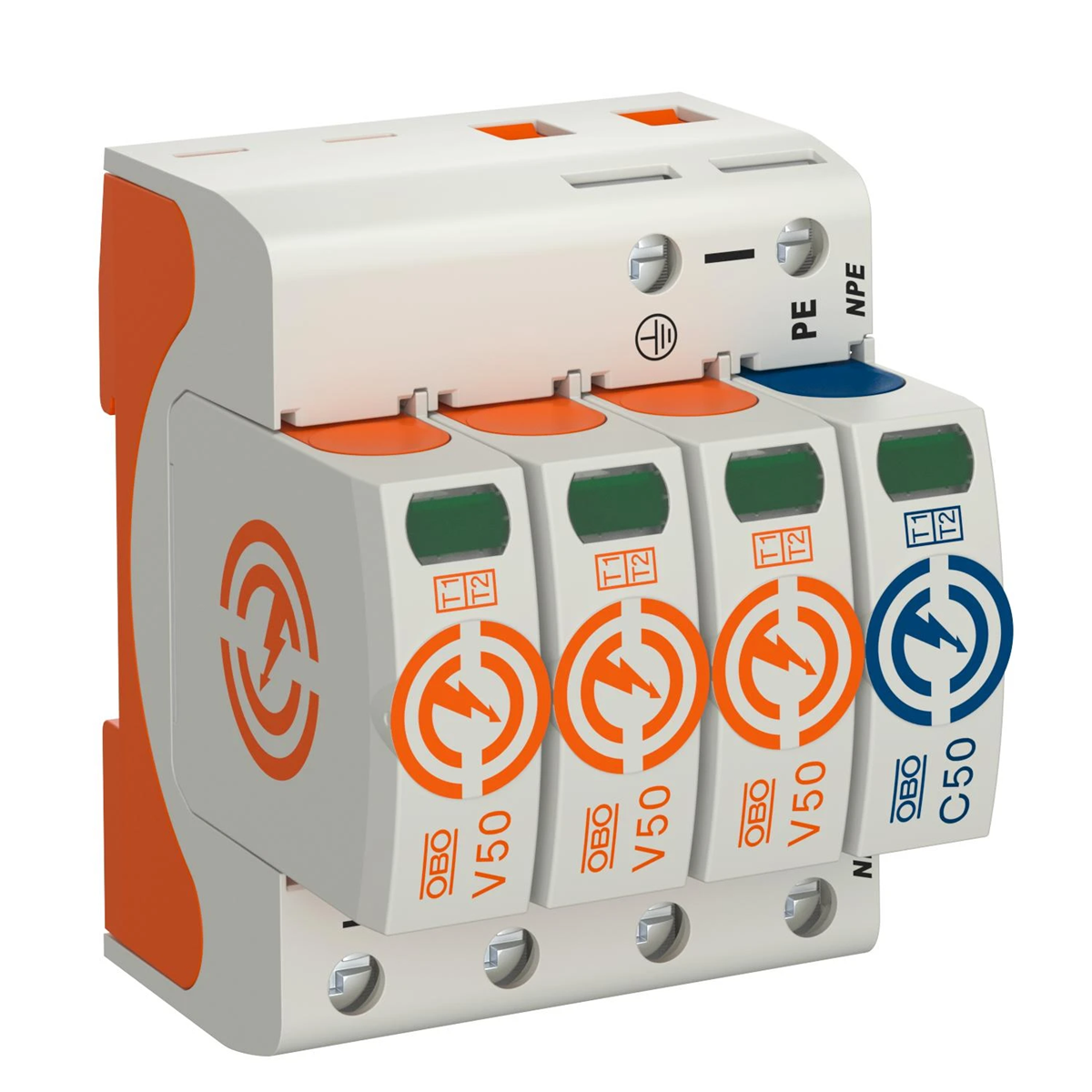

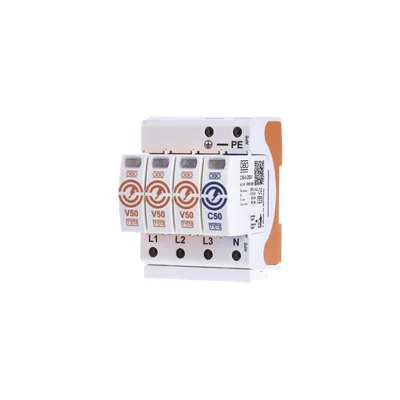

Surge arrester B+C 3P+N 12.5kA 280V V50-3+NPE-280 5093526
local index:
AOC023OBOB
Catalog number:
5093526
EAN code:
4012196159697
Bestsellers
Price:
539,97 zł
gross / pcs.
(including VAT 23%)
The lowest price from 30 days before the reduction:
539,97 zł gross
Price history for this product
1. 539,97 zł gross / pcs.
2. The lowest price from 30 days before the reduction:
539,97 zł
3. Manufacturer's price:
1 890,24 zł
1. How much does this product cost today
2. The lowest price from 30 days before the reduction
3. Manufacturer's price
Manufacturer's price:
1 890,24 zł gross
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
A surge arrester is a device designed to protect electrical apparatus against transient overvoltages, limiting the duration and frequency of the follow current.
Technical data
-
CharacteristicB+C
-
Number of poles4
-
Surge current [kA]12.5
-
PKWIU27.12.23.0
-
Protection class1+2
-
Rated voltage [V]280
-
Size4 modules
Other technical data
-
System configuration TNYes
-
System configuration TN-C-SYes
-
System configuration TTYes
-
Lightning impulse current (10/350 µs)12.5 kA
-
Nominal voltage AC230 V
-
Voltage protection level L-N1.3 kV
-
Follow current extinguishing capability0.1 kA
-
Construction size4 modular spacing
-
Max. conductor cross section flexible (fine-strand)35 mm²
-
Signalling at the deviceOptical
-
Degree of protection (IP)IP20
-
System configuration TN-CNo
-
System configuration TN-SYes
-
Number of poles4
-
Max. continuous voltage AC280 V
-
Voltage protection level1.3 kV
-
Voltage protection level N-PE1.5 kV
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Max. conductor cross section solid (solid, stranded)35 mm²
-
Remote signallingNo
-
Integrated backup fuseNo
Manufacturer details
-
ManufacturerOBO Bettermann Holding GmbH & Co. KG
-
Address58710 Menden Hüingser Ring 52 Niemcy
-
E-mail
Bulk packaging
| A kind of package | Skrzynia | Karton | Paleta |
| Quantity | 1 pcs. | 18 pcs. | 864 pcs. |
| Weight (kg) | 0,616 | 11,282 | 564,036 |
| Volume (m3) | 0,001 | 0,014 | 0,912 |
| Width (m) | 0,075 | 0,185 | 0,800 |
| Length (m) | 0,102 | 0,295 | 1,200 |
| Depth (m) | 0,082 | 0,249 | 0,950 |
