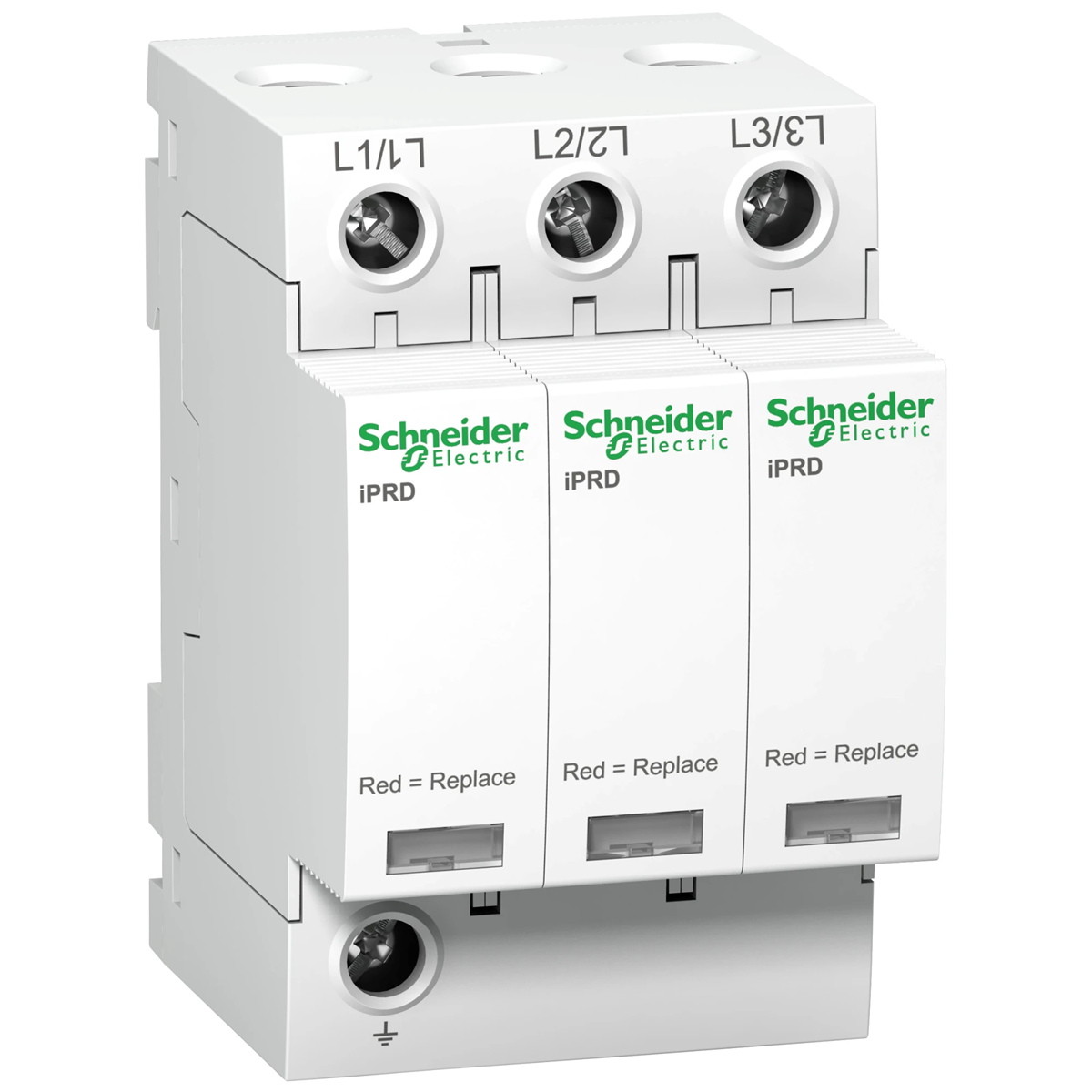

Surge arrester Acti9 iPRD65r-T2-3 3-pole Typ2 65 kA with contact A9L65301
local index:
AOC012SCHN
Catalog No:
A9L65301
EAN code:
3606480504853
Manufacturer:
SCHNEIDER ELECTRIC
Color: White
Price:
165,51 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Surge arrester Acti9 iPRD65r-T2-3 3-pole Typ2 65 kA with contact
Technical data
-
ColorWhite
-
PKWIU27.12.23.0
Other technical data
-
System configuration DCNo
-
System configuration TNNo
-
System configuration TN-C-SNo
-
System configuration TTNo
-
Number of conductors (without earthing)3
-
Nominal voltage AC350 V
-
Max. continuous voltage AC350 V
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Voltage protection level1.5 kV
-
Max. conductor cross section flexible (fine-strand)35 mm²
-
Voltage protection level N-PE1.5 kV
-
Integrated backup fuseNo
-
Category type 2Yes
-
System configuration ITNo
-
System configuration TN-CYes
-
System configuration TN-SNo
-
System configuration otherNo
-
Nominal discharge surge current (8/20)20 kA
-
Short-circuit breaking capacity (Isccr)50 kA
-
Max. discharge surge current (8/20)65 kA
-
Construction size4 modular spacing
-
Max. conductor cross section solid (solid, stranded)35 mm²
-
Voltage protection level L-N1.5 kV
-
With remote signalling contactYes
-
Signalling at the deviceOptical
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerSchneider Electric Polska Sp. z o.o.
-
Address02-673 Warszawa ul. Konstruktorska 12
-
Phone number
-
Tax identification number5220011965
-
GLN5900009931556
