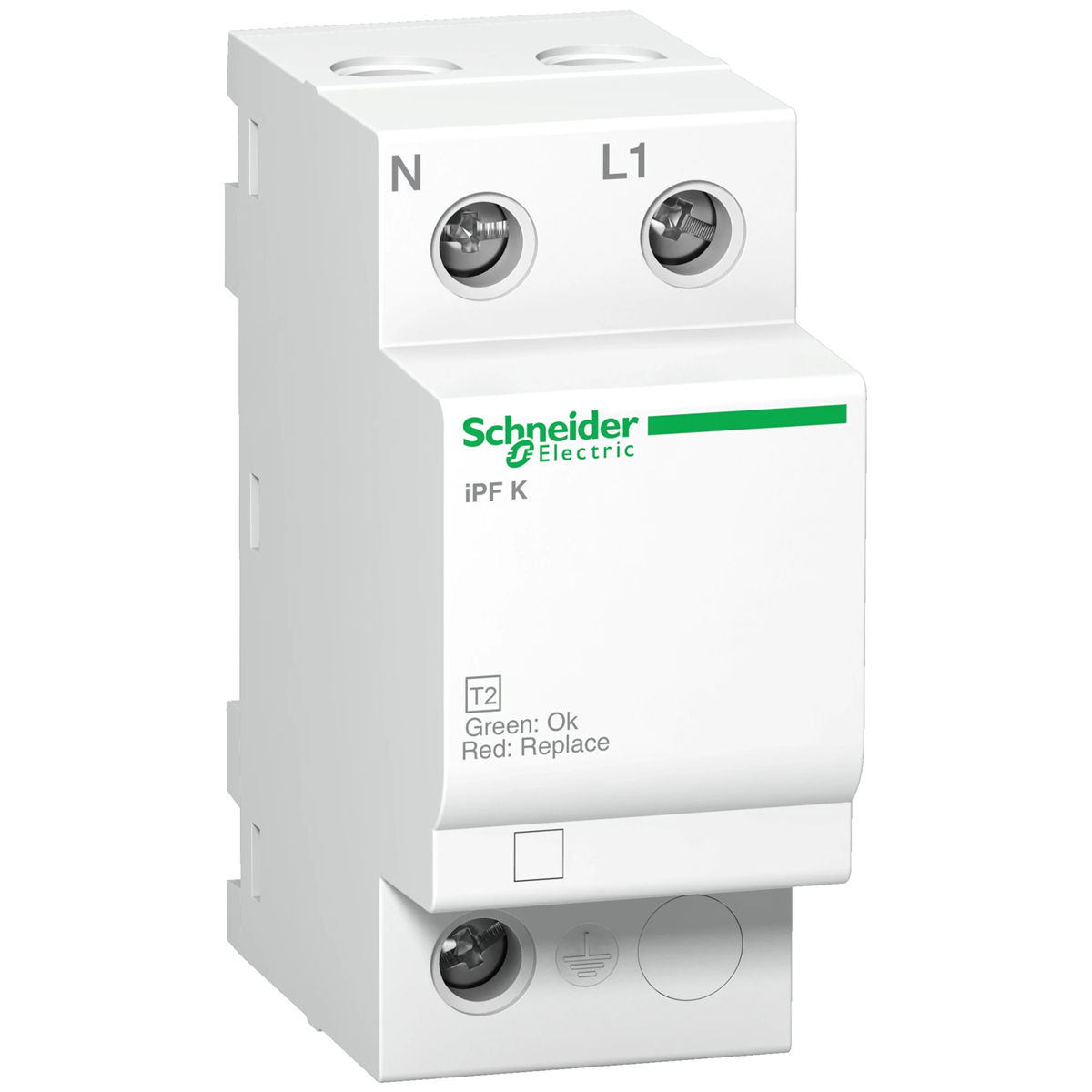

Surge arrester Acti9 iPFK20-T2-1N 1+1-pole Type2 20 kA A9L15692
local index:
AOC014SCHN
Catalog No:
A9L15692
EAN code:
3606480089916
Manufacturer:
SCHNEIDER ELECTRIC
Color: White
Price:
47,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Surge arrester Acti9 iPFK20-T2-1N 1+1-pole Type2 20 kA
Technical data
-
ColorWhite
-
PKWIU27.12.23.0
Other technical data
-
System configuration DCNo
-
System configuration TNNo
-
System configuration TN-C-SNo
-
System configuration TTYes
-
Number of conductors (without earthing)1
-
Nominal voltage AC230 V
-
Max. continuous voltage AC340 V
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Voltage protection level1.1 kV
-
Max. conductor cross section flexible (fine-strand)16 mm²
-
Voltage protection level N-PE1.5 kV
-
Integrated backup fuseNo
-
Category type 2Yes
-
System configuration ITNo
-
System configuration TN-CNo
-
System configuration TN-SYes
-
System configuration otherNo
-
Nominal discharge surge current (8/20)5 kA
-
Short-circuit breaking capacity (Isccr)25 kA
-
Max. discharge surge current (8/20)20 kA
-
Construction size2 modular spacing
-
Max. conductor cross section solid (solid, stranded)16 mm²
-
Voltage protection level L-N1.1 kV
-
With remote signalling contactNo
-
Signalling at the deviceOptical
-
Degree of protection (IP)IP20
