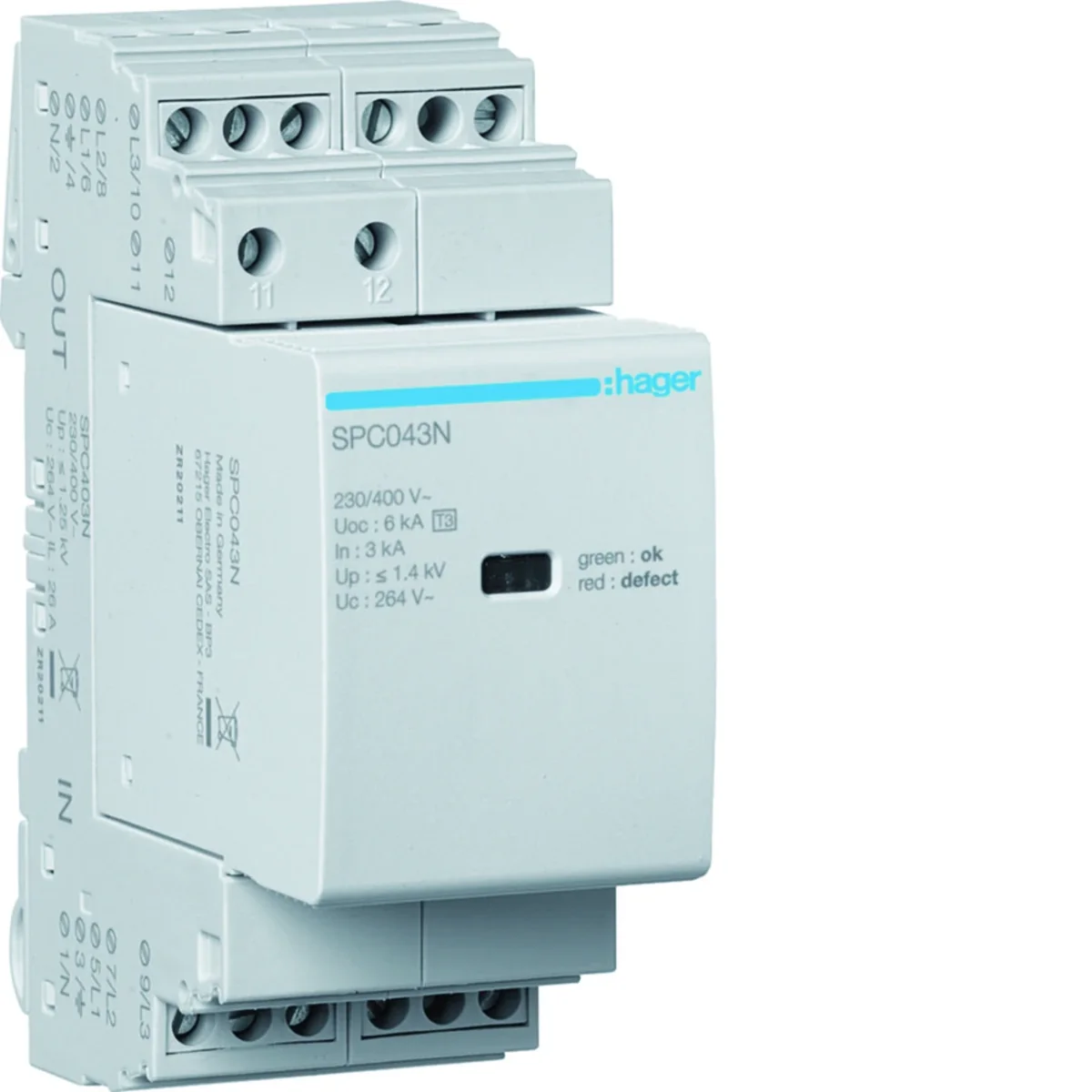

SPD Varistor surge arrester T3 4P TN-S 3kA 1.4kV SPC403N
local index:
AOC065HAGE
Catalog No:
SPC403N
EAN code:
3250615514943
Manufacturer:
HAGER
Family: SPD
Price:
462,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
SPD Varistor surge arrester T3 4P TN-S 3kA 1.4kV
Technical data
-
FamilySPD
Other technical data
-
Nominal voltage AC230 V
-
Max. continuous voltage AC264 V
-
Nominal discharge surge current (8/20) (L-N)9 kA
-
Total discharge current (8/20) (L1+L2+L3+N-PE)9 kA
-
Voltage protection level L-N1.25 kV
-
Max. overcurrent protection device, parallel connection (fuse)16 A
-
Number of poles4
-
Max. conductor cross section solid (solid, stranded)4 mm²
-
With remote signalling contactNo
-
Category type 3Yes
-
Nominal voltage DC230 V
-
Nominal load current26 A
-
Total discharge current (8/20) (L+N-PE)9 kA
-
Voltage protection level1.4 kV
-
Voltage protection level L-PE/N-PE1.4 kV
-
Max. overcurrent protection device, series connection (fuse)25 A
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Max. conductor cross section flexible (fine-strand)2.5 mm²
-
Signalling at the deviceOptical
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 42 pcs. | 1008 pcs. |
| Weight (kg) | 0,154 | 0,155 | 6,990 | 190,760 |
| Width (m) | 0,035 | 0,085 | 0,315 | 0,800 |
| Length (m) | 0,090 | 0,050 | 0,215 | 1,010 |
| Depth (m) | 0,075 | 0,115 | 0,365 | 1,200 |
