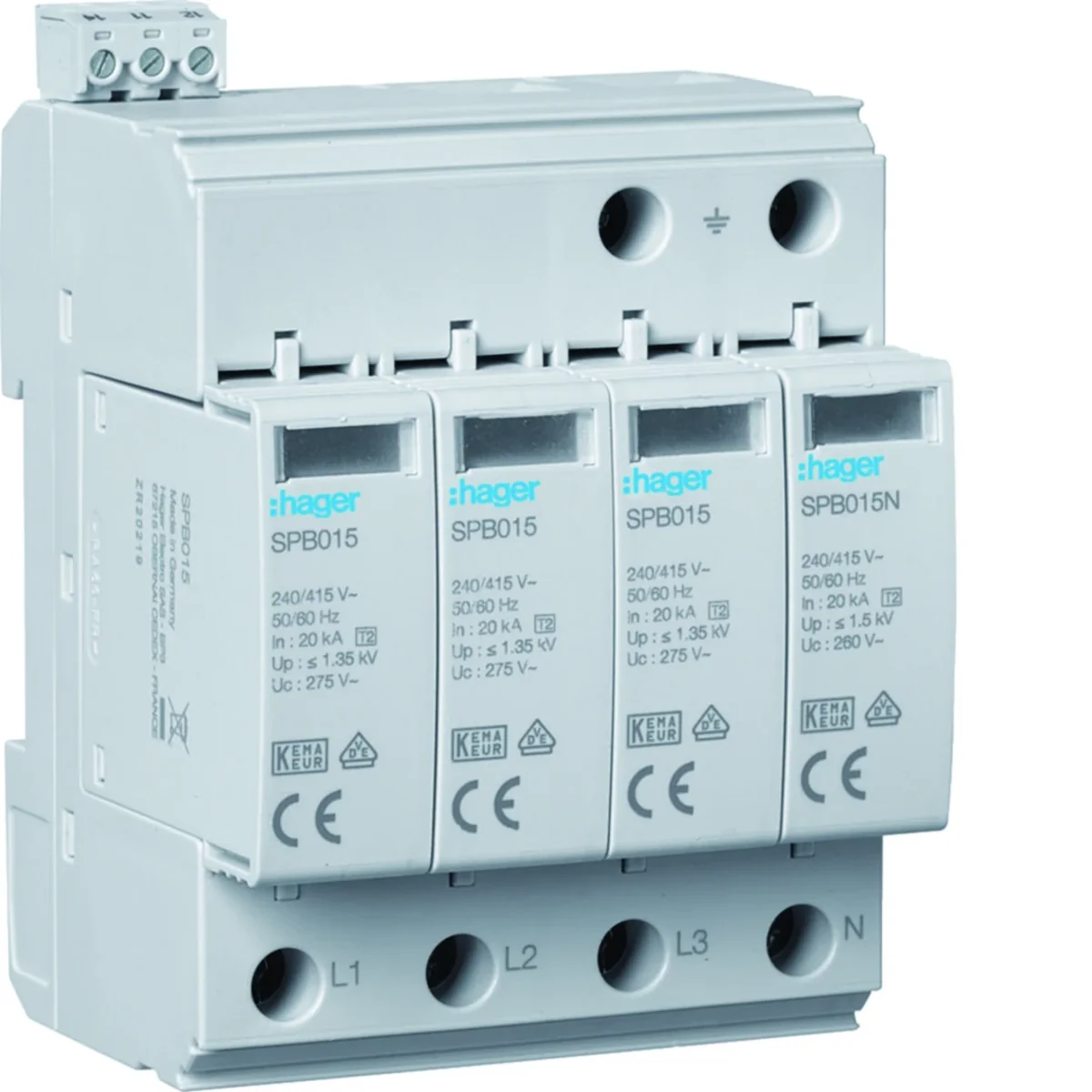

SPD Varistor surge arrester T2 4P 3+1 TN-S/TT 20kA 1.35kV SPB415
local index:
AOC050HAGE
Catalog No:
SPB415
EAN code:
3250615514905
Manufacturer:
HAGER
Family: SPD
Price:
223,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
SPD Varistor surge arrester T2 4P 3+1 TN-S/TT 20kA 1.35kV
Technical data
-
FamilySPD
-
PKWIU27.12.23.0
Other technical data
-
System configuration TNYes
-
System configuration TN-C-SYes
-
System configuration TTYes
-
Number of conductors (without earthing)4
-
Max. discharge surge current (8/20)40 kA
-
Max. continuous voltage AC275 V
-
Voltage protection level1.35 kV
-
Voltage protection level N-PE1.6 kV
-
Integrated backup fuseNo
-
Construction size4 modular spacing
-
Max. conductor cross section flexible (fine-strand)25 mm²
-
Signalling at the deviceOptical
-
Degree of protection (IP)IP20
-
System configuration TN-CNo
-
System configuration TN-SYes
-
System configuration otherNo
-
Nominal discharge surge current (8/20)20 kA
-
Nominal voltage AC400 V
-
Max. PV-voltage0 V
-
Voltage protection level L-N1.35 kV
-
Short-circuit breaking capacity (Isccr)25 kA
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Max. conductor cross section solid (solid, stranded)35 mm²
-
With remote signalling contactYes
-
Category type 2Yes
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 22 pcs. | 528 pcs. |
| Weight (kg) | 0,376 | 0,400 | 9,245 | 244,880 |
| Width (m) | 0,071 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,099 | 0,085 | 0,210 | 1,010 |
| Depth (m) | 0,066 | 0,115 | 0,360 | 1,200 |
