el12 Lightning protection Protectors
el12 sale El12 and HAGER

SPD Varistor surge arrester T1+T2 MOV 3P TN-C 37.5kA 50kA 1.2kV SPA930

local index:
AOC052HAGE
Catalog No:
SPA930
EAN code:
3250615515179

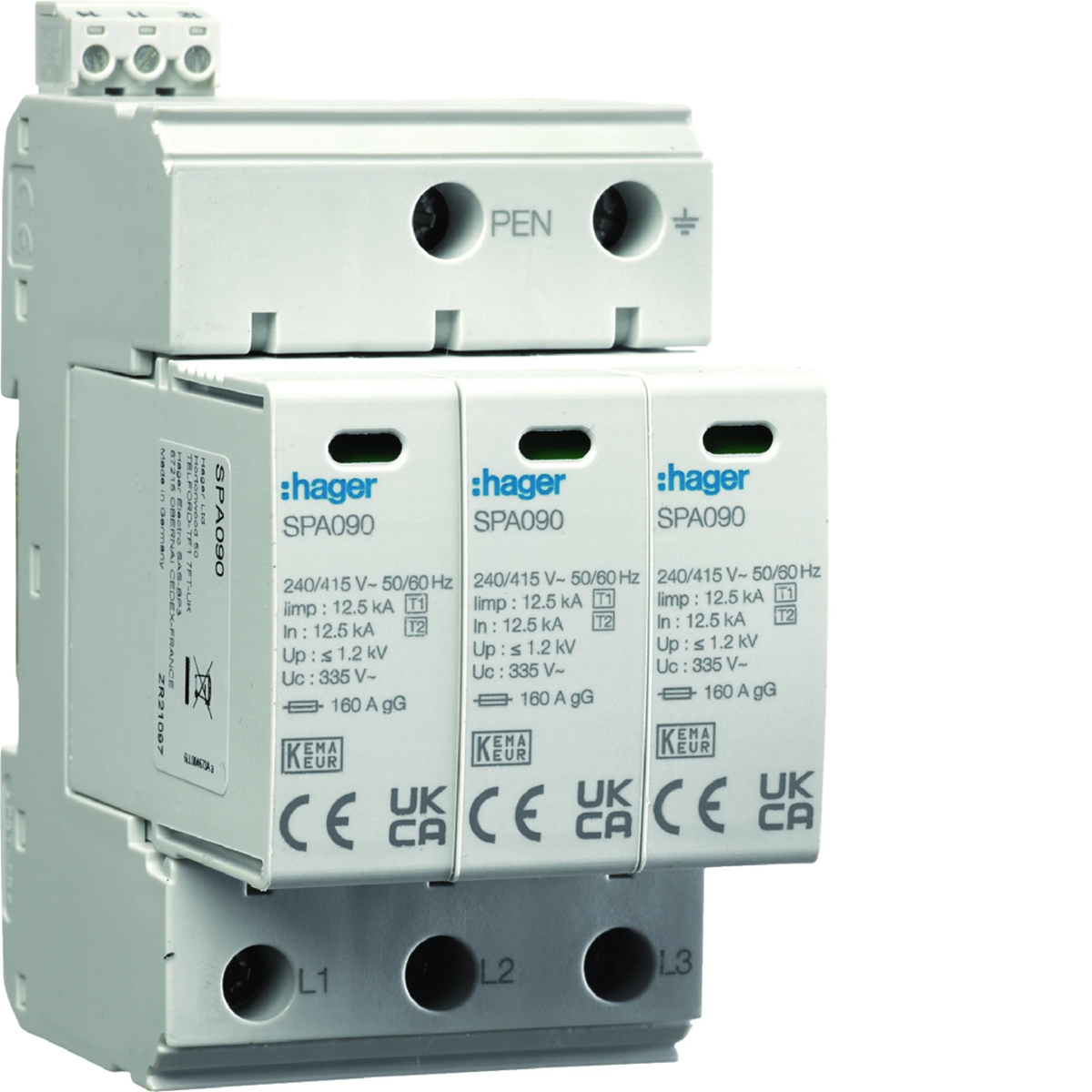

SPD Varistor surge arrester T1+T2 MOV 3P TN-C 37.5kA 50kA 1.2kV
SPD Varistor surge arrester T1+T2 MOV 3P TN-C 37.5kA 50kA 1.2kV

Click on the photo to enlarge

Manufacturer: HAGER
Family: SPD
See full description
Price:
212,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

SPD Varistor surge arrester T1+T2 MOV 3P TN-C 37.5kA 50kA 1.2kV

Technical data

  • Family
    SPD
  • PKWIU
    27.12.23.0

Other technical data

  • System configuration DC
    No
  • System configuration TN
    No
  • System configuration TN-C-S
    No
  • System configuration TT
    No
  • Number of poles
    3
  • Max. continuous voltage AC
    335 V
  • Voltage protection level
    1.2 kV
  • Voltage protection level L-PE
    1.7 kV
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Max. conductor cross section solid (solid, stranded)
    35 mm²
  • Remote signalling
    Yes
  • Test class
    Type 1 + 2
  • Degree of protection (IP)
    IP20
  • System configuration IT
    No
  • System configuration TN-C
    Yes
  • System configuration TN-S
    No
  • System configuration other
    No
  • Lightning impulse current (10/350 µs)
    12.5 kA
  • Nominal voltage AC
    415 V
  • Voltage protection level L-N
    1.2 kV
  • Voltage protection level N-PE
    1.7 kV
  • Construction size
    3 modular spacing
  • Max. conductor cross section flexible (fine-strand)
    25 mm²
  • Signalling at the device
    Optical
  • Integrated backup fuse
    No

Manufacturer details

  • Manufacturer
    HAGER POLO Sp. z o. o.
  • Address
    43-100 Tychy Fabryczna 10
  • Tax identification number
    6460015532

Bulk packaging

A kind of package Karton Pakiet Paleta Karton Pakiet Paleta
Quantity 1 pcs. 27 pcs. 648 pcs. 1 pcs. 27 pcs. 648 pcs.
Weight (kg) 0,550 15,340 391,160 0,550 15,340 391,160
Width (m) 0,085 0,315 0,800 0,085 0,315 0,800
Length (m) 0,065 0,215 1,010 0,065 0,215 1,010
Depth (m) 0,110 0,365 1,200 0,110 0,365 1,200

Files to download

SPA930.pdf
