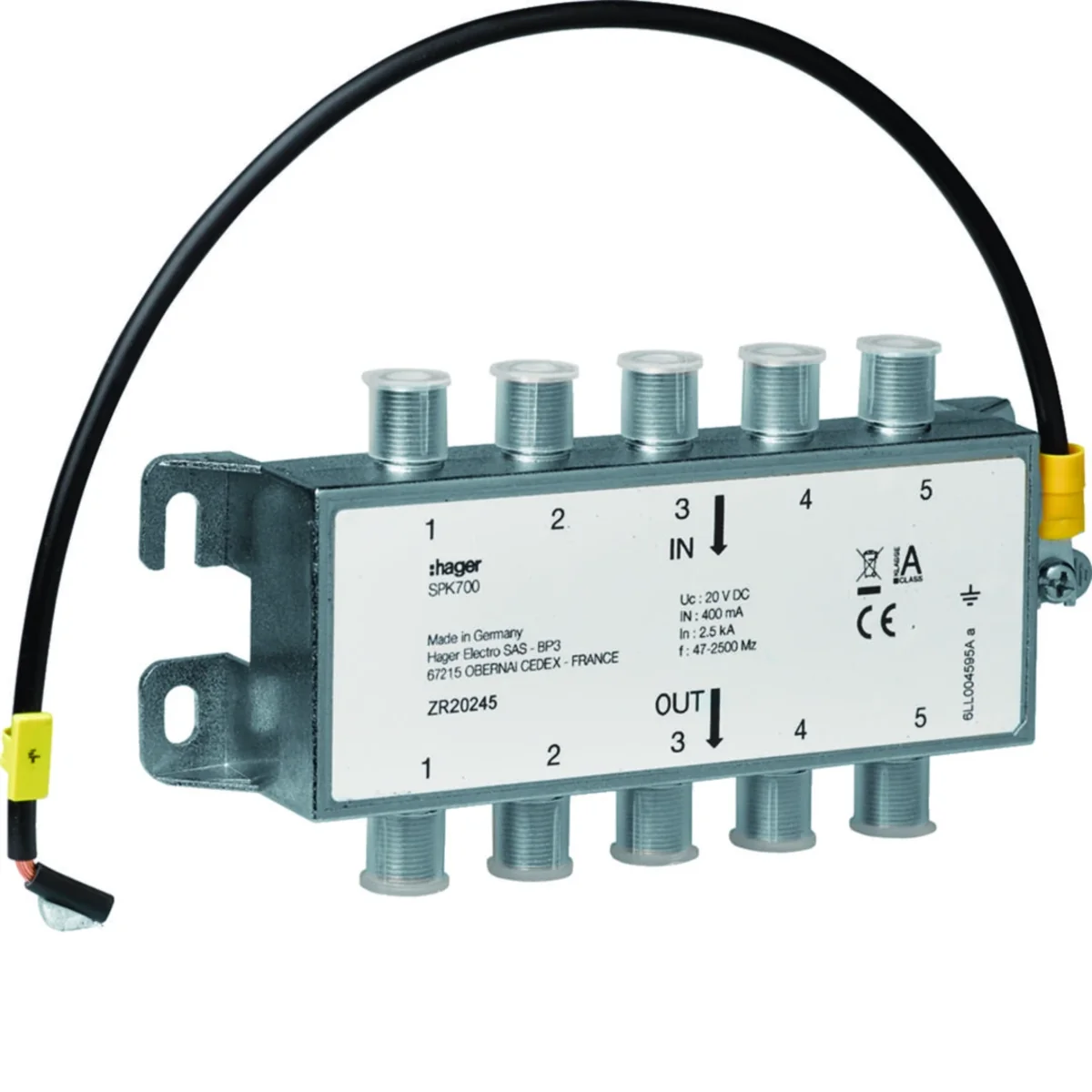

SPD TV surge arrester, 5 coaxial channels 2.5kA SPK700

local index:
AOC067HAGE
Catalog No:
SPK700
EAN code:
3250615515094
Manufacturer: HAGER
Family: SPD
Price:
219,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SPD TV surge arrester, 5 coaxial channels 2.5kA

Technical data

  • Family
    SPD

Other technical data

  • Nominal voltage DC
    20 ... 20 V
  • Nominal discharge surge current (8/20)
    2.5 kA
  • Frequency
    0.00005 ... 0.00006 MHz
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Pro-active thermo-control
    No
  • Signalling at the device
    None
  • Number of conductors (without earthing)
    10
  • Assembly width
    144.9 mm
  • Max. continuous voltage DC
    20 V
  • Voltage protection level core/earth
    500 V
  • Limiting frequency
    2500 MHz
  • Connection 1
    F-Connector
  • With remote signalling contact
    No
  • Explosion-tested version
    No
  • Earthing via
    Separate conductor
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,220 0,280 10,460 274,040
Width (m) 0,145 0,105 0,310 0,800
Length (m) 0,032 0,040 0,220 1,030
Depth (m) 0,072 0,150 0,365 1,200
