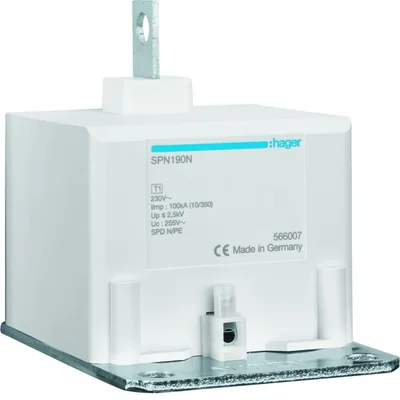

SPD T1 combined, 1P N-PE, Iimp 100 kA, Up ≤ 2.5 kV SPN190N
local index:
AOC016HAGE
Catalog No:
SPN190N
EAN code:
3250615660077
Price:
806,19 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print
Ask about the product
Product description
SPD T1 combined, 1P N-PE, Iimp 100 kA, Up ≤ 2.5 kV
Technical data
-
Rated frequency [Hz]60
-
Tightening torque [Nm]3.6
-
Level of securityIP20
-
Rated switching voltage [V]230/400
-
BeaconNO
-
PKWIU27.12.23.0
-
Number of poles1
-
Maximum continuous operating voltage [V]255
-
Operating temperature range [°C]From -40 to 80
-
Remote contactYes
-
storage temperature [°C]From -40 to 80
Other technical data
-
Lightning impulse current (10/350 µs)100 kA
-
Max. continuous voltage AC255 V
-
Nominal voltage DC0 V
-
Voltage protection level N-PE2.5 kV
-
Max. conductor cross section solid (solid, stranded)50 mm²
-
With remote signalling contactYes
-
Signalling at the deviceNone
-
Suitable for outdoor useNo
-
Nominal discharge surge current (8/20)100 kA
-
Nominal voltage AC400 V
-
Voltage protection level2.5 kV
-
Follow current extinguishing capability100 kA
-
Max. conductor cross section flexible (fine-strand)50 mm²
-
ExhaustingNo
-
Category type 1Yes
-
Degree of protection (IP)IP20
