El12 and HAGER

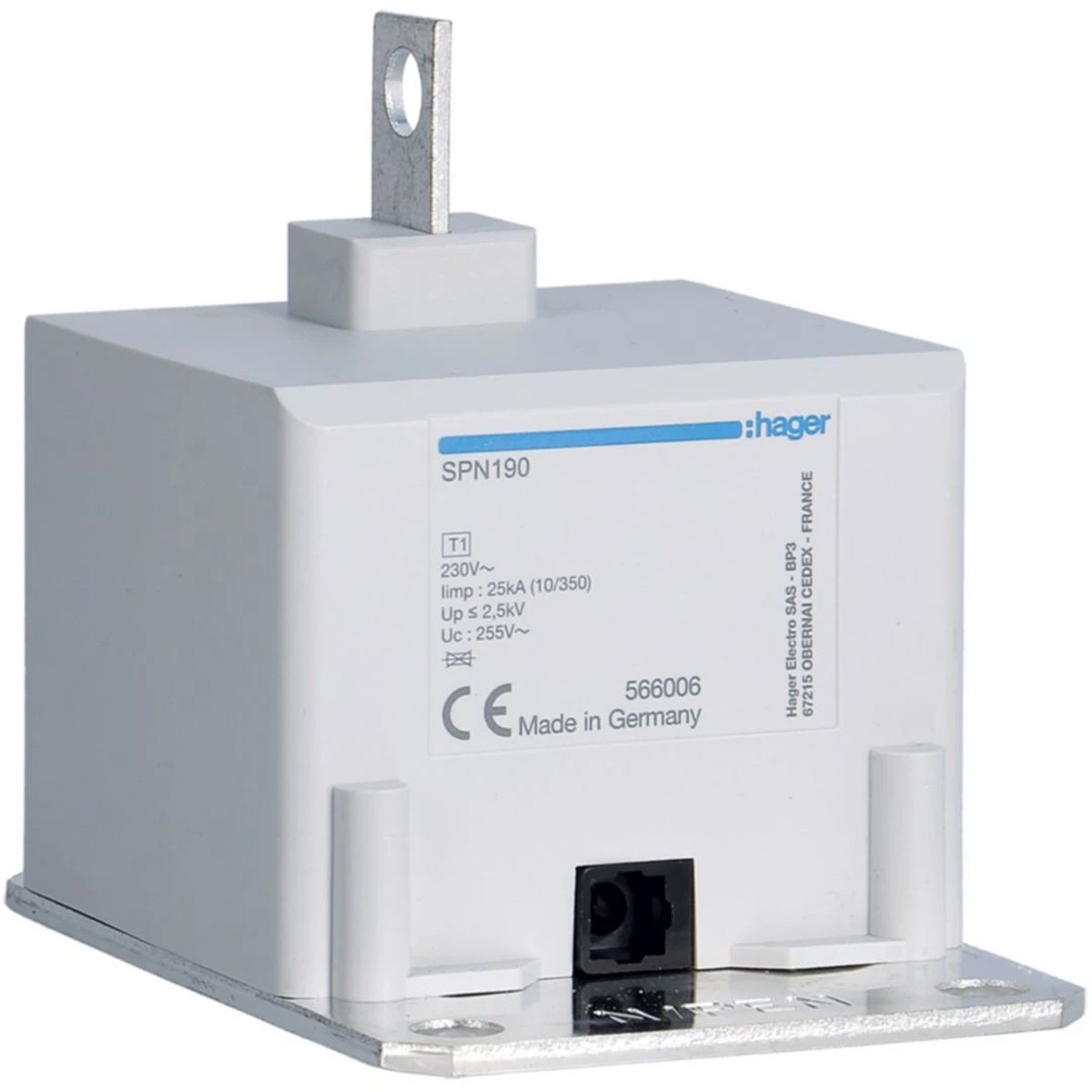

SPD T1 combined, 1P, Iimp 25 kA, Up ≤ 2.5 kV SPN190
local index:
AOC015HAGE
Catalog No:
SPN190
EAN code:
3250615660060
Click on the photo to enlarge
Manufacturer:
HAGER
Rated frequency [Hz]:
60
Number of poles:
1
Tightening torque [Nm]:
3.6
See full description
Price:
490,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
SPD T1 combined, 1P, Iimp 25 kA, Up ≤ 2.5 kV
Technical data
Rated frequency [Hz]
60
Tightening torque [Nm]
3.6
Level of security
IP20
Rated switching voltage [V]
230/400
Beacon
NO
Wire cross-section (cord) [mm²]
35
PKWIU
27.12.23.0
Number of poles
1
Maximum continuous operating voltage [V]
255
Operating temperature range [°C]
From -40 to 80
Remote contact
Yes
storage temperature [°C]
From -40 to 80
Conductor cross-section (wire) [mm²]
50
Other technical data
Lightning impulse current (10/350 µs)
25 kA
Max. continuous voltage AC
255 V
Nominal voltage DC
0 V
Voltage protection level L-N
2.5 kV
Follow current extinguishing capability
50 kA
Max. conductor cross section flexible (fine-strand)
50 mm²
Exhausting
No
Category type 1
Yes
Degree of protection (IP)
IP20
Nominal discharge surge current (8/20)
25 kA
Nominal voltage AC
400 V
Voltage protection level
2.5 kV
Voltage protection level N-PE
2.5 kV
Max. conductor cross section solid (solid, stranded)
50 mm²
With remote signalling contact
Yes
Signalling at the device
None
Suitable for outdoor use
No
Bulk packaging
A kind of package
Pakiet
Paczka
Paleta
Quantity
1 pcs.
12 pcs.
432 pcs.
Weight (kg)
0,695
8,780
303,696
Width (m)
0,097
0,316
0,800
Length (m)
0,110
0,211
1,350
Depth (m)
0,110
0,368
1,200
