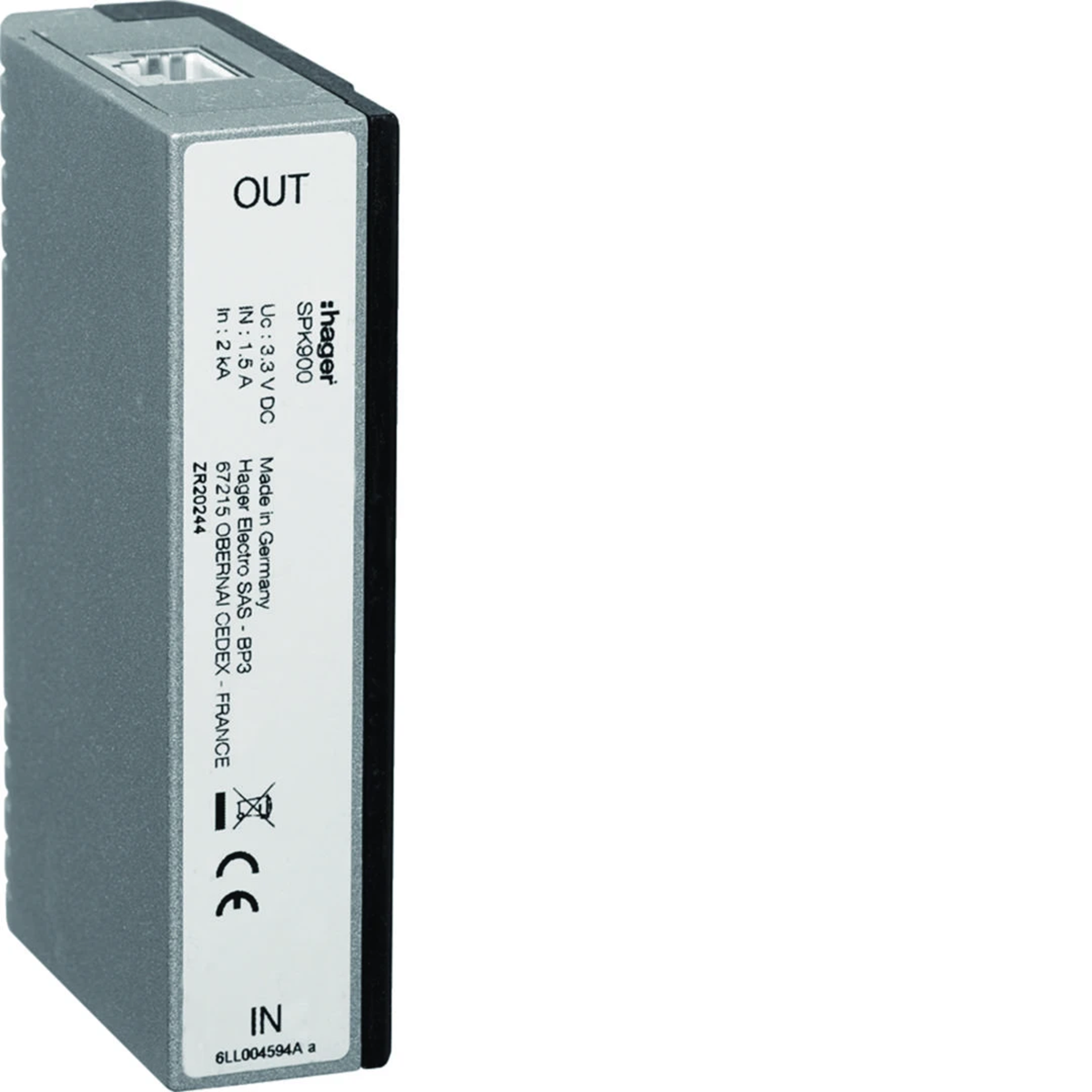

SPD Surge limiter for Ethernet Profinet 3.3V DC 2kA SPK900

local index:
AOC070HAGE
Catalog No:
SPK900
EAN code:
3250615515124
Manufacturer: HAGER
Family: SPD
Price:
121,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SPD Surge limiter for Ethernet Profinet 3.3V DC 2kA

Technical data

  • Family
    SPD

Other technical data

  • Max. continuous voltage DC
    3.3 V
  • Voltage protection level core/earth
    900 V
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Pro-active thermo-control
    No
  • Signalling at the device
    None
  • Number of conductors (without earthing)
    4
  • Assembly width
    25 mm
  • Nominal discharge surge current (8/20)
    0.91 kA
  • Frequency
    0.00005 ... 0.00006 MHz
  • Connection 1
    Terminal/RJ45
  • With remote signalling contact
    No
  • Explosion-tested version
    No
  • Earthing via
    Separate conductor
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,272 0,325 12,095 313,280
Width (m) 0,025 0,085 0,315 0,800
Length (m) 0,102 0,050 0,210 0,990
Depth (m) 0,064 0,115 0,365 1,200
