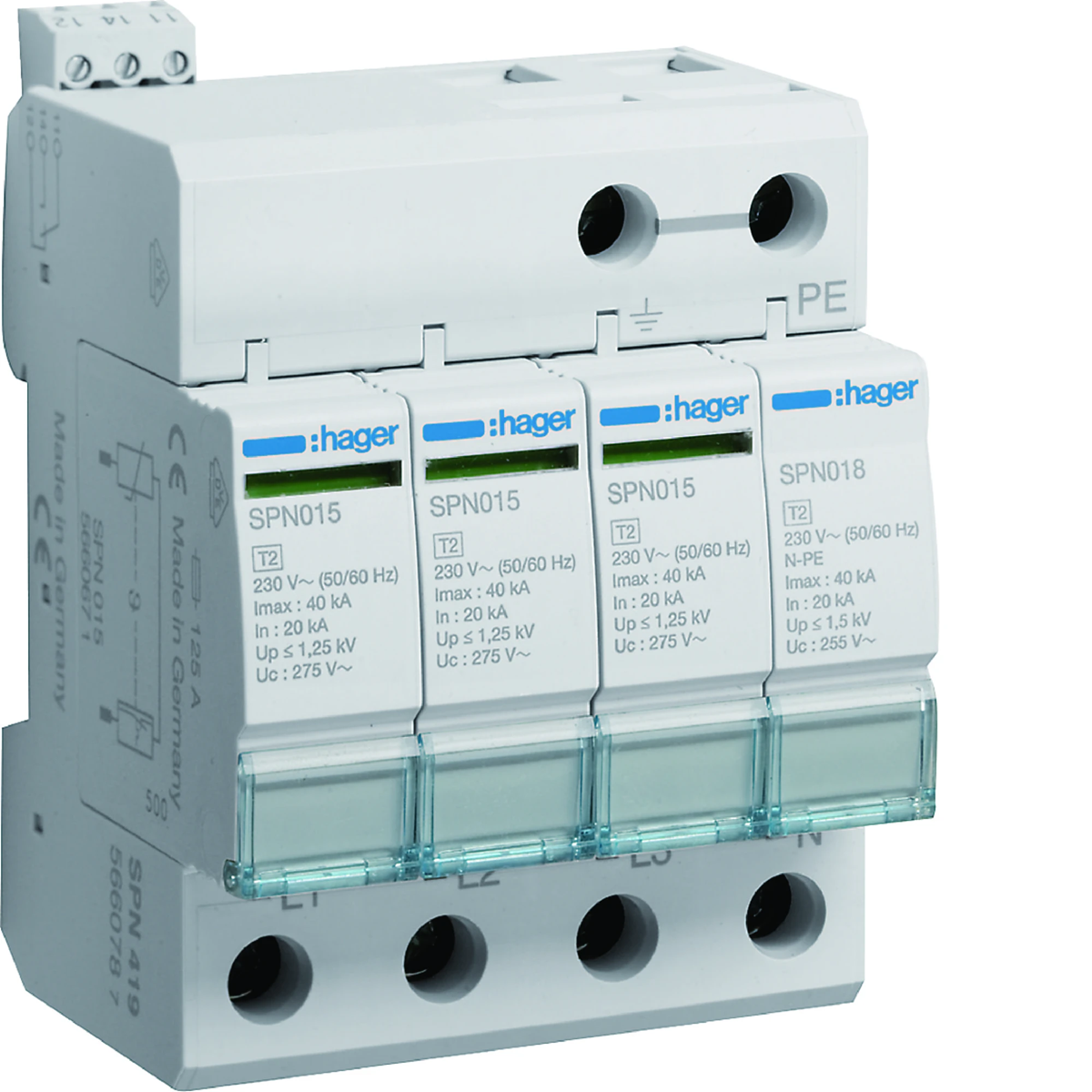

SPD Surge arrester T2 4P TN-S/TT network Imax 40kA Up≤1.25kV FM contact SPN419
Indice locale:
AOC033HAGE
Numero di catalogo:
SPN419
Codice EAN:
3250615660787
Prezzo:
407,82 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Stampa
Chiedi informazioni sul prodotto
Descrizione del prodotto
Varistor surge arrestertype 2, TN-S/TT network, FM contact, SPD series.
Series characteristics< /strong>:
They protect receiving devices and installations against the effects of induced atmospheric overvoltages and switching overvoltages. They can be installed behind type 1 surge arresters, while maintaining the distance of wires between them > 15 m or using decoupling inductances.
Dati tecnici
-
Rated frequency [Hz]60
-
Tightening torque [Nm]3.6
-
Maximum continuous operating voltage [V]275
-
Level of securityIP20
-
Operating temperature range [°C]from -40 to 60
-
Number of modules4
-
Control cable cross-section [mm²]1.5
-
BeaconFailure indication
-
Wire cross-section (cord) [mm²]25
-
PKWIU27.12.23.0
-
Number of poles4
-
InstallationOn the TH-35 rail
-
FamilySPD
-
Width [mm]72
-
Rated switching voltage [V]230/400
-
Wire cross-section [mm²]1.5
-
Remote contactYes
-
storage temperature [°C]From -40 to 80
-
Conductor cross-section (wire) [mm²]35
Altri dati tecnici
-
Nominal discharge surge current (8/20)20 kA
-
Nominal voltage AC400 V
-
Max. PV-voltage0 V
-
Voltage protection level L-N1.5 kV
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Signalling at the deviceOptical
-
Degree of protection (IP)IP20
-
Max. discharge surge current (8/20)40 kA
-
Max. continuous voltage AC275 V
-
Voltage protection level1.5 kV
-
Voltage protection level N-PE1.5 kV
-
With remote signalling contactYes
-
Category type 2Yes
Dettagli del produttore
-
ProduttoreHAGER POLO Sp. z o. o.
-
Indirizzo43-100 Tychy Fabryczna 10
-
NIP6460015532
