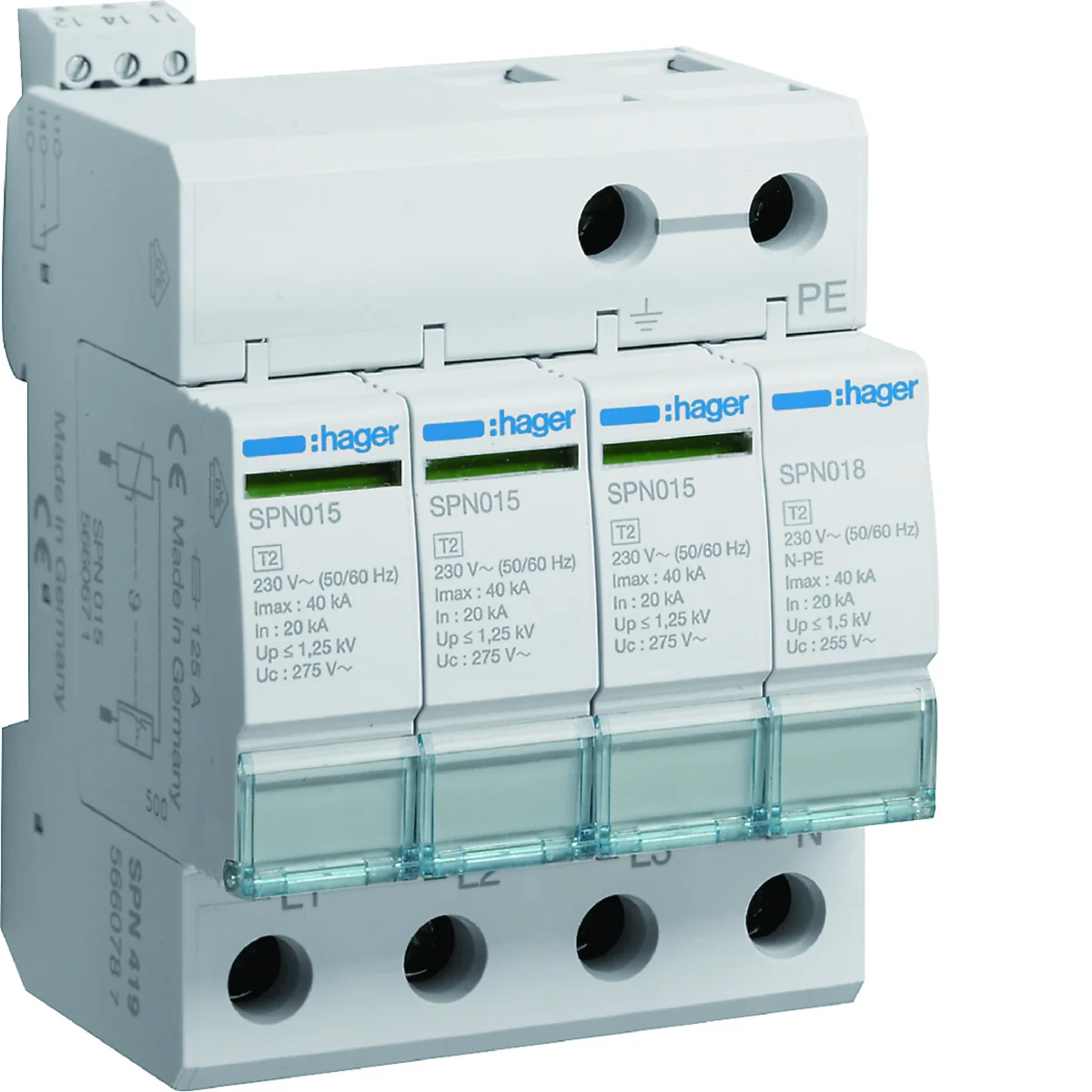

SPD Surge arrester T2 4P TN-S/TT network Imax 40kA Up≤1.25kV FM contact SPN419

local index:
AOC033HAGE
Catalog No:
SPN419
EAN code:
3250615660787
Manufacturer: HAGER
Rated frequency [Hz]: 60
Number of poles: 4
Tightening torque [Nm]: 3.6
Price:
406,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Varistor surge arrestertype 2, TN-S/TT network, FM contact, SPD series.

Series characteristics< /strong>:

They protect receiving devices and installations against the effects of induced atmospheric overvoltages and switching overvoltages. They can be installed behind type 1 surge arresters, while maintaining the distance of wires between them > 15 m or using decoupling inductances.

Technical data

  • Rated frequency [Hz]
    60
  • Tightening torque [Nm]
    3.6
  • Maximum continuous operating voltage [V]
    275
  • Level of security
    IP20
  • Operating temperature range [°C]
    from -40 to 60
  • Number of modules
    4
  • Control cable cross-section [mm²]
    1.5
  • Beacon
    Failure indication
  • Wire cross-section (cord) [mm²]
    25
  • PKWIU
    27.12.23.0
  • Number of poles
    4
  • Installation
    On the TH-35 rail
  • Family
    SPD
  • Width [mm]
    72
  • Rated switching voltage [V]
    230/400
  • Wire cross-section [mm²]
    1.5
  • Remote contact
    Yes
  • storage temperature [°C]
    From -40 to 80
  • Conductor cross-section (wire) [mm²]
    35

Other technical data

  • Nominal discharge surge current (8/20)
    20 kA
  • Nominal voltage AC
    400 V
  • Max. PV-voltage
    0 V
  • Voltage protection level L-N
    1.5 kV
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Signalling at the device
    Optical
  • Degree of protection (IP)
    IP20
  • Max. discharge surge current (8/20)
    40 kA
  • Max. continuous voltage AC
    275 V
  • Voltage protection level
    1.5 kV
  • Voltage protection level N-PE
    1.5 kV
  • With remote signalling contact
    Yes
  • Category type 2
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,415 0,416 15,458 393,992
Width (m) 0,072 0,077 0,318 0,800
Length (m) 0,097 0,079 0,232 1,078
Depth (m) 0,067 0,094 0,365 1,200
