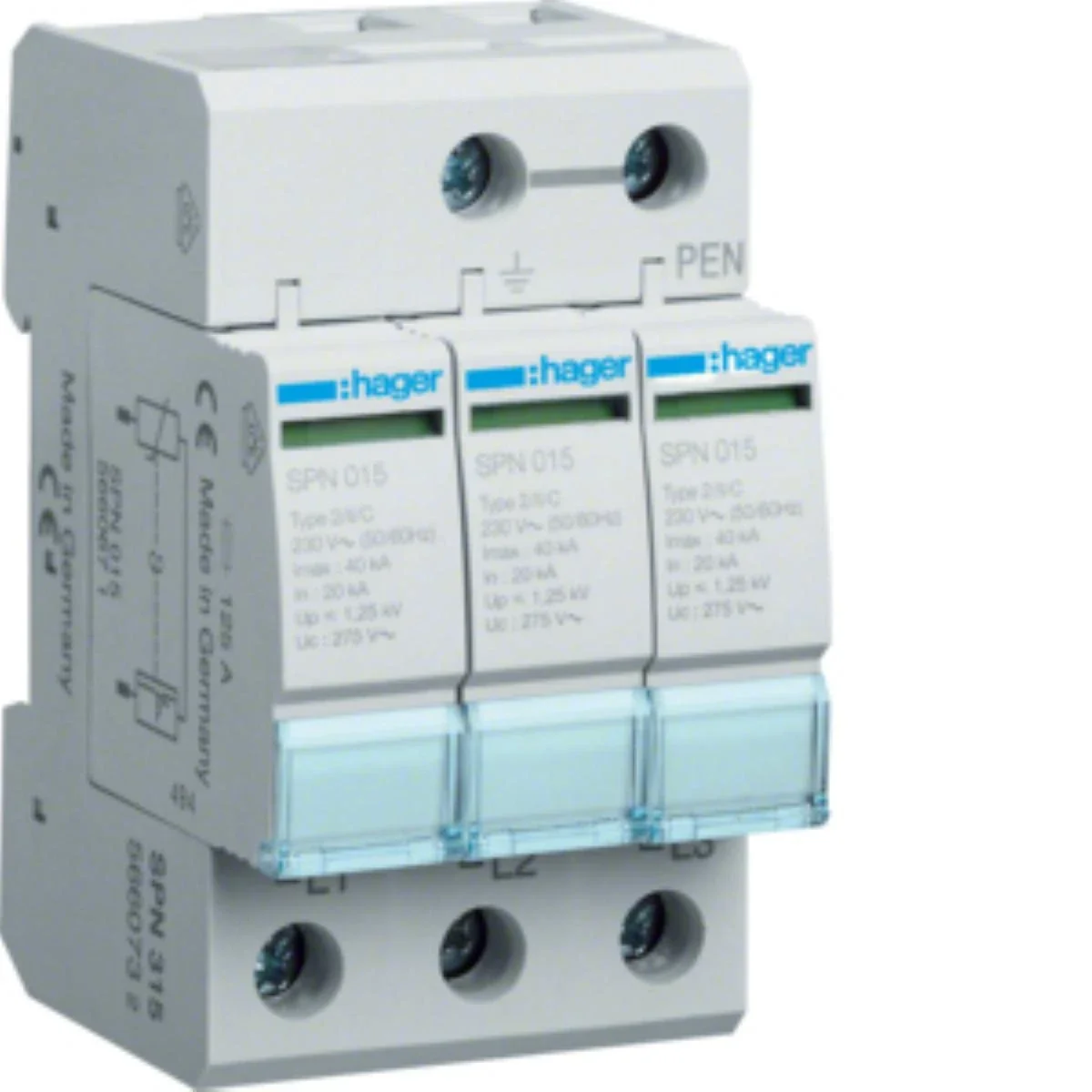

SPD Surge arrester T2 3P TN-C network Imax 40kA Up≤1.25kV SPN315
Índice local:
AOC032HAGE
Número de catálogo:
SPN315
Código EAN:
3250615660732
Precio:
1 269,36 zł
gross / uds.
(IVA incluido 23%)
Añadir a solicitud de presupuesto
Imprimir
Pregunta por el producto
Descripción del producto
Varistor surge arrestertype 2, TN-C network, SPD series.
Series characteristics:< /p>
They protect receiving devices and installations against the effects of induced atmospheric overvoltages and switching overvoltages. They can be installed behind type 1 surge arresters, while maintaining the distance of wires between them > 15 m or using decoupling inductances.
Datos técnicos
-
Rated frequency [Hz]60
-
Tightening torque [Nm]3.6
-
Maximum continuous operating voltage [V]275
-
Level of securityIP20
-
Operating temperature range [°C]from -40 to 60
-
Number of modules3
-
BeaconFailure indication
-
Wire cross-section (cord) [mm²]25
-
PKWIU27.12.23.0
-
Number of poles3
-
InstallationOn the TH-35 rail
-
FamilySPD
-
Width [mm]54
-
Rated switching voltage [V]230/400
-
Remote contactNO
-
storage temperature [°C]From -40 to 80
-
Conductor cross-section (wire) [mm²]35
Otros datos técnicos
-
System configuration otherYes
-
Nominal voltage AC400 V
-
Max. discharge surge current (8/20)40 kA
-
Max. PV-voltage0 V
-
Voltage protection level L-N1.5 kV
-
Signalling at the deviceOptical
-
Degree of protection (IP)IP20
-
Nominal discharge surge current (8/20)20 kA
-
Max. continuous voltage AC275 V
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Voltage protection level1.25 kV
-
With remote signalling contactNo
-
Category type 2Yes
Detalles del fabricante
-
FabricanteHAGER Polska Sp. z o. o.
-
Dirección43-100 Tychy Fabryczna 10
-
NIF6460015532
