el12 Lightning protection Protectors
el12 sale Get in the game - HAGER

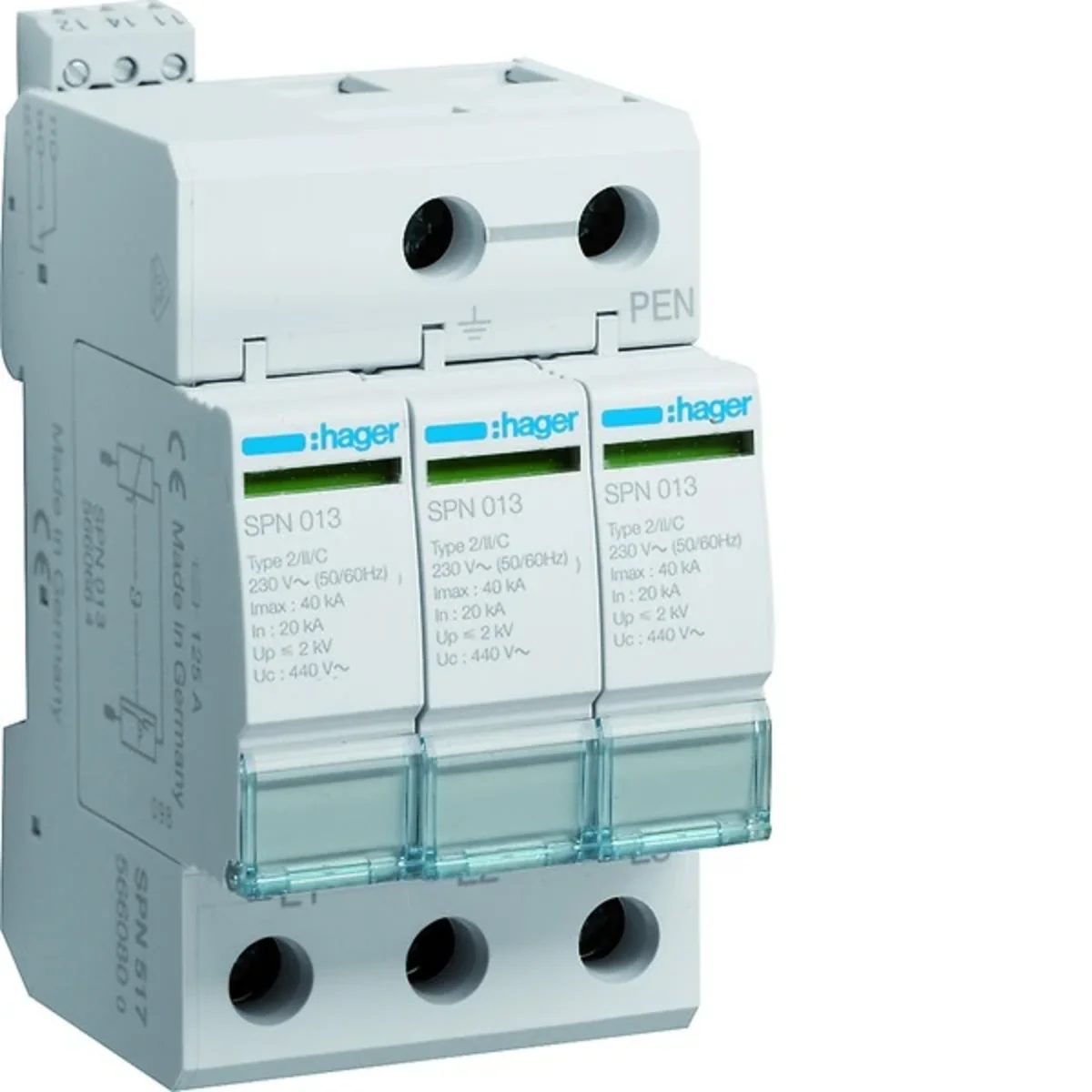

SPD Surge arrester T2 3P IT network Imax 40kA Up≤2kV FM contact SPN517

local index:
AOC035HAGE
Catalog No:
SPN517
EAN code:
3250615660800
SPD Surge arrester T2 3P IT network Imax 40kA Up≤2kV FM contact
SPD Surge arrester T2 3P IT network Imax 40kA Up≤2kV FM contact

Click on the photo to enlarge

Manufacturer: HAGER
Rated frequency [Hz]: 60
Number of poles: 3
Tightening torque [Nm]: 3.6
See full description
Price:
2229,99 zł
gross / pcs.
(including VAT 23%)
Delivery in 3h
Out of stock
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Print
Product description Technical data Manufacturer details

Product description

Varistor surge arrestertype 2, IT network, FM contact, SPD series.

Series characteristics:

They protect receiving devices and installations against the effects of induced atmospheric overvoltages and switching overvoltages. They can be installed behind type 1 surge arresters, while maintaining the distance of wires between them > 15 m or using decoupling inductances.

Technical data

  • Rated frequency [Hz]
    60
  • Tightening torque [Nm]
    3.6
  • Maximum continuous operating voltage [V]
    440
  • Level of security
    IP20
  • Rated switching voltage [V]
    230/400
  • Wire cross-section [mm²]
    1.5
  • Remote contact
    Yes
  • storage temperature [°C]
    From -40 to 80
  • Conductor cross-section (wire) [mm²]
    35
  • Number of poles
    3
  • Installation
    On the TH-35 rail
  • Family
    SPD
  • Operating temperature range [°C]
    from -40 to 60
  • Number of modules
    3
  • Control cable cross-section [mm²]
    1.5
  • Beacon
    Failure indication
  • Wire cross-section (cord) [mm²]
    25
  • PKWIU
    27.12.23.0

Other technical data

  • System configuration other
    Yes
  • Nominal voltage AC
    400 V
  • Max. discharge surge current (8/20)
    40 kA
  • Max. PV-voltage
    0 V
  • Voltage protection level L-N
    1.5 kV
  • With remote signalling contact
    Yes
  • Category type 2
    Yes
  • Nominal discharge surge current (8/20)
    20 kA
  • Max. continuous voltage AC
    440 V
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Voltage protection level
    2 kV
  • Voltage protection level N-PE
    1.5 kV
  • Signalling at the device
    Optical
  • Degree of protection (IP)
    IP20

Manufacturer details

  • Manufacturer
    HAGER POLO Sp. z o. o.
  • Address
    43-100 Tychy Fabryczna 10
  • Tax identification number
    6460015532
