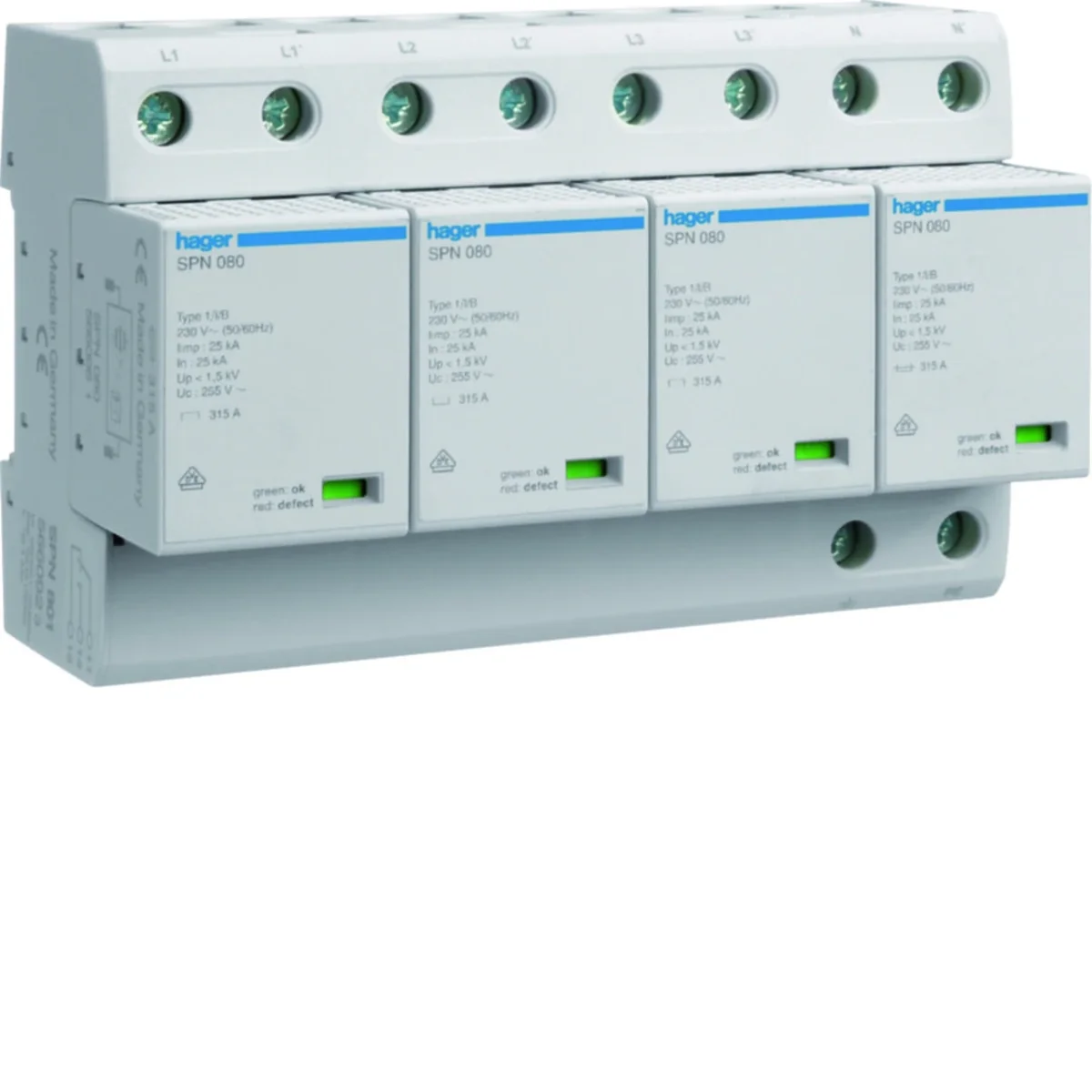

SPD Surge arrester T1 combined 4P TN-S, 100 kA, Up≤1.5 kV, signal contact SPN801R
local index:
AOC043HAGE
Catalog No:
SPN801R
EAN code:
3250615660930
Price:
1450,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
SPD Surge arrester T1 combined 4P TN-S, 100 kA, Up≤1.5 kV, signal contact
Technical data
-
Rated frequency [Hz]60
-
Number of poles4
-
InstallationOn the TH-35 rail
-
Level of securityIP20
-
Operating temperature range [°C]from -40 to 60
-
Number of modules8
-
BeaconFailure indication
-
Wire cross-section (cord) [mm²]35
-
PKWIU27.12.23.0
-
Depth [mm]83
-
Tightening torque [Nm]3.6
-
Maximum continuous operating voltage [V]255
-
Width [mm]144
-
Rated switching voltage [V]230/400
-
Remote contactYes
-
storage temperature [°C]From -40 to 80
-
Conductor cross-section (wire) [mm²]35
Other technical data
-
Max. continuous voltage AC255 V
-
Voltage protection level1.5 kV
-
Voltage protection level N-PE1.5 kV
-
Mounting methodDIN rail (top hat rail) 15 mm
-
ExhaustingNo
-
Category type 1Yes
-
Nominal voltage AC400 V
-
Voltage protection level L-N1.5 kV
-
Follow current extinguishing capability50 kA
-
With remote signalling contactYes
-
Signalling at the deviceOptical
-
Degree of protection (IP)IP20
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 8 pcs. | 192 pcs. |
| Weight (kg) | 1,323 | 1,324 | 11,000 | 287,000 |
| Width (m) | 0,117 | 0,117 | 0,313 | 0,800 |
| Length (m) | 0,096 | 0,096 | 0,212 | 0,998 |
| Depth (m) | 0,140 | 0,163 | 0,360 | 1,200 |
