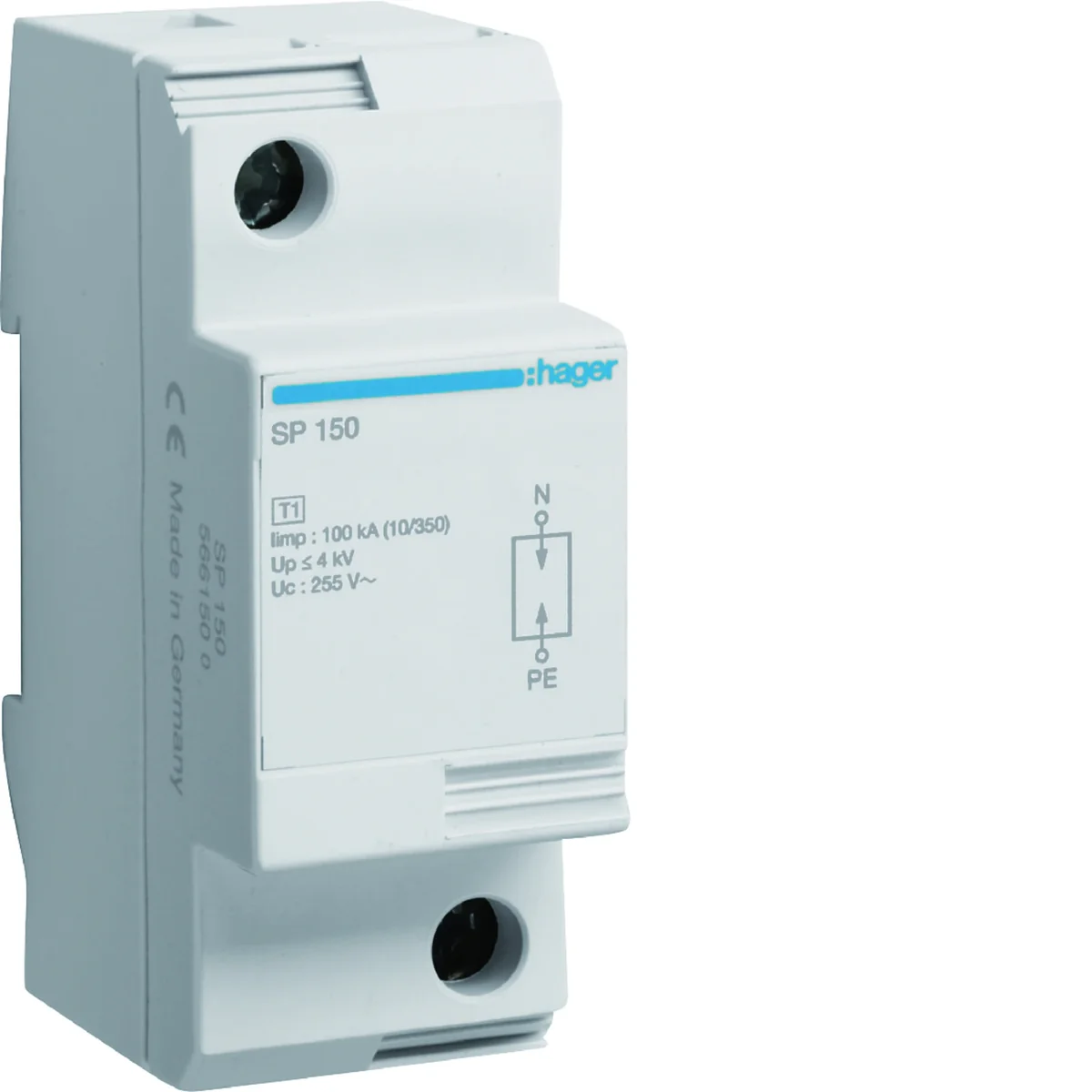

SPD Surge arrester T1, 1P N-PE, TT network, Iimp 100kA, Up≤4kV SP150

local index:
AOC036HAGE
Catalog No:
SP150
EAN code:
3250615661500
Manufacturer: HAGER
Rated frequency [Hz]: 60
Number of poles: 2
Tightening torque [Nm]: 3.6
Price:
242,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SPD Surge arrester T1, 1P N-PE, TT network, Iimp 100kA, Up≤4kV

Technical data

  • Rated frequency [Hz]
    60
  • Tightening torque [Nm]
    3.6
  • Maximum continuous operating voltage [V]
    255
  • Width [mm]
    36
  • Rated switching voltage [V]
    230
  • Remote contact
    NO
  • storage temperature [°C]
    From -40 to 80
  • Conductor cross-section (wire) [mm²]
    50
  • Number of poles
    2
  • Installation
    On the TH-35 rail
  • Level of security
    IP20
  • Operating temperature range [°C]
    From -40 to 80
  • Number of modules
    2
  • Beacon
    NO
  • Wire cross-section (cord) [mm²]
    35
  • PKWIU
    27.12.23.0

Other technical data

  • Max. continuous voltage AC
    255 V
  • Voltage protection level
    4 kV
  • Voltage protection level N-PE
    1.5 kV
  • With remote signalling contact
    No
  • Signalling at the device
    None
  • Suitable for outdoor use
    No
  • Nominal voltage AC
    230 V
  • Voltage protection level L-N
    1.5 kV
  • Mounting method
    DIN rail (top hat rail) 15 mm
  • Exhausting
    No
  • Category type 1
    Yes
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,250 0,331 20,300 512,200
Width (m) 0,035 0,080 0,318 0,800
Length (m) 0,090 0,038 0,219 1,026
Depth (m) 0,064 0,099 0,370 1,200
