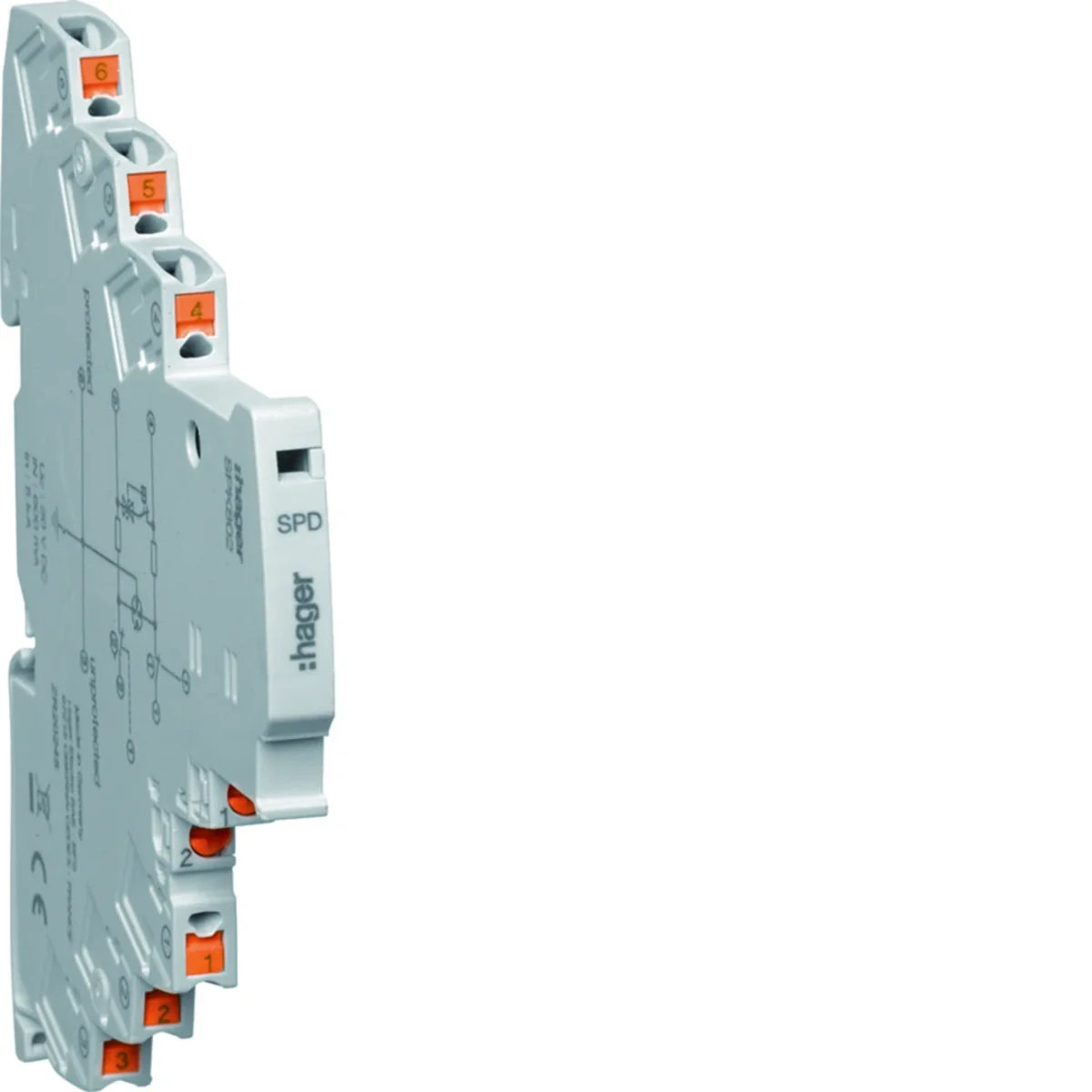

SPD Surge arrester for weather stations 4-20mA 2P 5kA 0.5kA SPK802

local index:
AOC068HAGE
Catalog No:
SPK802
EAN code:
3250615515100
Manufacturer: HAGER
Family: SPD
Price:
82,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SPD Surge arrester for weather stations 4-20mA 2P 5kA 0.5kA

Technical data

  • Family
    SPD

Other technical data

  • Nominal voltage AC
    24 ... 24 V
  • Max. continuous voltage AC
    21 V
  • Nominal discharge surge current (8/20)
    5 kA
  • Voltage protection level core/core
    80 V
  • Frequency
    0.00005 ... 0.00006 MHz
  • Connection 1
    Clamp
  • With remote signalling contact
    Yes
  • Explosion-tested version
    No
  • Earthing via
    Separate conductor
  • Degree of protection (IP)
    IP20
  • Nominal voltage DC
    24 ... 24 V
  • Max. continuous voltage DC
    30 V
  • Lightning impulse current (10/350 µs)
    0.5 kA
  • Voltage protection level core/earth
    145 V
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Pro-active thermo-control
    No
  • Signalling at the device
    Optical
  • Number of conductors (without earthing)
    6
  • Assembly width
    6.2 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 64 pcs. 1536 pcs.
Weight (kg) 0,031 0,038 2,702 87,848
Width (m) 0,006 0,085 0,315 0,800
Length (m) 0,106 0,004 0,215 1,010
Depth (m) 0,085 0,110 0,360 1,200
