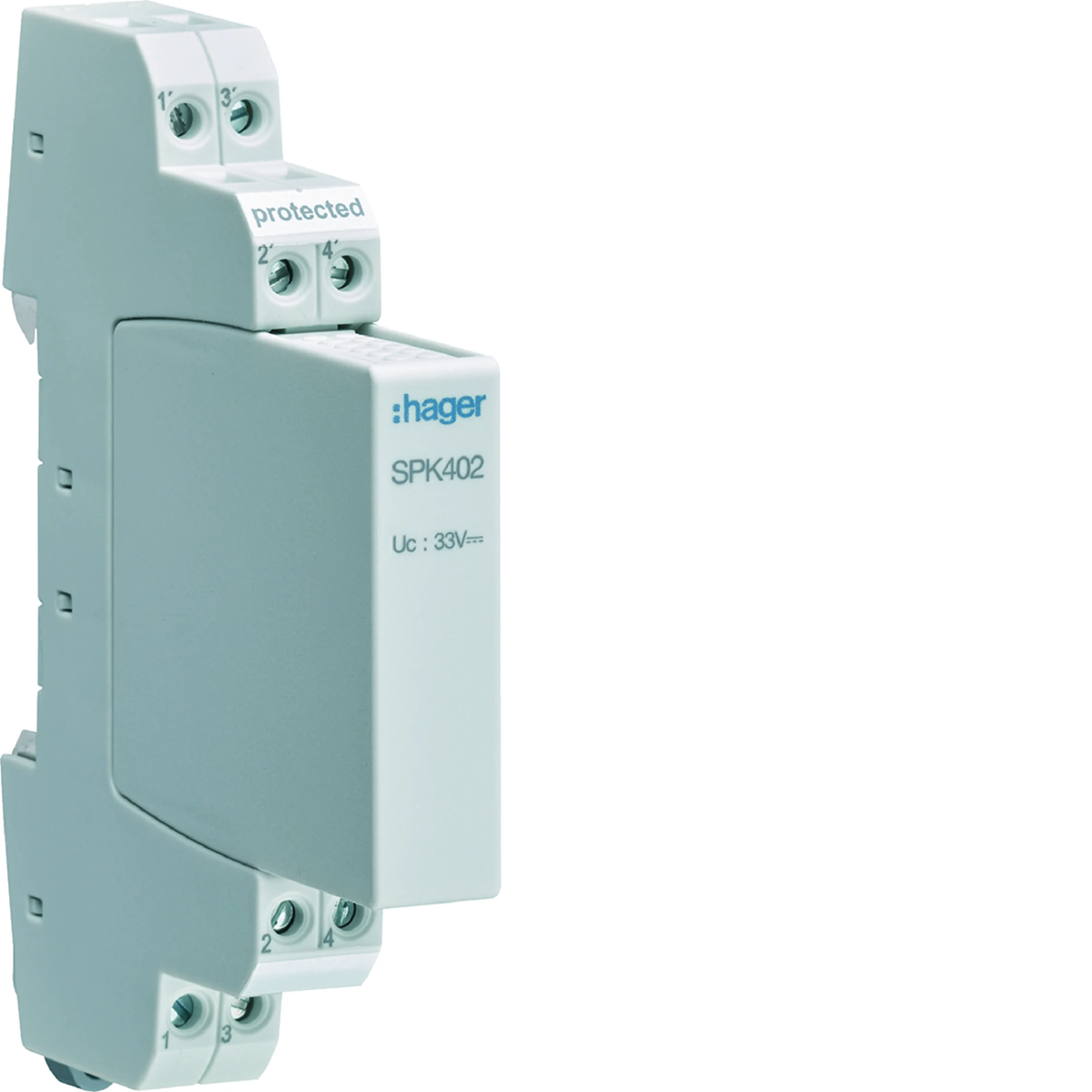

SPD Surge arrester for 4-20mA 2P devices SPK402

local index:
AOC023HAGE
Catalog No:
SPK402
EAN code:
3250615661098
Manufacturer: HAGER
Tightening torque [Nm]: 0.4
Installation: On the TH-35 rail
Family: SPD
Price:
104,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Surge arrester for weather stations and automation systems, SPD series. Dedicated to networks: 4-20mA, FieldBus, k bus, LUXMATE bus, PROFIBUS PA, DaliBus. Connector: 1 pair/2 terminals, 2 pairs/4 terminals.

Series characteristics:

An efficient ICT system is the basis in the modern world. Starting from large production plants, through medium-sized companies and craft workshops, to households, we are dealing with electronic devices everywhere. Unfortunately, one of their features is high susceptibility to overvoltage. The risk of damage and the resulting costs of restoring full functionality and losses related to downtime in enterprises cannot be ignored. When designing and implementing modern control systems, data exchange, ICT networks or systems that increase the level of security, it is absolutely necessary to remember to ensure the appropriate level of overvoltage protection.

Technical data

  • Tightening torque [Nm]
    0.4
  • Family
    SPD
  • Width [mm]
    12
  • Remote contact
    NO
  • Wire cross-section (cord) [mm²]
    0.08 - 2.5
  • PKWIU
    27.12.23.0
  • Installation
    On the TH-35 rail
  • Level of security
    IP20
  • Operating temperature range [°C]
    From -40 to 80
  • Beacon
    NO
  • Conductor cross-section (wire) [mm²]
    0.08 - 4

Other technical data

  • Max. continuous voltage AC
    23.3 V
  • Nominal discharge surge current (8/20)
    20 kA
  • Nominal load current
    1 A
  • Voltage protection level core/earth
    550 V
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Pro-active thermo-control
    No
  • Signalling at the device
    None
  • Max. continuous voltage DC
    33 V
  • Lightning impulse current (10/350 µs)
    9 kA
  • Voltage protection level core/core
    52 V
  • Limiting frequency
    7.8 MHz
  • Connection 1
    Clamp
  • With remote signalling contact
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 25 pcs. 600 pcs.
Weight (kg) 0,055 0,065 1,965 70,160
Width (m) 0,072 0,080 0,315 0,800
Length (m) 0,012 0,025 0,105 0,610
Depth (m) 0,094 0,095 0,370 1,200
