SPD Replaceable module T2 1P network TN/TT Imax 40kA Up≤1.25kV SPN015

Name: SPD Replaceable module T2 1P network TN/TT Imax 40kA Up≤1.25kV
Brand: HAGER
SKU: AOC027HAGE
Price: 60.37 PLN

local index:

AOC027HAGE

Catalog No:

SPN015

EAN code:

3250615660671

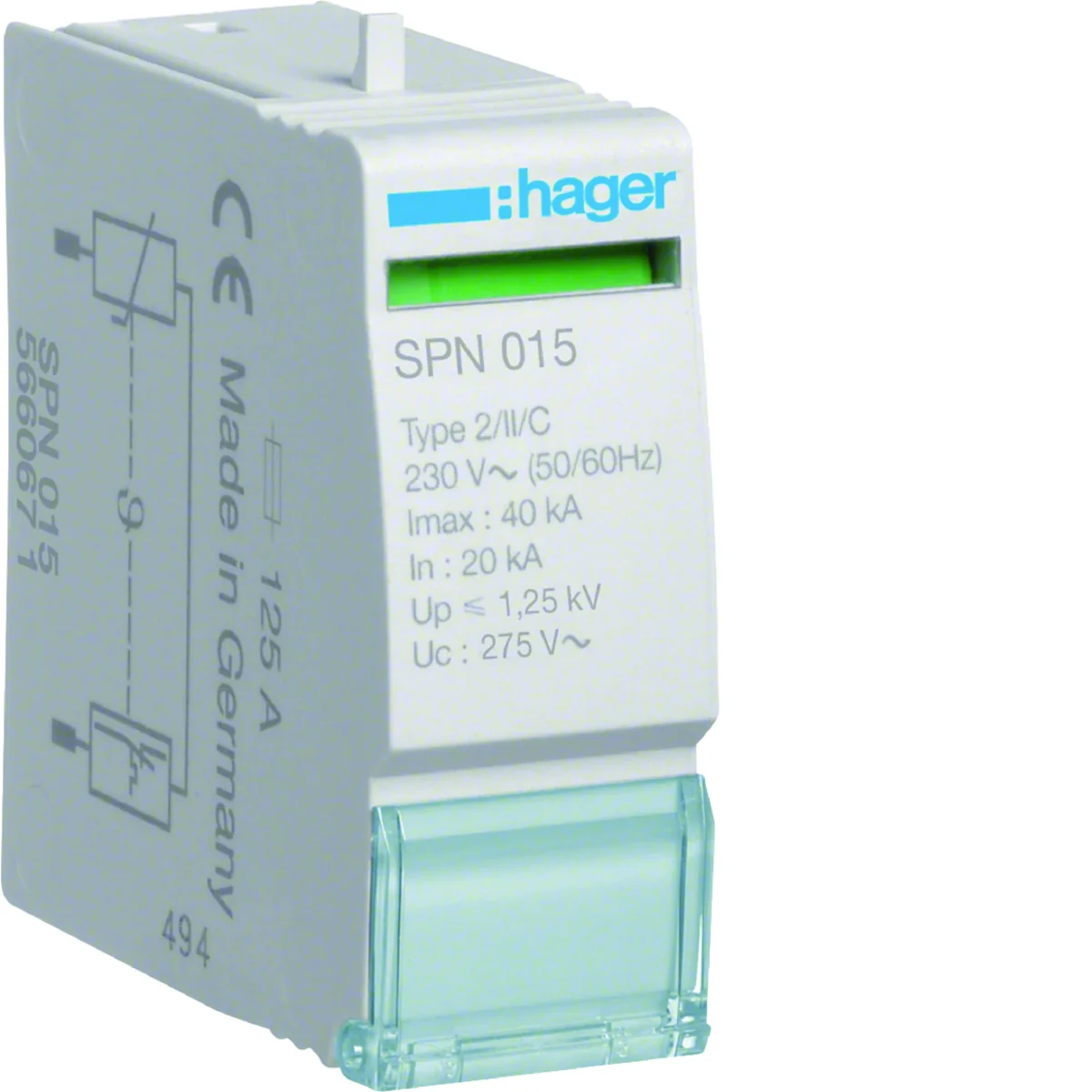

SPD Replaceable module T2 1P network TN/TT Imax 40kA Up≤1.25kV

Click on the photo to enlarge

Manufacturer: HAGER

Rated frequency [Hz]: 60

Number of poles: 1

Maximum continuous operating voltage [V]: 275

See full description

Price:

60,37 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Replacement module for surge arresterstype 2, TN/TT network, SPD series.

Series characteristics :

They protect receiving devices and installations against the effects of induced atmospheric overvoltages and switching overvoltages. They can be installed behind type 1 surge arresters, while maintaining the distance of wires between them > 15 m or using decoupling inductances.

Technical data

Rated frequency [Hz]

60
Maximum continuous operating voltage [V]

275
Operating temperature range [°C]

from -40 to 60
Number of modules

1
Beacon

Failure indication
Wire cross-section (cord) [mm²]

25
PKWIU

27.12.23.0

Number of poles

1
Family

SPD
Rated switching voltage [V]

230
Remote contact

NO
storage temperature [°C]

From -40 to 80
Conductor cross-section (wire) [mm²]

35

Other technical data

Nominal discharge surge current (8/20)

20 kA
Max. continuous voltage AC

275 V
Mounting method

DIN rail (top hat rail) 35 mm
Voltage protection level

1.5 kV
Signalling at the device

Optical
Degree of protection (IP)

IP20

Nominal voltage AC

230 V
Max. discharge surge current (8/20)

40 kA
Max. PV-voltage

0 V
With remote signalling contact

No
Category type 2

Yes

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	108 pcs.	2592 pcs.
Weight (kg)	0,051	0,055	6,400	176,600
Width (m)	0,018	0,080	0,315	0,800
Length (m)	0,045	0,025	0,210	1,026
Depth (m)	0,045	0,095	0,360	1,200
