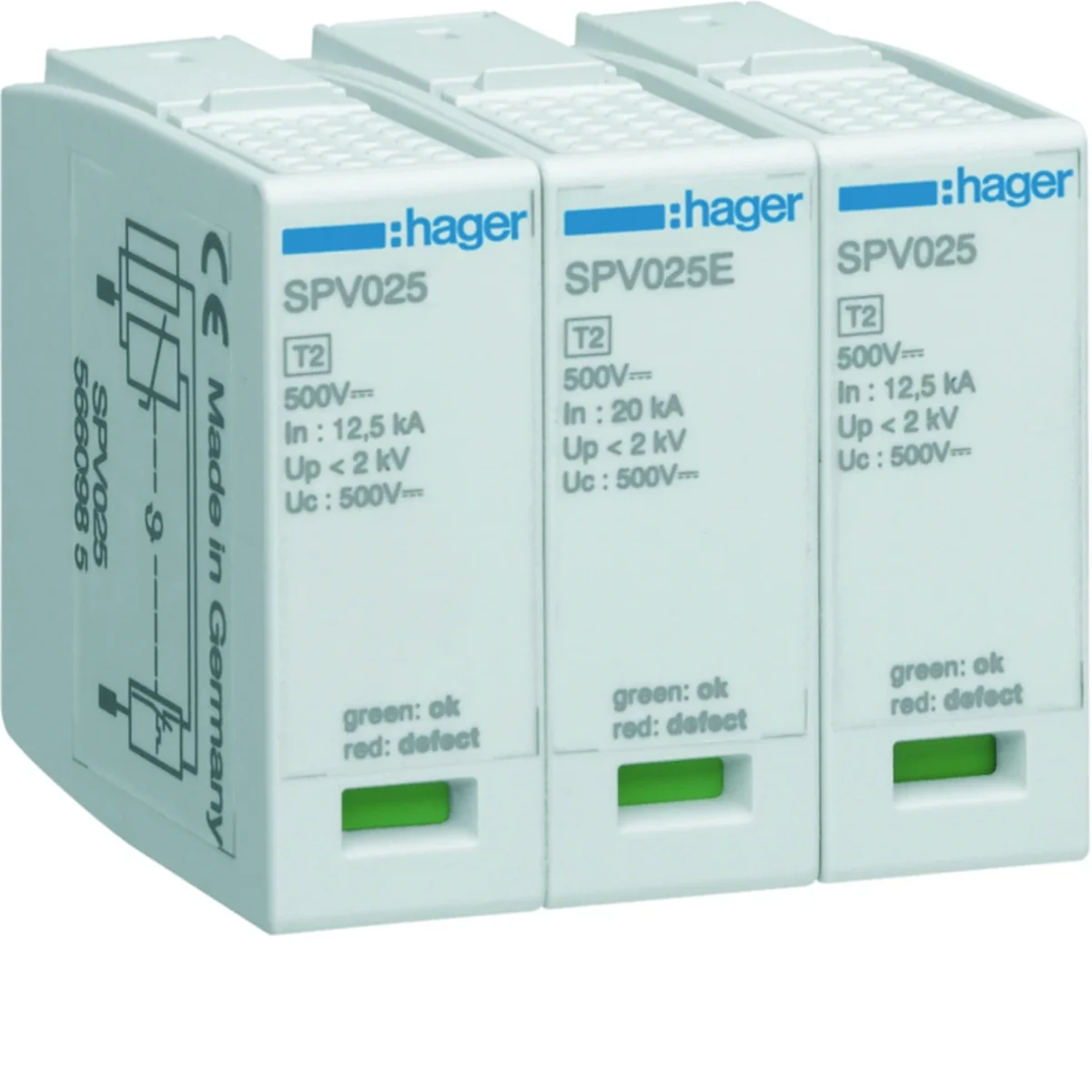

SPD Replaceable module +/- 1P T2 12.5 kA d.c. SPV025

local index:
AOC047HAGE
Catalog No:
SPV025
EAN code:
3250615660985
Manufacturer: HAGER
Rated frequency [Hz]: 60
Number of poles: 1
Maximum continuous operating voltage [V]: 1000
Price:
50,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SPD Replaceable module +/- 1P T2 12.5 kA d.c.

Technical data

  • Rated frequency [Hz]
    60
  • Maximum continuous operating voltage [V]
    1000
  • Operating temperature range [°C]
    From -40 to 80
  • Remote contact
    NO
  • storage temperature [°C]
    From -40 to 80
  • Number of poles
    1
  • Width [mm]
    18
  • Number of modules
    1
  • Beacon
    reserves
  • PKWIU
    27.12.10.0

Other technical data

  • Nominal discharge surge current (8/20)
    12.5 kA
  • Max. continuous voltage AC
    1000 V
  • Voltage protection level
    4 kV
  • Signalling at the device
    Optical
  • Degree of protection (IP)
    IP20
  • Max. discharge surge current (8/20)
    25 kA
  • Max. PV-voltage
    0 V
  • With remote signalling contact
    No
  • Category type 2
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 54 pcs. 1296 pcs.
Weight (kg) 0,059 0,060 3,770 113,480
Width (m) 0,018 0,080 0,310 0,600
Length (m) 0,045 0,025 0,210 1,010
Depth (m) 0,056 0,095 0,360 1,200
