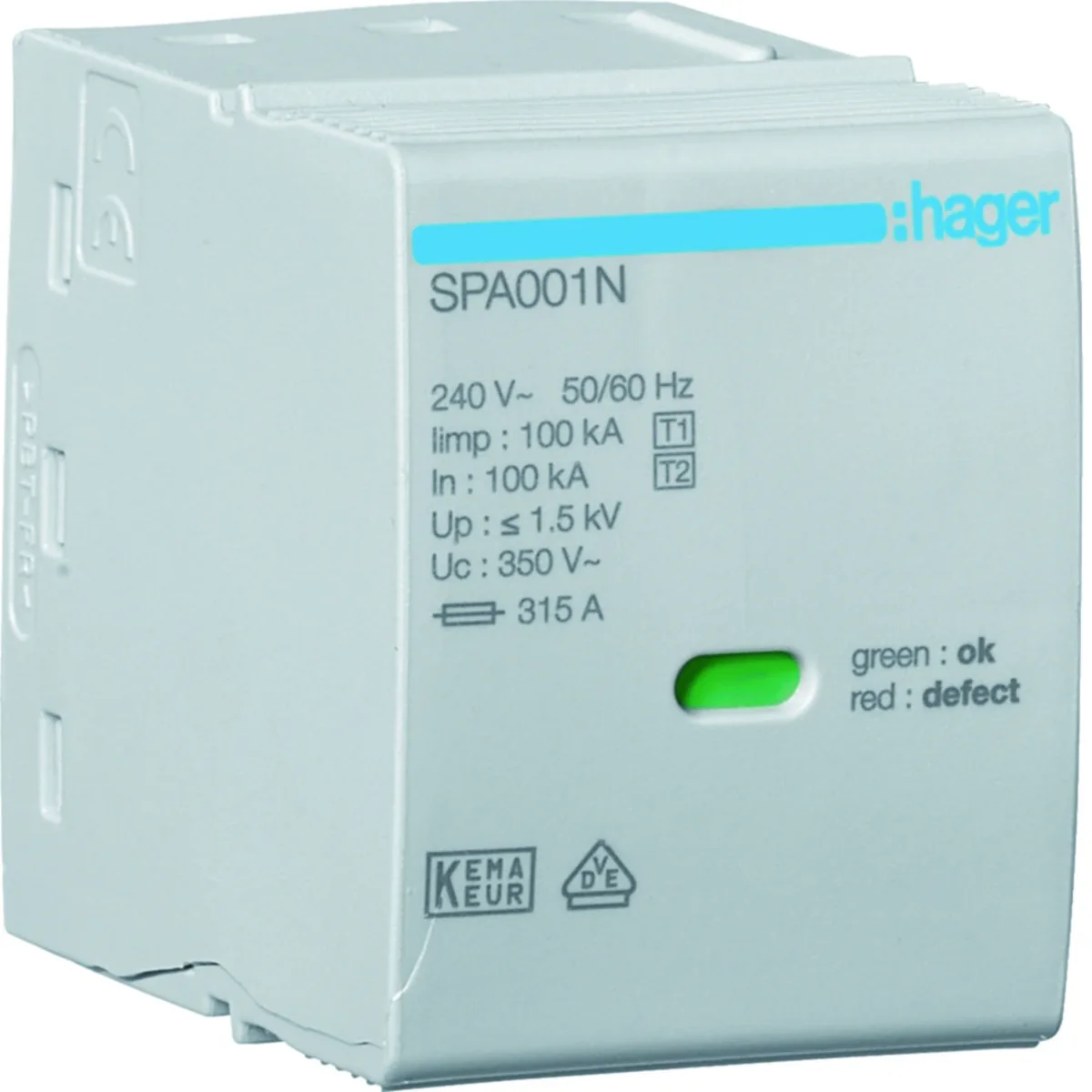

SPD Module T1 1P network TT(N-PE) Iimp=100kA In=100kA Up≤1.5kV SPA001N
local index:
AOC054HAGE
Catalog number:
SPA001N
EAN code:
3250615514813
Manufacturer:
HAGER
Price:
1 283,76 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
-
PKWIU27.12.23.0
Other technical data
-
System configuration DCNo
-
System configuration TNYes
-
System configuration TN-C-SNo
-
System configuration TTYes
-
Number of poles1
-
Max. continuous voltage AC350 V
-
Voltage protection level1.5 kV
-
Follow current extinguishing capability25 kA
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Remote signallingNo
-
Test classType 1 + 2
-
Degree of protection (IP)IP20
-
System configuration ITNo
-
System configuration TN-CNo
-
System configuration TN-SNo
-
System configuration otherNo
-
Lightning impulse current (10/350 µs)100 kA
-
Nominal voltage AC240 V
-
Voltage protection level N-PE1.5 kV
-
Specific energy (W/R)2500 kJ/Ω
-
Construction size2 modular spacing
-
Signalling at the deviceOptical
-
Integrated backup fuseNo
Manufacturer details
-
ManufacturerHager Electro S.A.S.
-
AddressFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 1 pcs. | 20 pcs. | 960 pcs. |
| Weight (kg) | 0,220 | 4,730 | 261,392 |
| Width (m) | 0,080 | 0,310 | 0,800 |
| Length (m) | 0,050 | 0,110 | 1,050 |
| Depth (m) | 0,110 | 0,360 | 1,200 |
