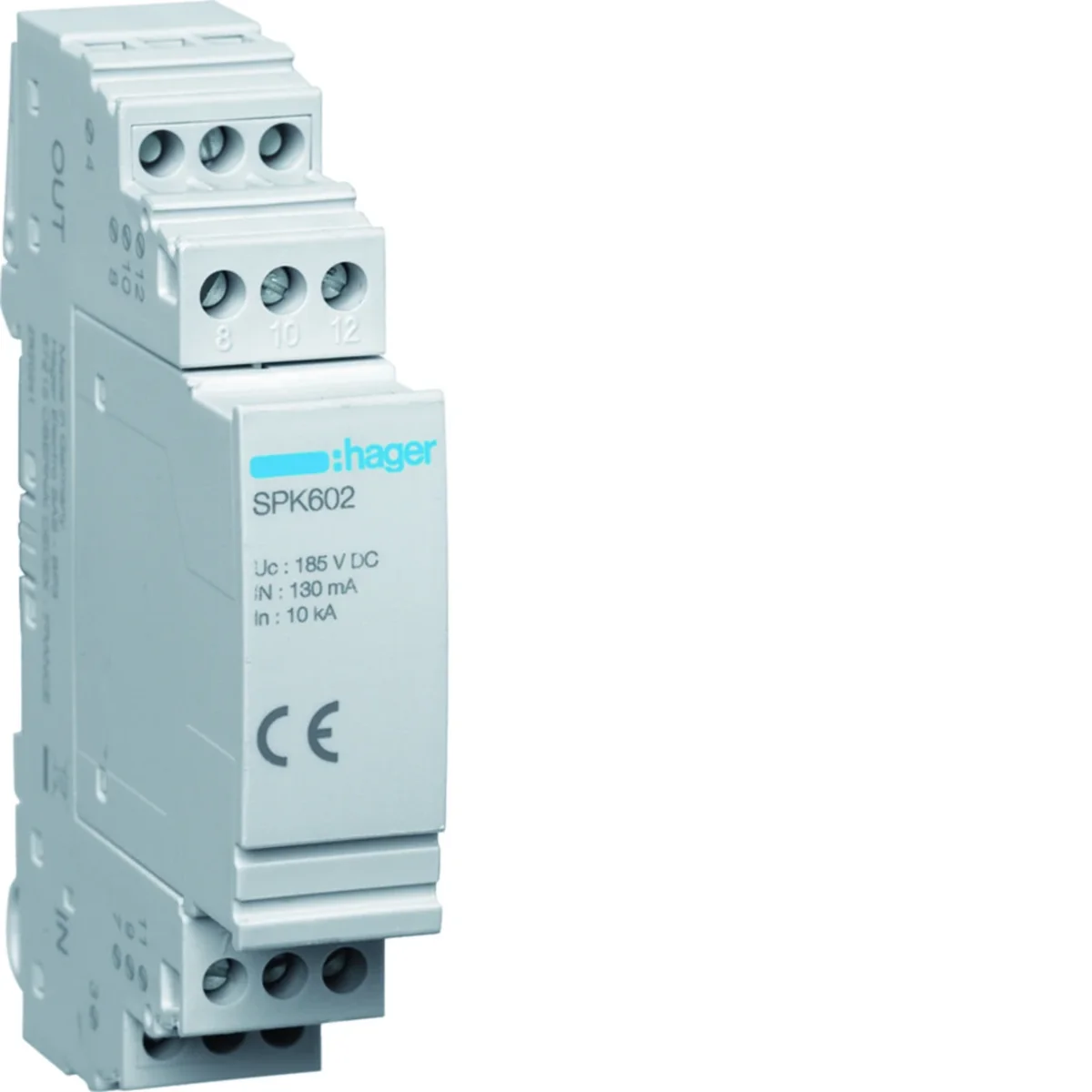

SPD Line surge arrester ADSL 2P DSL ADSL ADSL+ ISDN 1kA 10kA SPK602

local index:
AOC066HAGE
Catalog No:
SPK602
EAN code:
3250615515070
Manufacturer: HAGER
Family: SPD
Price:
109,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SPD Line surge arrester ADSL 2P DSL ADSL ADSL+ ISDN 1kA 10kA

Technical data

  • Family
    SPD

Other technical data

  • Nominal voltage AC
    130 ... 130 V
  • Max. continuous voltage AC
    130 V
  • Nominal discharge surge current (8/20)
    10 kA
  • Frequency
    0.00005 ... 0.00006 MHz
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Pro-active thermo-control
    No
  • Signalling at the device
    None
  • Number of conductors (without earthing)
    3
  • Assembly width
    17.7 mm
  • Nominal voltage DC
    185 ... 185 V
  • Max. continuous voltage DC
    185 V
  • Voltage protection level core/earth
    300 V
  • Limiting frequency
    20 MHz
  • Connection 1
    Clamp
  • With remote signalling contact
    Yes
  • Explosion-tested version
    No
  • Earthing via
    Separate conductor
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 42 pcs. 1008 pcs.
Weight (kg) 0,060 0,090 4,280 125,720
Width (m) 0,018 0,085 0,315 0,800
Length (m) 0,090 0,050 0,225 1,050
Depth (m) 0,065 0,110 0,360 1,200
