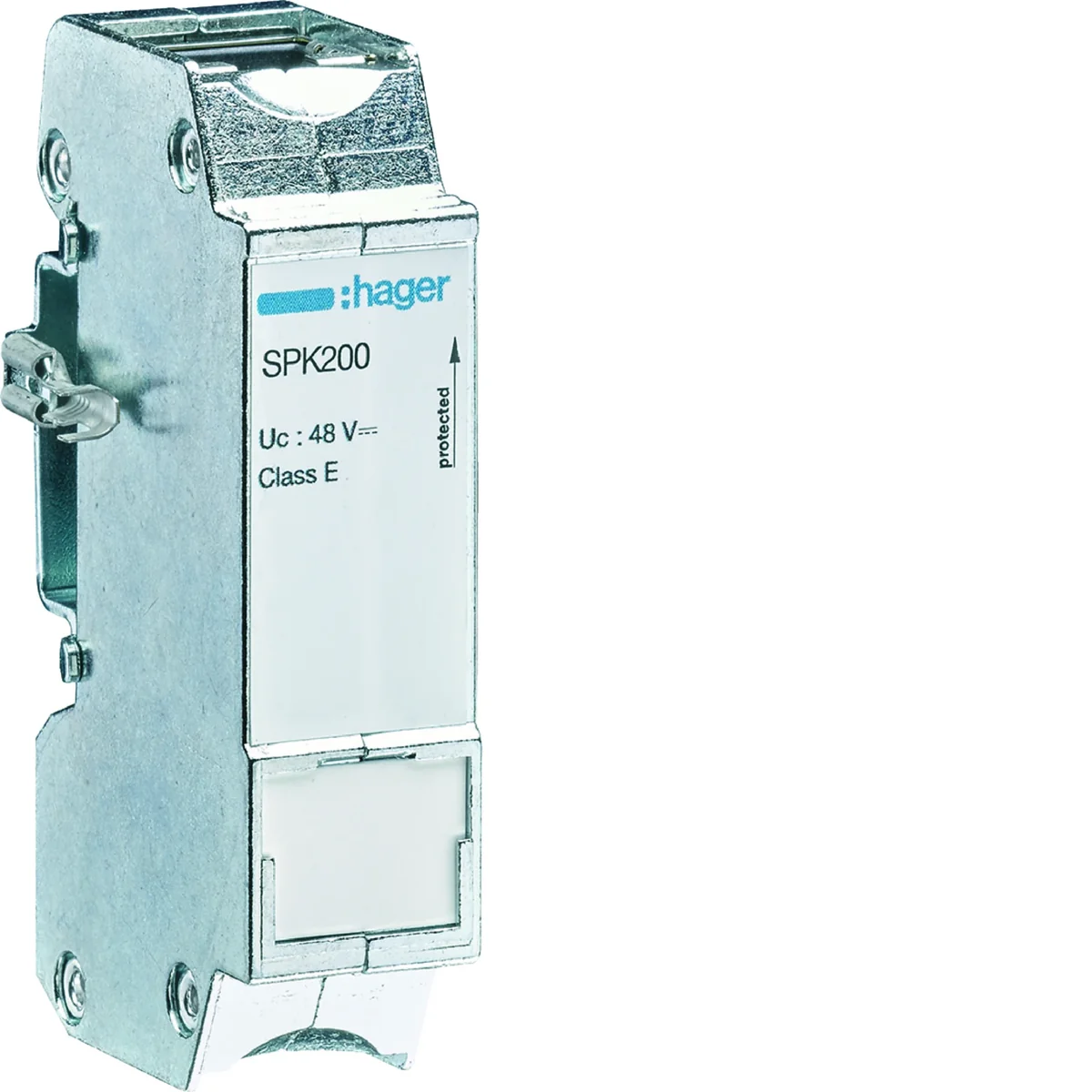

Surge arrester for computer networks, SPD series. Dedicated to networks: Ethernet, VoIP, IP CCTV, RJ45 Industrial Ethernet, ATM, Ethernet 10/100/1000, FDDI, CDDI, Power over Etherneth, Tokem Ring, AnyLAN, BACnet IP, HDSL, SHDSL. Connector: RJ45.

Series characteristics:

An efficient ICT system is the basis in the modern world. Starting from large production plants, through medium-sized companies and craft workshops, to households, we are dealing with electronic devices everywhere. Unfortunately, one of their features is high susceptibility to overvoltage. The risk of damage and the resulting costs of restoring full functionality and losses related to downtime in enterprises do not allow you to ignore this issue. When designing and implementing modern control systems, data exchange, ICT networks or systems that increase the level of security, it is absolutely necessary to remember to ensure the appropriate level of overvoltage protection.

Tightening torque [Nm]

0.4
Family

SPD
Width [mm]

19
Remote contact

NO
PKWIU

27.12.23.0

Installation

On the TH-35 rail
Level of security

IP10
Operating temperature range [°C]

From -40 to 80
Beacon

NO

Other technical data

Nominal voltage AC

48 ... 48 V
Max. continuous voltage DC

48 V
Limiting frequency

250 MHz
Connection 1

RJ45
With remote signalling contact

No

Max. continuous voltage AC

34 V
Nominal load current

1 A
Mounting method

DIN rail (top hat rail) 35 mm
Pro-active thermo-control

No
Signalling at the device

None

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	24 pcs.	432 pcs.
Weight (kg)	0,123	0,129	3,596	87,728
Width (m)	0,036	0,080	0,315	0,800
Length (m)	0,019	0,041	0,115	0,495
Depth (m)	0,078	0,098	0,360	1,200
