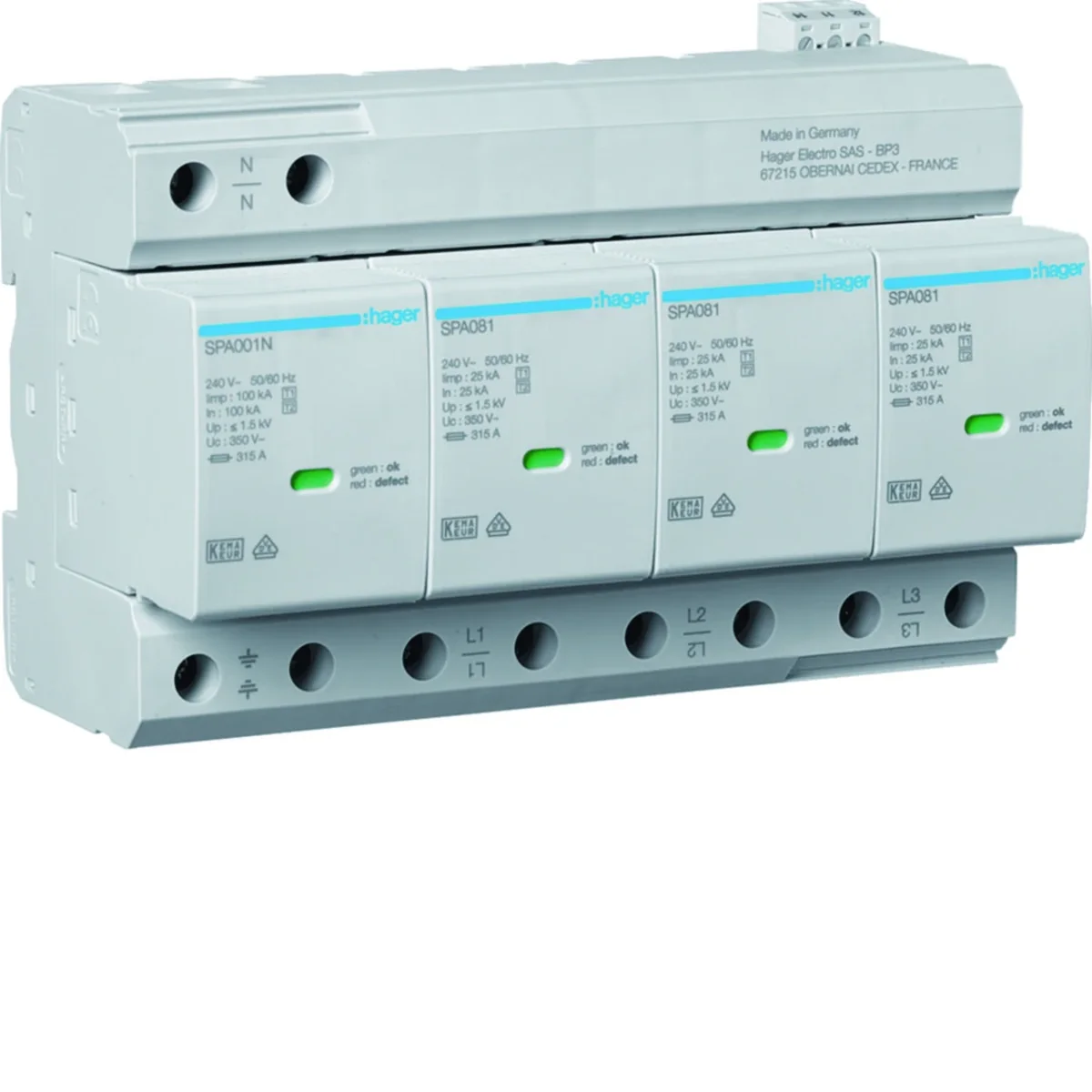

SPD Combined spark gap surge arrester T1+T2 4P TN-S/TT 100kA 1.5kV SPA801

local index:
AOC007HAGE
Catalog No:
SPA801
EAN code:
3250615514844
Manufacturer: HAGER
Family: SPD
Price:
854,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SPD Combined spark gap surge arrester T1+T2 4P TN-S/TT 100kA 1.5kV

Technical data

  • Family
    SPD
  • PKWIU
    27.12.23.0

Other technical data

  • System configuration DC
    No
  • System configuration TN
    No
  • System configuration TN-C-S
    No
  • System configuration TT
    Yes
  • Number of conductors (without earthing)
    4
  • Nominal discharge surge current (8/20)
    25 kA
  • Nominal voltage AC
    400 V
  • Voltage protection level L-N
    1.5 kV
  • Follow current extinguishing capability
    25 kA
  • Construction size
    8 modular spacing
  • Max. conductor cross section flexible (fine-strand)
    35 mm²
  • Exhausting
    No
  • Category type 1
    Yes
  • Suitable for outdoor use
    No
  • System configuration IT
    No
  • System configuration TN-C
    No
  • System configuration TN-S
    Yes
  • System configuration other
    No
  • Lightning impulse current (10/350 µs)
    25 kA
  • Max. continuous voltage AC
    350 V
  • Voltage protection level
    1.5 kV
  • Voltage protection level N-PE
    1.5 kV
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Max. conductor cross section solid (solid, stranded)
    35 mm²
  • With remote signalling contact
    Yes
  • Signalling at the device
    Optical
  • Integrated backup fuse
    No
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 7 pcs. 168 pcs.
Weight (kg) 1,365 1,520 11,090 289,160
Width (m) 0,143 0,140 0,315 0,800
Length (m) 0,095 0,100 0,215 1,050
Depth (m) 0,074 0,180 0,365 1,200
