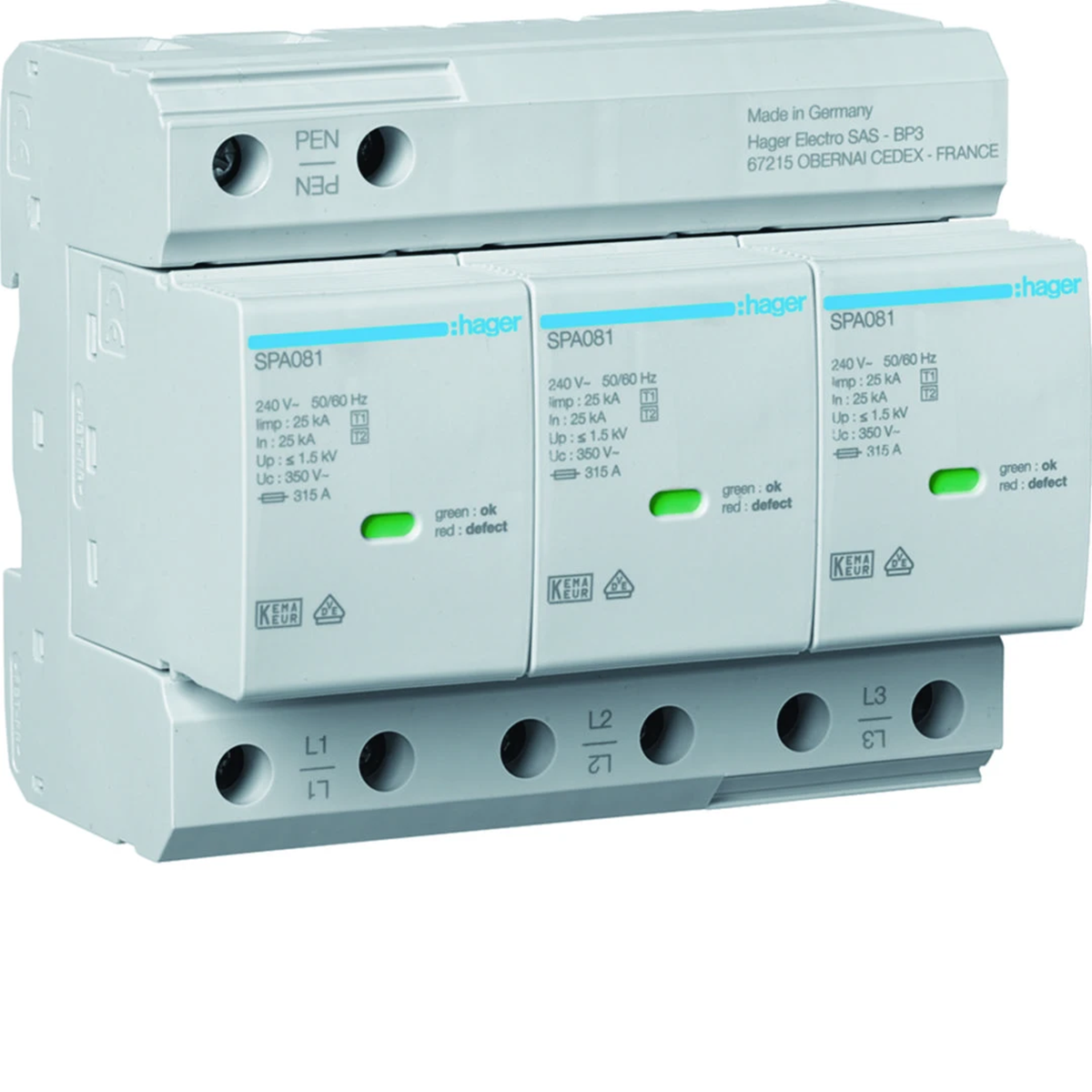

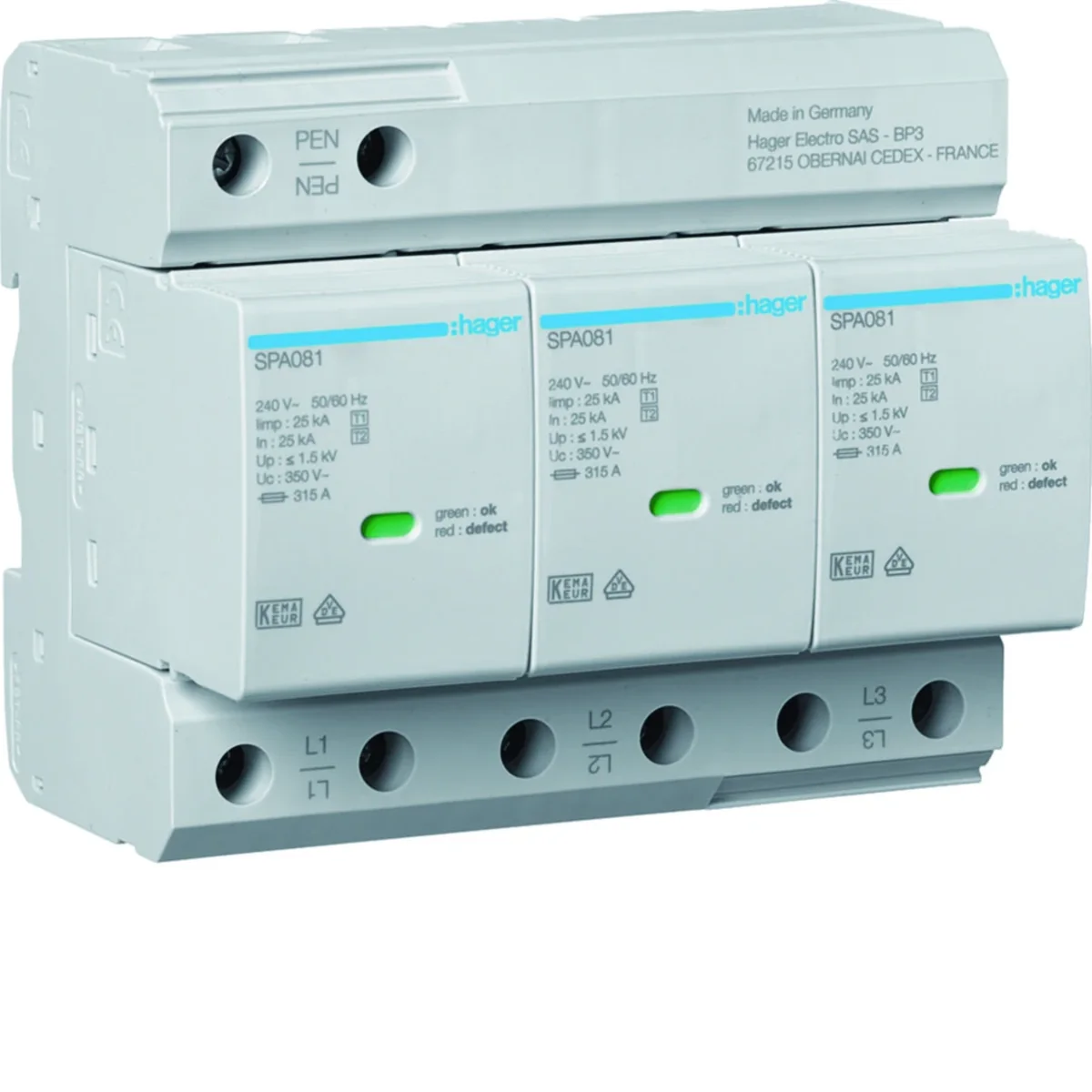

SPD Combined spark gap surge arrester T1+T2 3P TN-C 75kA 1.5kV SPA800
local index:
AOC063HAGE
Catalog No:
SPA800
EAN code:
3250615514837
Manufacturer:
HAGER
Family: SPD
Price:
680,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
SPD Combined spark gap surge arrester T1+T2 3P TN-C 75kA 1.5kV
Technical data
-
FamilySPD
Other technical data
-
System configuration DCNo
-
System configuration TNNo
-
System configuration TN-C-SNo
-
System configuration TTNo
-
Number of conductors (without earthing)3
-
Nominal discharge surge current (8/20)25 kA
-
Nominal voltage AC400 V
-
Voltage protection level L-N1.5 kV
-
Follow current extinguishing capability25 kA
-
Construction size6 modular spacing
-
Max. conductor cross section flexible (fine-strand)35 mm²
-
ExhaustingNo
-
Category type 1Yes
-
Suitable for outdoor useNo
-
System configuration ITNo
-
System configuration TN-CYes
-
System configuration TN-SNo
-
System configuration otherNo
-
Lightning impulse current (10/350 µs)25 kA
-
Max. continuous voltage AC350 V
-
Voltage protection level1.5 kV
-
Voltage protection level N-PE1.5 kV
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Max. conductor cross section solid (solid, stranded)35 mm²
-
With remote signalling contactYes
-
Signalling at the deviceOptical
-
Integrated backup fuseNo
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 7 pcs. | 168 pcs. |
| Weight (kg) | 1,063 | 1,240 | 9,125 | 242,000 |
| Width (m) | 0,107 | 0,140 | 0,315 | 0,800 |
| Length (m) | 0,095 | 0,100 | 0,210 | 0,990 |
| Depth (m) | 0,074 | 0,175 | 0,360 | 1,200 |
