HAGER

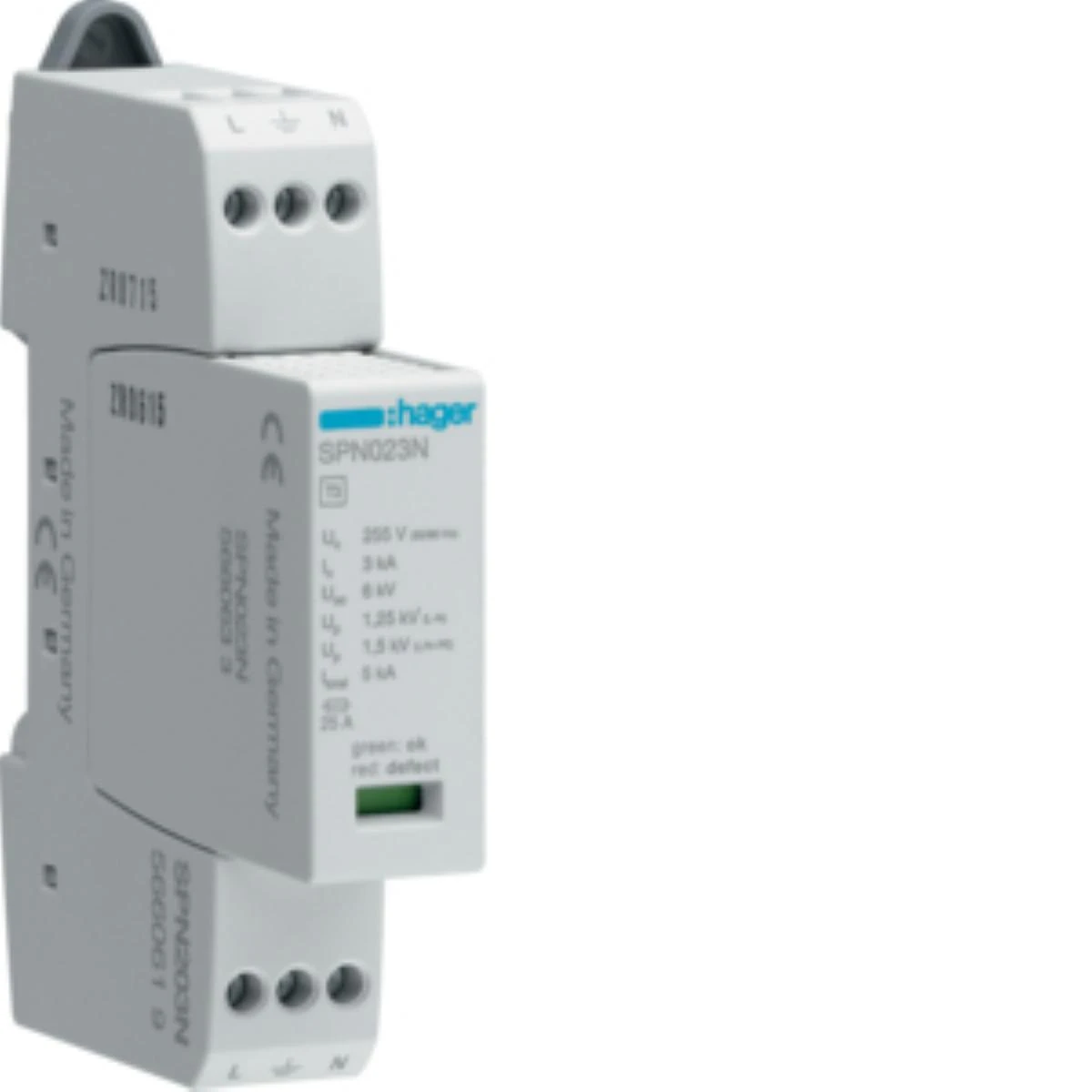

SPD 1P+N arrester with replaceable modules 3kA class 3 with indicator SPN203N

local index:
AOC013HAGE
Catalog No:
SPN203N
EAN code:
3250615660619
Price:
174,54 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

SPD 1P+N arrester with replaceable modules 3kA class 3 with indicator

Technical data

  • Rated frequency [Hz]
    60
  • Installation
    On the TH-35 rail
  • Level of security
    IP20
  • Rated switching voltage [V]
    230
  • Remote contact
    NO
  • storage temperature [°C]
    From -40 to 80
  • Number of poles
    1P+N
  • Maximum continuous operating voltage [V]
    255
  • Operating temperature range [°C]
    from -40 to 60
  • Number of modules
    1
  • Beacon
    Failure indication

Other technical data

  • Max. continuous voltage AC
    255 V
  • Voltage protection level L-N
    1.25 kV
  • Max. conductor cross section solid (solid, stranded)
    0.5 mm²
  • With remote signalling contact
    no
  • Degree of protection (IP)
    IP20
  • Voltage protection level
    1.5 kV
  • Voltage protection level L-PE/N-PE
    1.5 kV
  • Max. conductor cross section flexible (fine-strand)
    0.5 mm²
  • Category type 3
    yes
