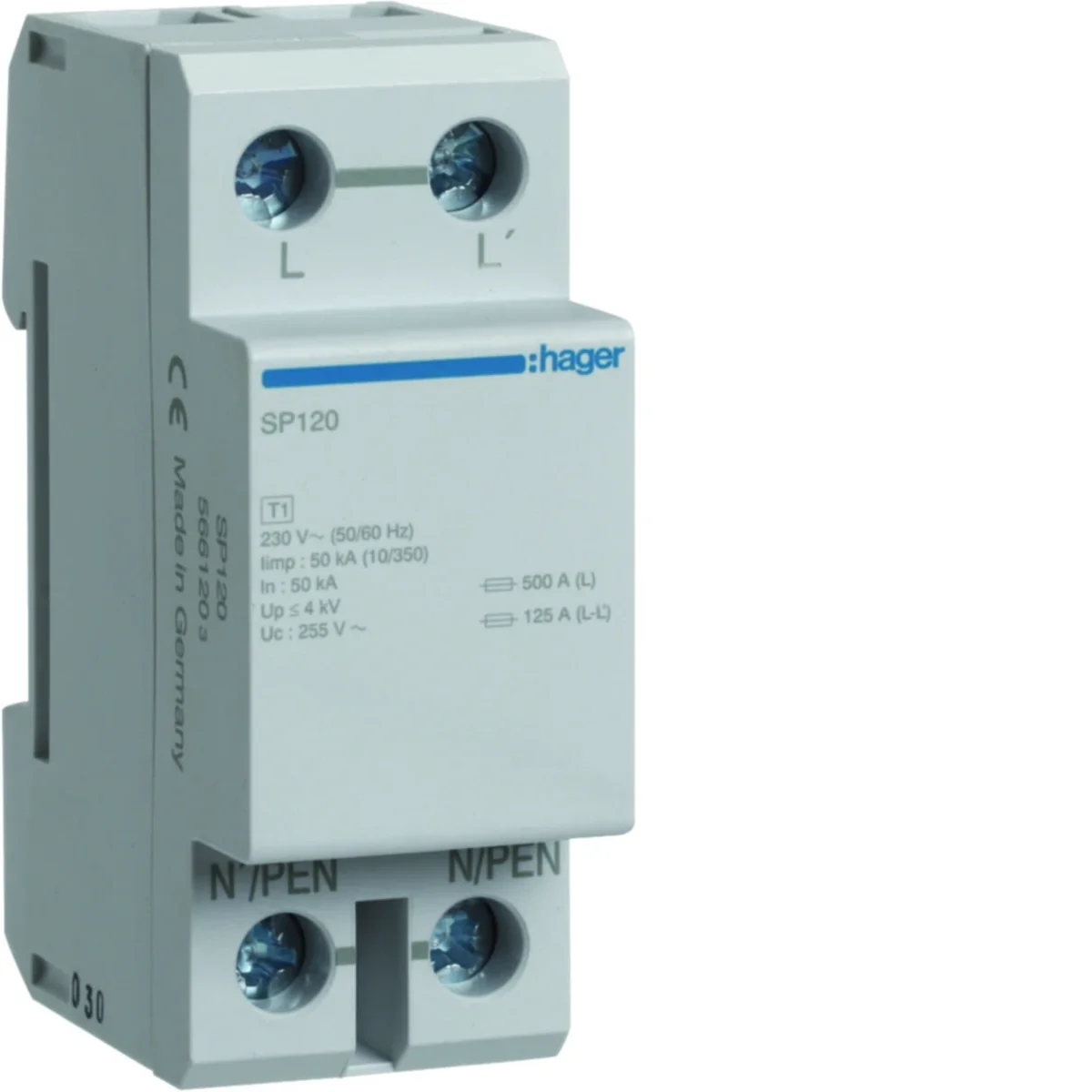

Single-pole lightning arrester B 50kA SP120

Name: Single-pole lightning arrester B 50kA
Brand: HAGER
SKU: AOC003HAGE
Price: 145.79 PLN

local index:

AOC003HAGE

Catalog No:

SP120

EAN code:

3250615661203

Click on the photo to enlarge

Manufacturer: HAGER

Rated frequency [Hz]: 60

Number of poles: 2

Tightening torque [Nm]: 3.6

See full description

Price:

145,79 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

A single-pole product, which also gives the possibility of introducing limiters in the pre-meter area when powered. Such a situation takes place with the use of non-exhaust limiters.

Technical data

Rated frequency [Hz]

60
Tightening torque [Nm]

3.6
Maximum continuous operating voltage [V]

255
Width [mm]

36
Rated switching voltage [V]

230
Remote contact

NO
storage temperature [°C]

From -40 to 80
Conductor cross-section (wire) [mm²]

50

Number of poles

2
Installation

On the TH-35 rail
Level of security

IP20
Operating temperature range [°C]

From -40 to 80
Number of modules

2
Beacon

NO
Wire cross-section (cord) [mm²]

35
PKWIU

27.12.23.0

Other technical data

Max. continuous voltage AC

255 V
Voltage protection level

4 kV
Mounting method

DIN rail (top hat rail) 15 mm
Exhausting

No
Category type 1

Yes
Degree of protection (IP)

IP20

Nominal voltage AC

230 V
Voltage protection level N-PE

4 kV
With remote signalling contact

No
Signalling at the device

None
Suitable for outdoor use

No

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	60 pcs.	1440 pcs.
Weight (kg)	0,258	0,326	19,940	501,560
Width (m)	0,035	0,080	0,315	0,800
Length (m)	0,090	0,040	0,210	0,990
Depth (m)	0,064	0,100	0,362	1,200
