Ridge tile holder 210 mm Z-bolt H=10 cm hot-dip galvanized and powder coated D463048

Name: Ridge tile holder 210 mm Z-bolt H=10 cm hot-dip galvanized and powder coated
Brand: AN-KOM
SKU: AOK068ANKO
Price: 6.49 PLN

local index:

AOK068ANKO

Catalog No:

D463048

EAN code:

5907770502909

Ridge tile holder 210 mm Z-bolt H=10 cm hot-dip galvanized and powder coated

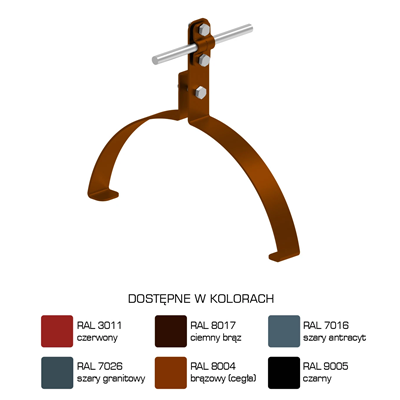

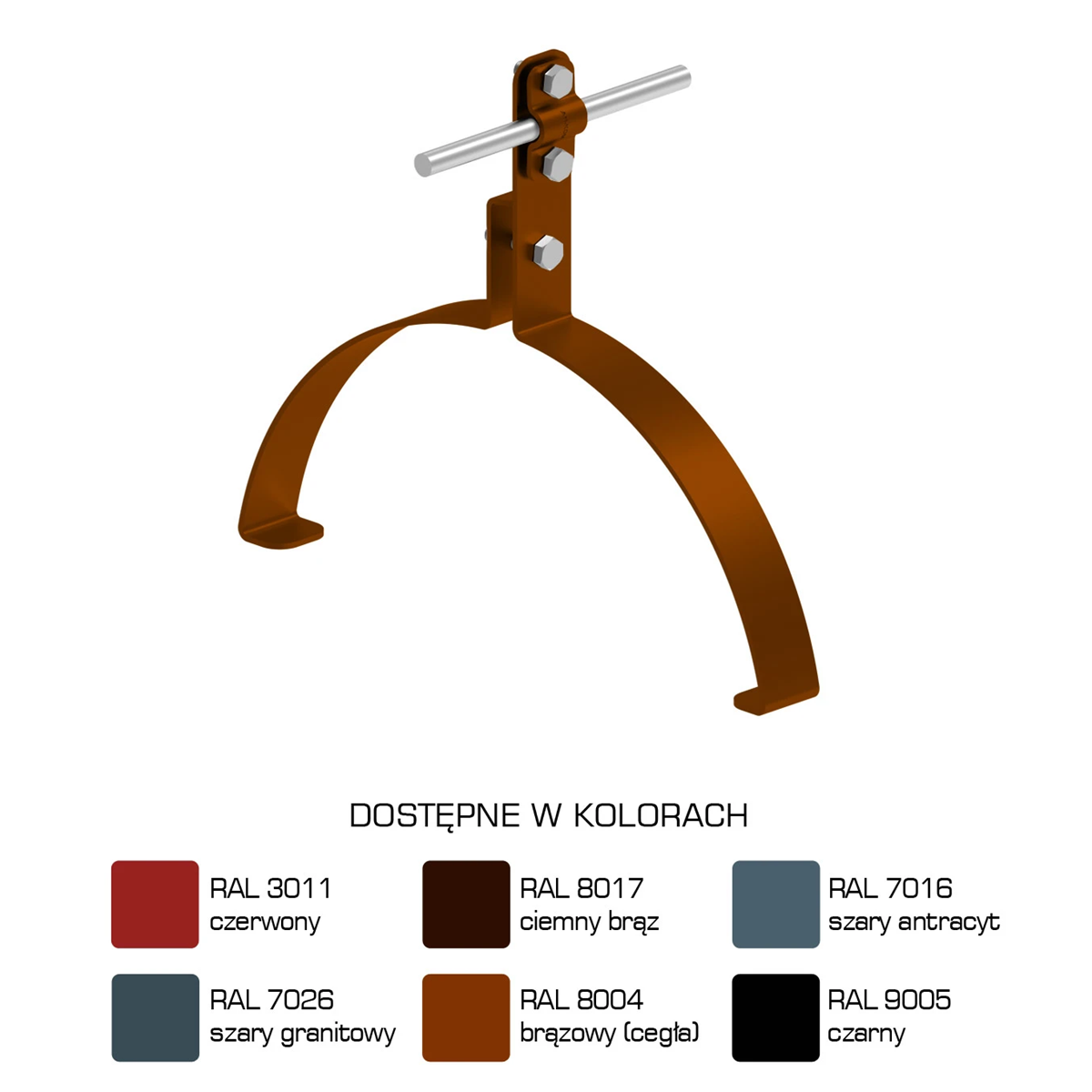

Click on the photo to enlarge

Manufacturer: AN-KOM

Material: steel

screws: M6x16, M6x25

Cable dimensions [mm]: 6-8

See full description

Price:

6,49 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Universal ridge ridge holders mounted to most cylindrical ridge tiles. Selection of the appropriate handle is done by checking the range K. Hd=70mm, pattern=1.

Technical data

Material

steel
Cable dimensions [mm]

6-8
Surface protection

Lacquer
PKWIU

25.99.29.0

screws

M6x16, M6x25
Height [mm]

96
Clamping range [mm]

297-307

Other technical data

Mounting type conductor

With screw clamp
Application

Ridge/hip
Chucking range

297 ... 307 mm
Material of carrier

Stal ocynkowana ogniowo

Conductor diameter

6 ... 8 mm
Mounting method

Clampable
Material of holder

Stal ocynkowana ogniowo
Length carrier

96 mm

Manufacturer details

Manufacturer

AN-KOM 2 Sp. z o.o.
Address

34-120 Inwałd ks. W. Bukowińskiego 15 Polska
E-mail

biuro@an-kom.pl

Bulk packaging

A kind of package		Karton
Quantity	1 pcs.	50 pcs.
Weight (kg)	0,227	11,550
Volume (m3)	-	0,016
Width (m)	0,065	0,200
Length (m)	0,220	0,300
Depth (m)	0,025	0,270
