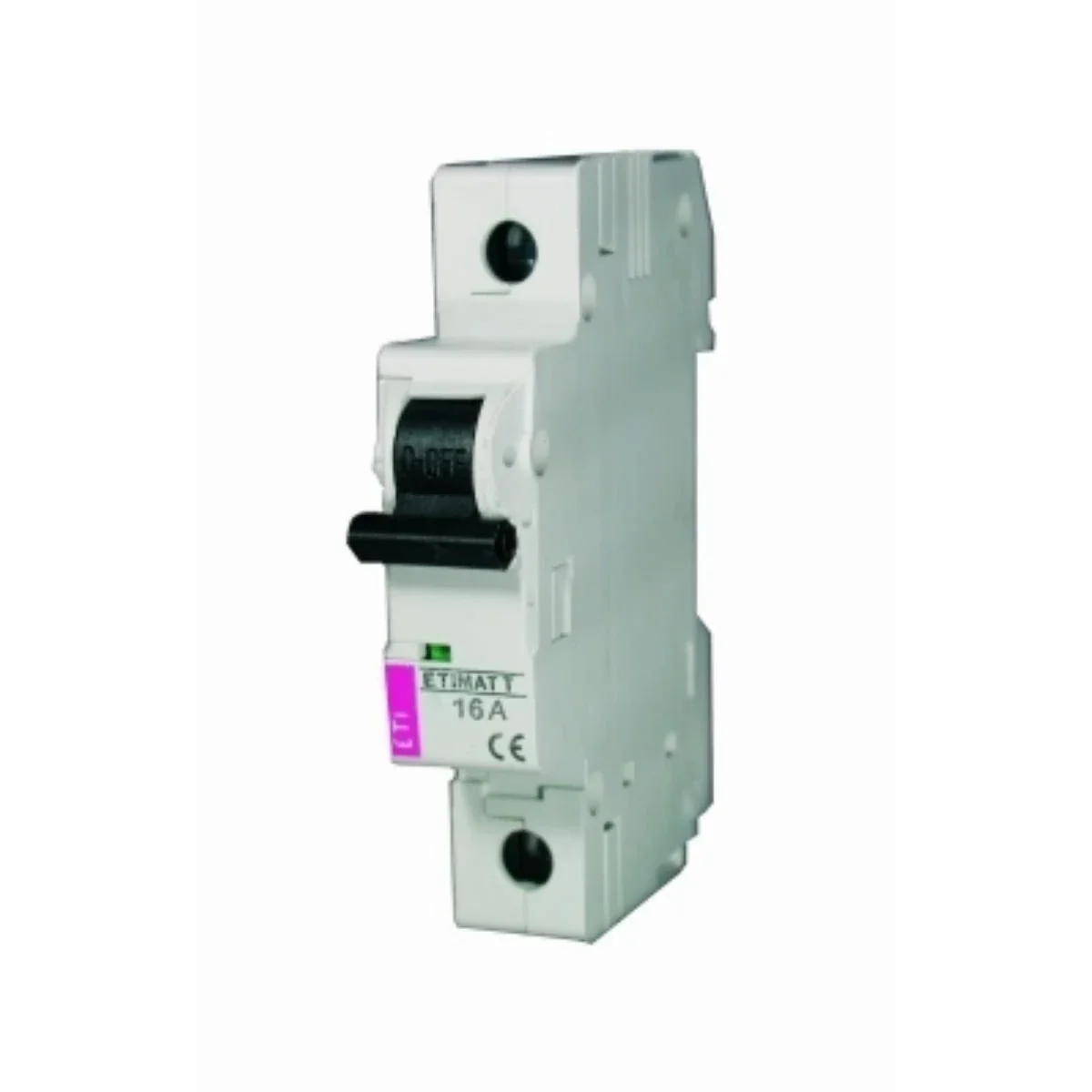

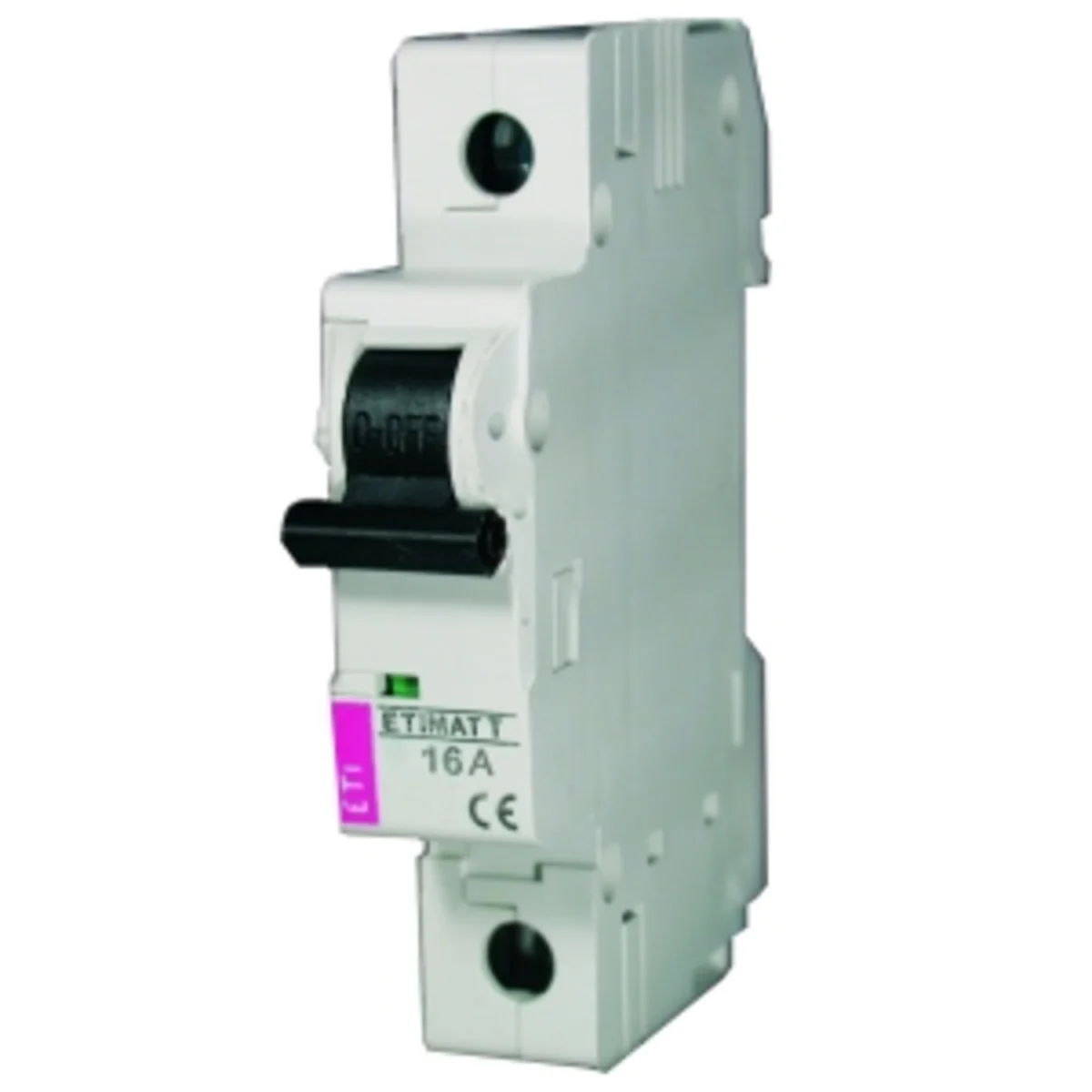

Power limiter ETIMAT T 1P 63A 002181085

local index:
AOC019ETIP
Catalog No:
002181085
EAN code:
5904723003896
Manufacturer: ETI POLAM
Number of poles: 1
Rated current [A]: 6
Short-circuit current [kA]: 63
Price:
21,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The ETIMAT T power limiter (overcurrent circuit breaker) is intended for installation in the switchgear as pre-meter protection. The purpose of this protection is selective switching off in relation to the Z4 overcurrent protection of the recipient. The rated current of the ETIMAT T power limiter is matched to the connection/contractual power of the recipient. ETIMAT T power limiters in terms of their rated currents replace selective circuit breakers. The ETIMAT T power limiter is an overcurrent circuit breaker without a short-circuit element and has only an overload (thermal) element. Sealed circuit breaker (blocked access to its current terminals) is installed in the switchgear so that its drive lever is available to the recipient, who in the event of automatic activation due to exceeding the connection capacity or for other reasons, can independently switch it on without calling the power company team.

Advantages:

  •  reduces (limits) electricity consumption
  •  ensures overload selectivity with other devices overcurrent
  •  can be sealed.

Technical data

  • Number of poles
    1
  • Short-circuit current [kA]
    63
  • PKWIU
    27.12.22.0
  • Rated current [A]
    6
  • Short-circuit breaking capacity [kA]
    6

Other technical data

  • Mounting method
    DIN rail
  • Rated permanent current Iu
    63 A
  • Conditioned rated short-circuit current Iq
    6 kA
  • Short-circuit current limiter
    No

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 12 pcs. 108 pcs.
Weight (kg) 1,440 -
Volume (m3) 0,002 -
Width (m) 0,092 -
Length (m) 0,220 -
Depth (m) 0,078 -
