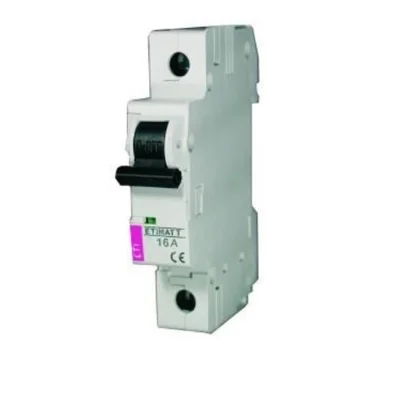

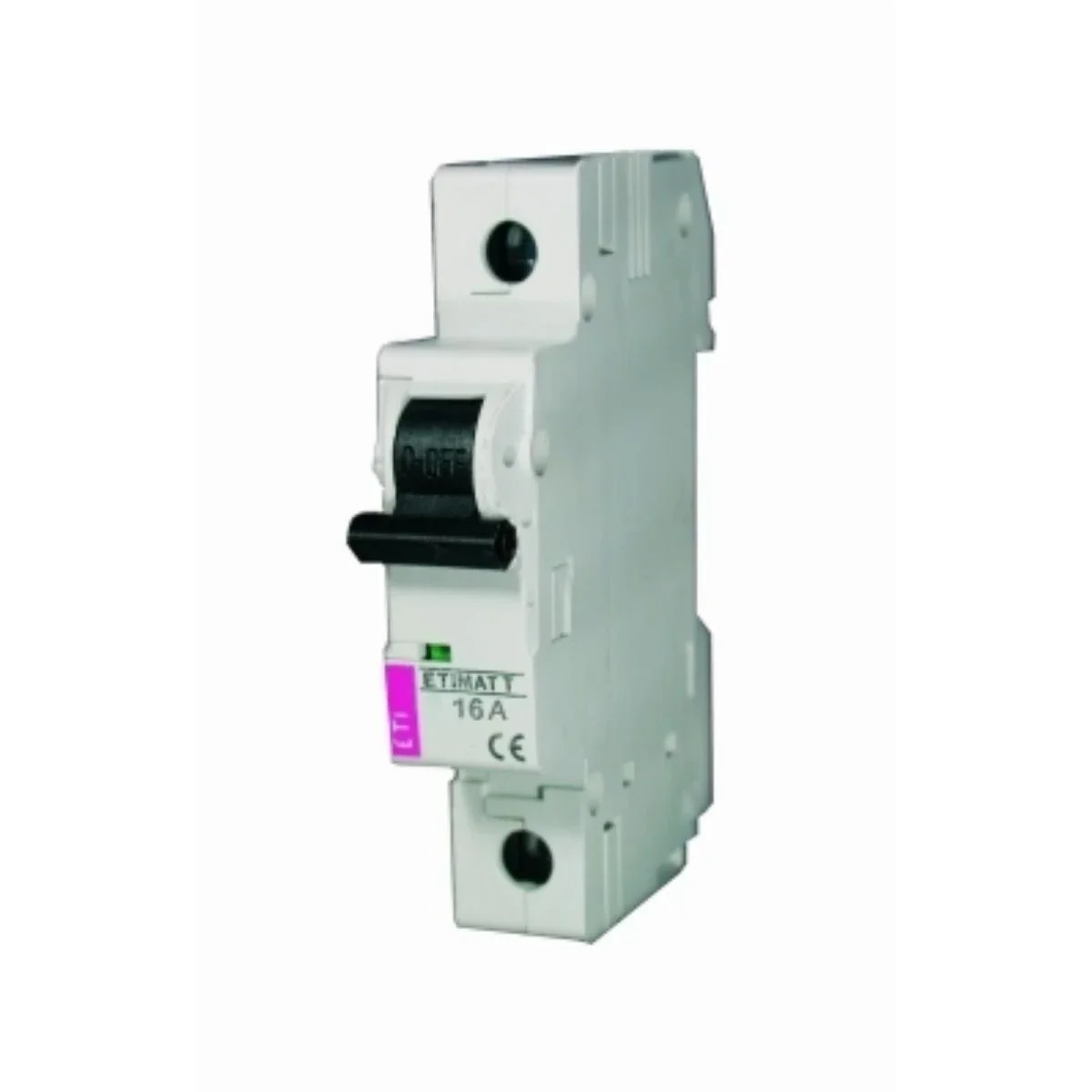

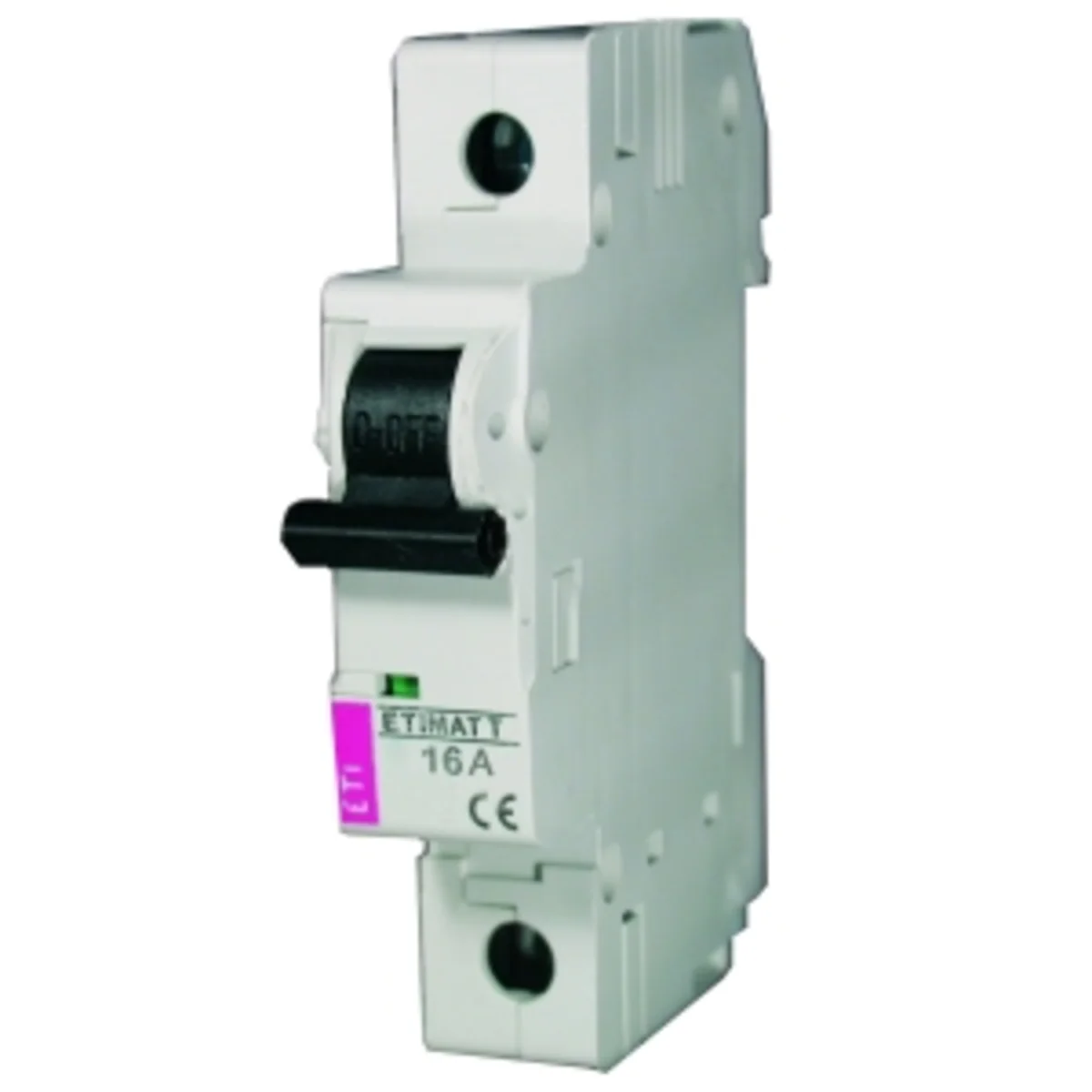

Power limiter ETIMAT T 1P 16A 002181073

local index:
AOC022ETIP
Catalog No:
002181073
EAN code:
5904722987869
Manufacturer: ETI POLAM
Number of poles: 1
Rated current [A]: 16
Short-circuit current [kA]: 6
Price:
14,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The ETIMAT T power limiter (overcurrent circuit breaker) is intended for installation in the switchgear as pre-meter protection. The purpose of this protection is selective switching off in relation to the Z4 overcurrent protection of the recipient. The rated current of the ETIMAT T power limiter is matched to the connection/contractual power of the recipient. ETIMAT T power limiters in terms of their rated currents replace selective circuit breakers. The ETIMAT T power limiter is an overcurrent circuit breaker without a short-circuit element and has only an overload (thermal) element. Sealed circuit breaker (blocked access to its current terminals) is installed in the switchgear so that its driving lever is available to the recipient, who in the event of spontaneous activation due to exceeding the connection capacity or for other reasons, can independently switch it on without summoning the power company team.

Advantages:

  •  limits (limits) electricity consumption
  •  ensures overload selectivity with other devices overcurrent
  •  can be sealed.

Technical data

  • Number of poles
    1
  • Short-circuit current [kA]
    6
  • Rated current [A]
    16
  • PKWIU
    27.12.22.0

Other technical data

  • Mounting method
    DIN rail
  • Rated permanent current Iu
    16 A
  • Conditioned rated short-circuit current Iq
    6 kA
  • Short-circuit current limiter
    No

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 12 pcs. 108 pcs.
Weight (kg) 1,440 -
Volume (m3) 0,002 -
Width (m) 0,092 -
Length (m) 0,220 -
Depth (m) 0,078 -
