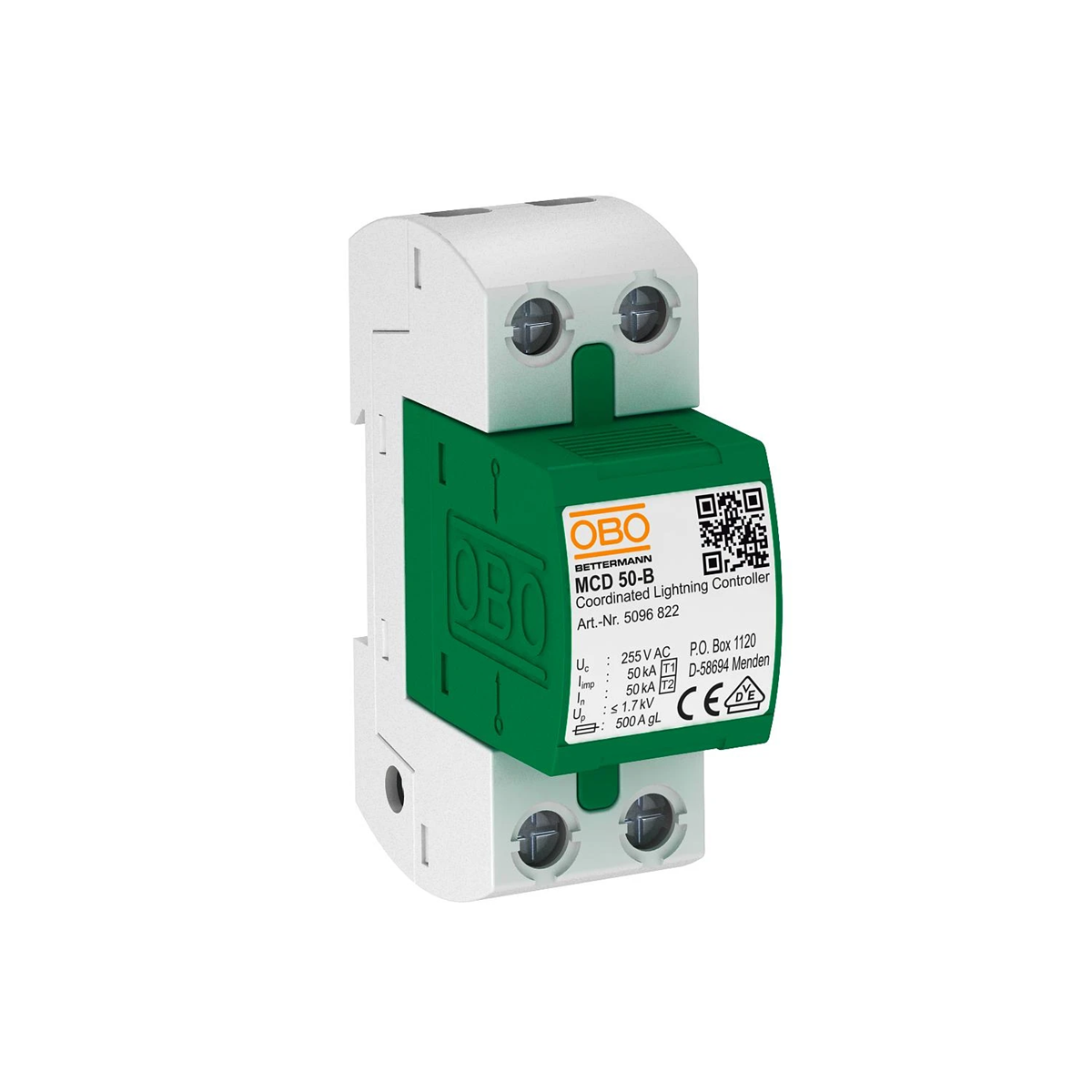

Combi surge arrester Type 1
• The voltage protection level <1.3 kV provides equipment protection
• For potential equalization in lightning protection according to VDE 0185-305 (IEC 62305)
• Surge current carrying capacity 50 kA (10/350) per pole and up to 150 kA (10/350) total
• Replaceable inserts with disconnection protection, also with optical damage signaling
• Follow current extinguishing capacity 25 kA Ipeak, does not require back-up protection up to 500 A gL/gG
• For use in the pre-meter area in accordance with VDEW guidelines
• Closed spark gap arrester, non-exhaust, for use in all types of enclosures and switchboards
Application: industrial installations and buildings in the highest lightning protection class: I to IV

Rated voltage [V]

230
PKWIU

27.12.23.0

Execution

1-pole

Manufacturer details

Manufacturer

OBO Bettermann Polska Sp. z o.o.
Address

02-495 Warszawa Kazimierza Gierdziejewskiego 7
Tax identification number

5211001039
GLN

5900009931563

A kind of package	Skrzynia	Karton	Paleta
Quantity	1 pcs.	22 pcs.	1672 pcs.
Weight (kg)	0,378	8,489	667,664
Volume (m3)	0,000	0,008	0,912
Width (m)	0,076	0,192	0,800
Length (m)	0,102	0,235	1,200
Depth (m)	0,044	0,188	0,950
