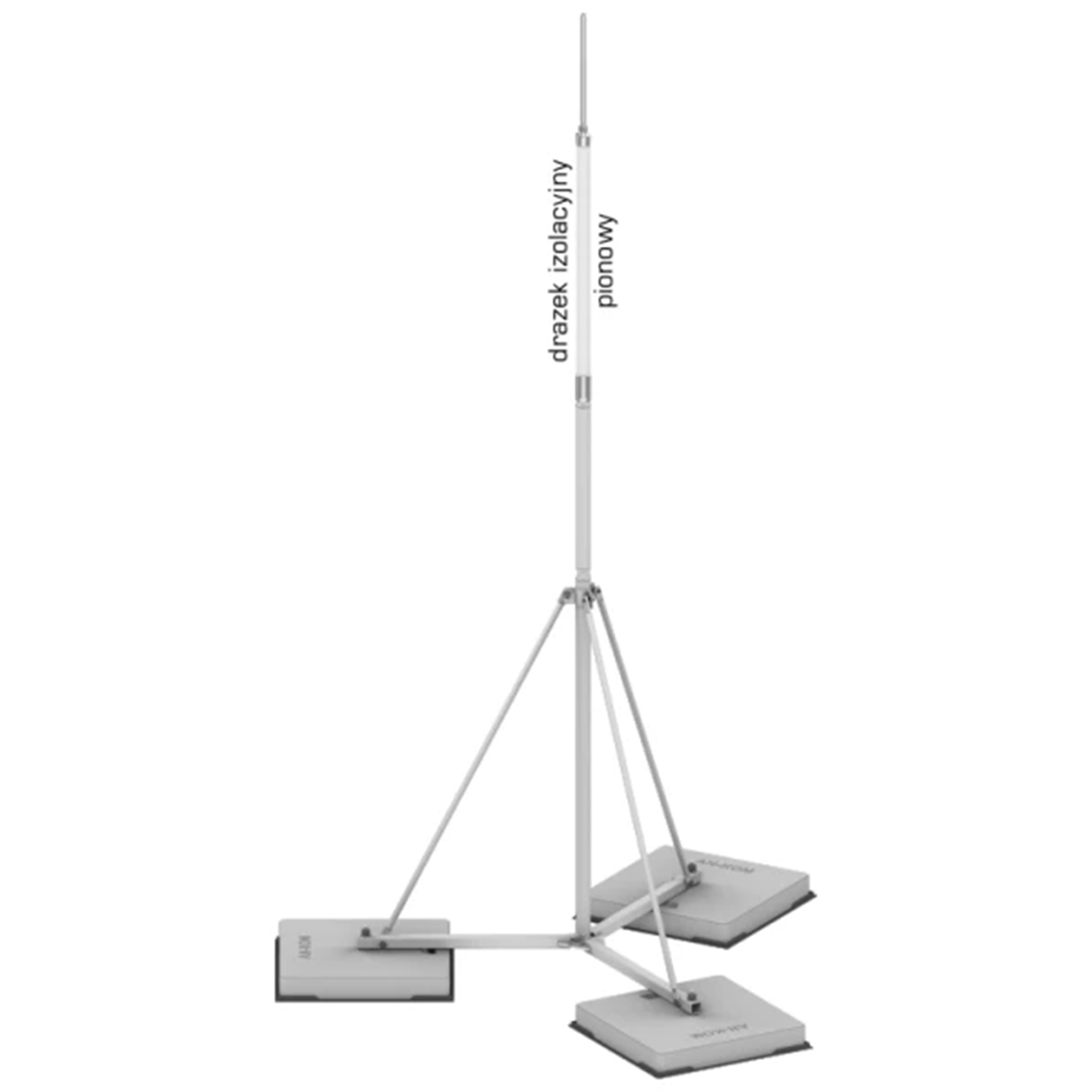

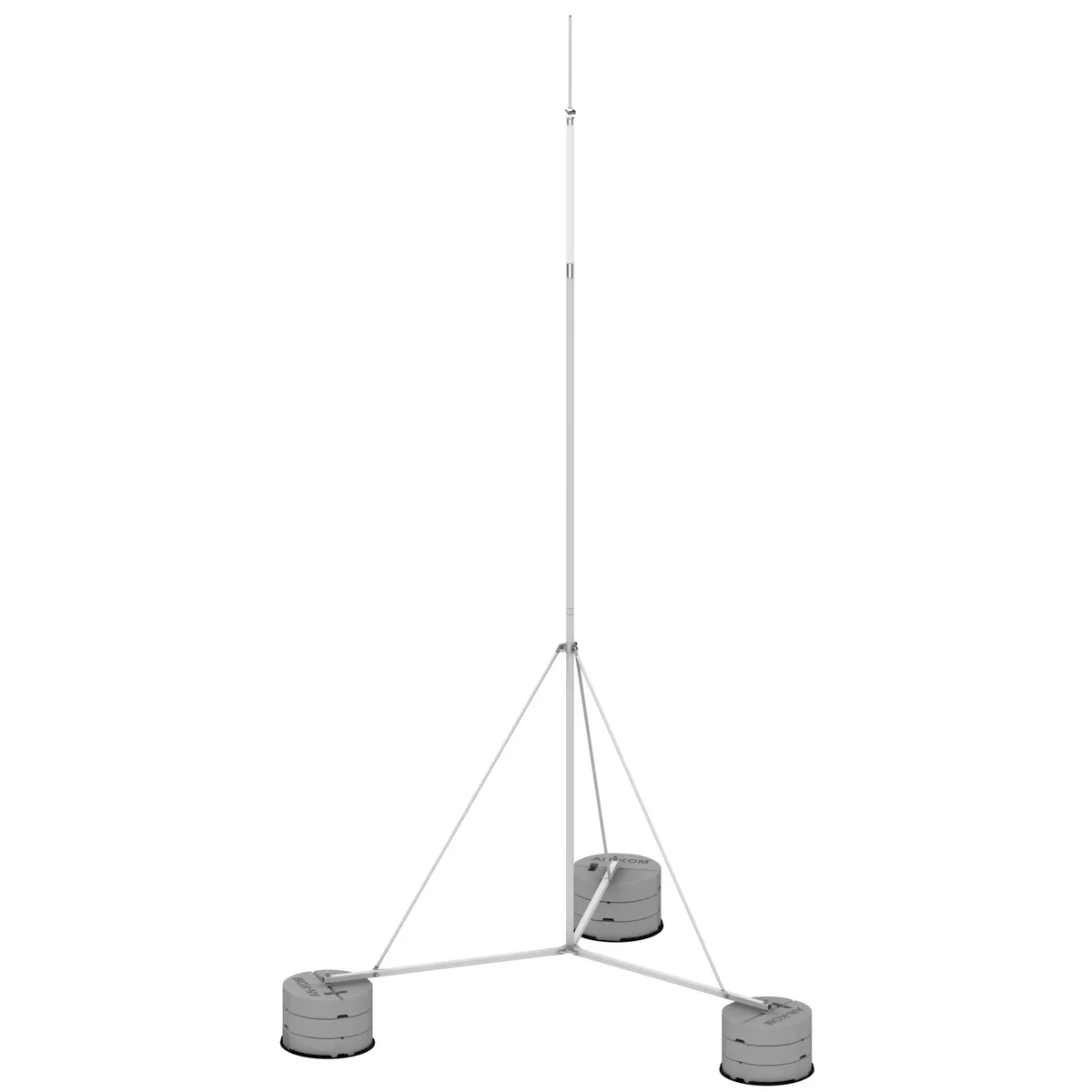

Mast on a tripod for high-voltage insulated cables, height 7000mm PW H196228

local index:
AON143ANKO
Catalog No:
H196228
EAN code:
5907770523676
Price:
654,54 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
Large-size product
From 69,28 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Tripod masts for high-voltage insulated cable, designed to protect devices on the roofs of industrial facilities in places where it is not possible to maintain an intrinsically safe distance. The lightning current from the mast spire is discharged through a high-voltage insulated wire.

Technical data

  • Material
    Hot-dip galvanized steel
  • Mast diameter [mm]
    3380/70
  • Cable dimensions [mm]
    8-10
  • Wind zone of the Republic of Poland
    I, III
  • Weight [kg]
    3 x 40
  • Height [mm]
    7000

Other technical data

  • Długość/wysokość
    7000 mm
  • Model
    Interception rod with tripod
  • Surface protection
    Hot-dip galvanized
  • High-voltage-proof insulated model
    yes
  • Diameter
    10 ... 33.7 mm
  • Material
    Steel
  • Connection
    Round conductor
