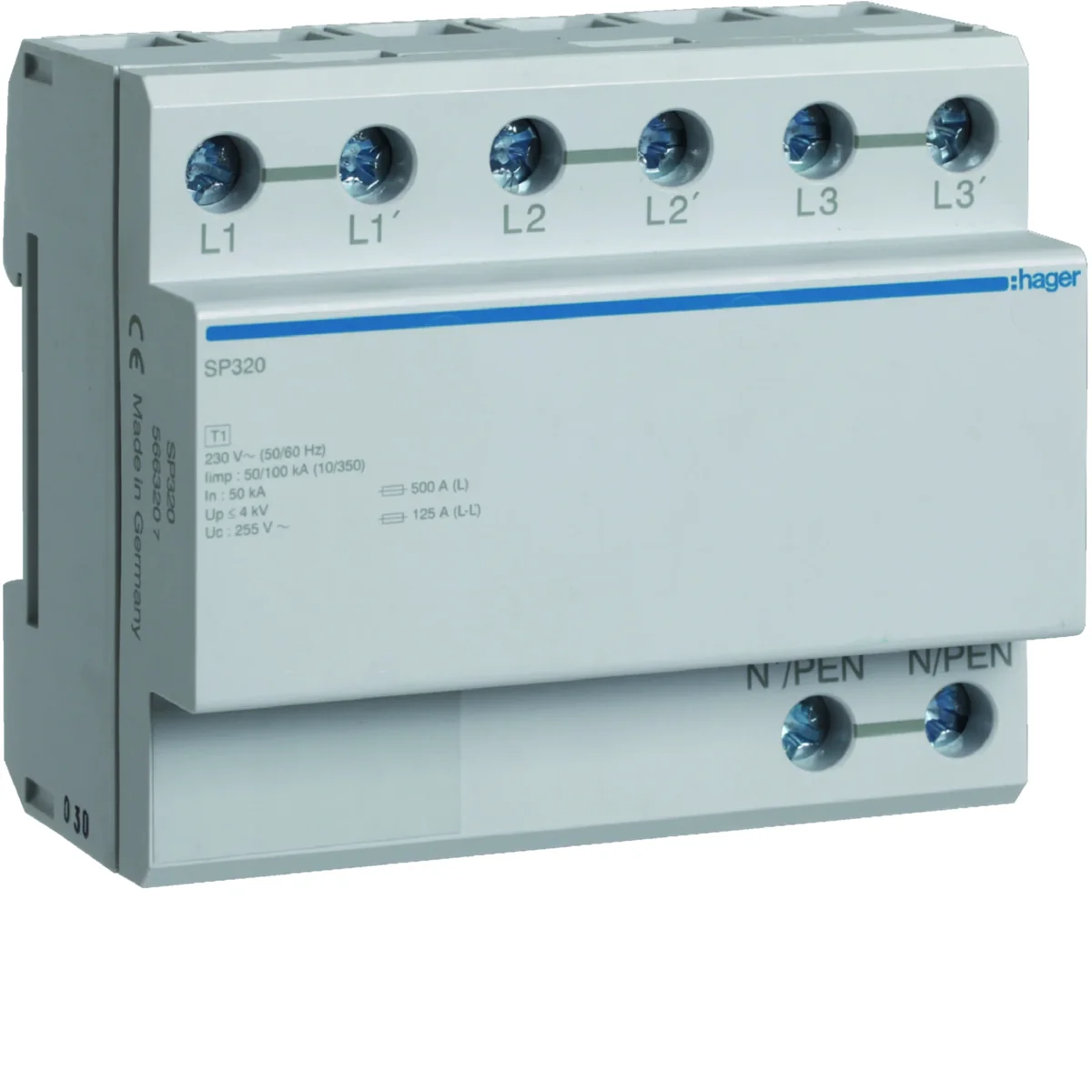

Lightning arrester, B, 3-pole, 100kA SP320

local index:
AOC002HAGE
Catalog No:
SP320
EAN code:
3250615663207
Manufacturer: HAGER
Number of modules: 4
Number of poles: 3
Maximum discharge current [kA]: 100
Price:
403,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Lightning arrester, B, 3-pole, 100kA

Technical data

  • Number of modules
    4
  • Maximum discharge current [kA]
    100
  • Voltage protection level [kV]
    4
  • Number of modules
    4
  • Number of poles
    3
  • Rated voltage [V]
    230
  • Width [mm]
    72
  • PKWIU
    27.12.23.0

Other technical data

  • Max. continuous voltage AC
    255 V
  • Voltage protection level
    4 kV
  • Mounting method
    DIN rail (top hat rail) 15 mm
  • Exhausting
    No
  • Category type 1
    Yes
  • Degree of protection (IP)
    IP20
  • Nominal voltage AC
    230 V
  • Voltage protection level L-N
    4 kV
  • With remote signalling contact
    No
  • Signalling at the device
    None
  • Suitable for outdoor use
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 12 pcs. 288 pcs.
Weight (kg) 0,612 0,919 11,414 296,936
Width (m) 0,070 0,110 0,318 0,800
Length (m) 0,090 0,084 0,211 0,994
Depth (m) 0,064 0,131 0,366 1,200
