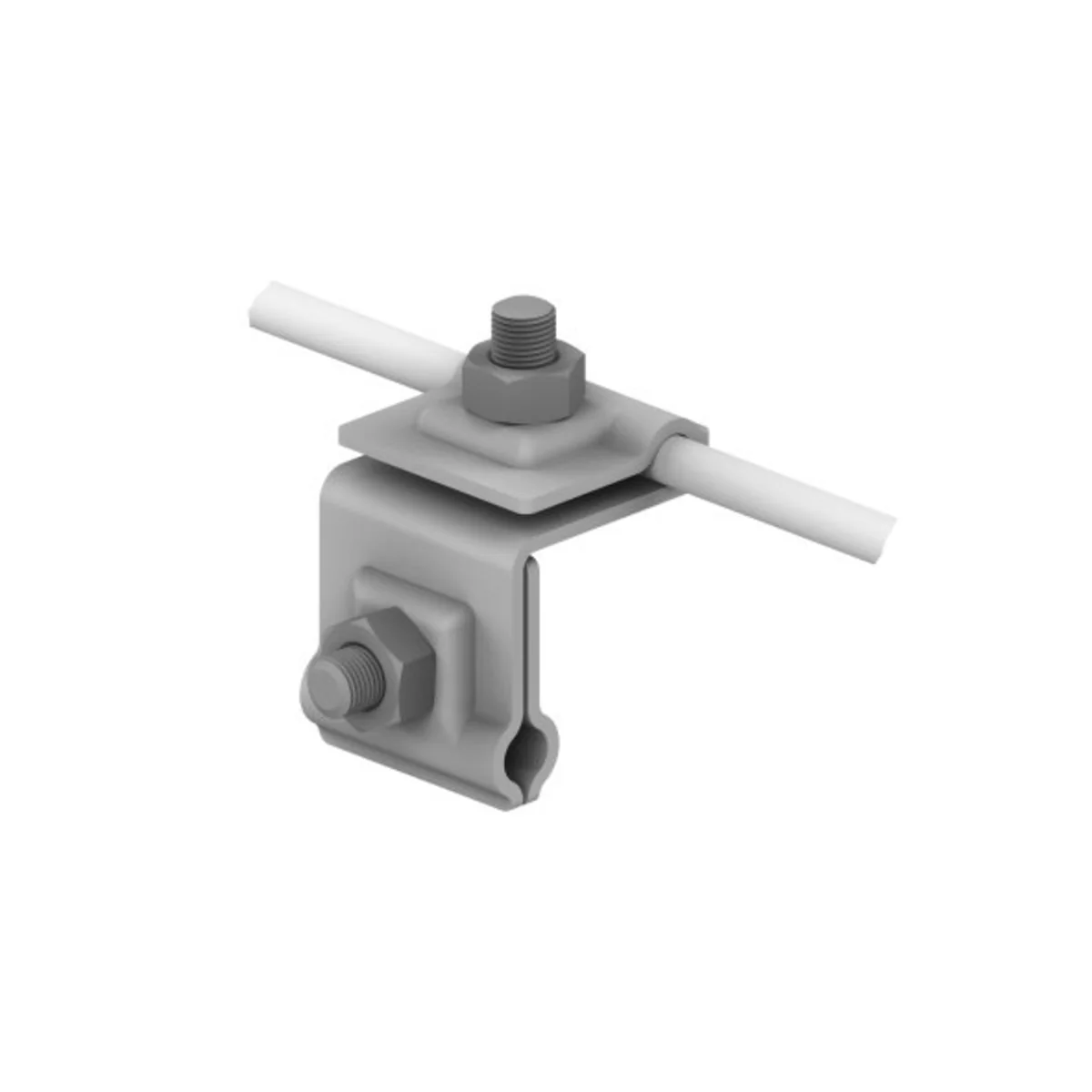

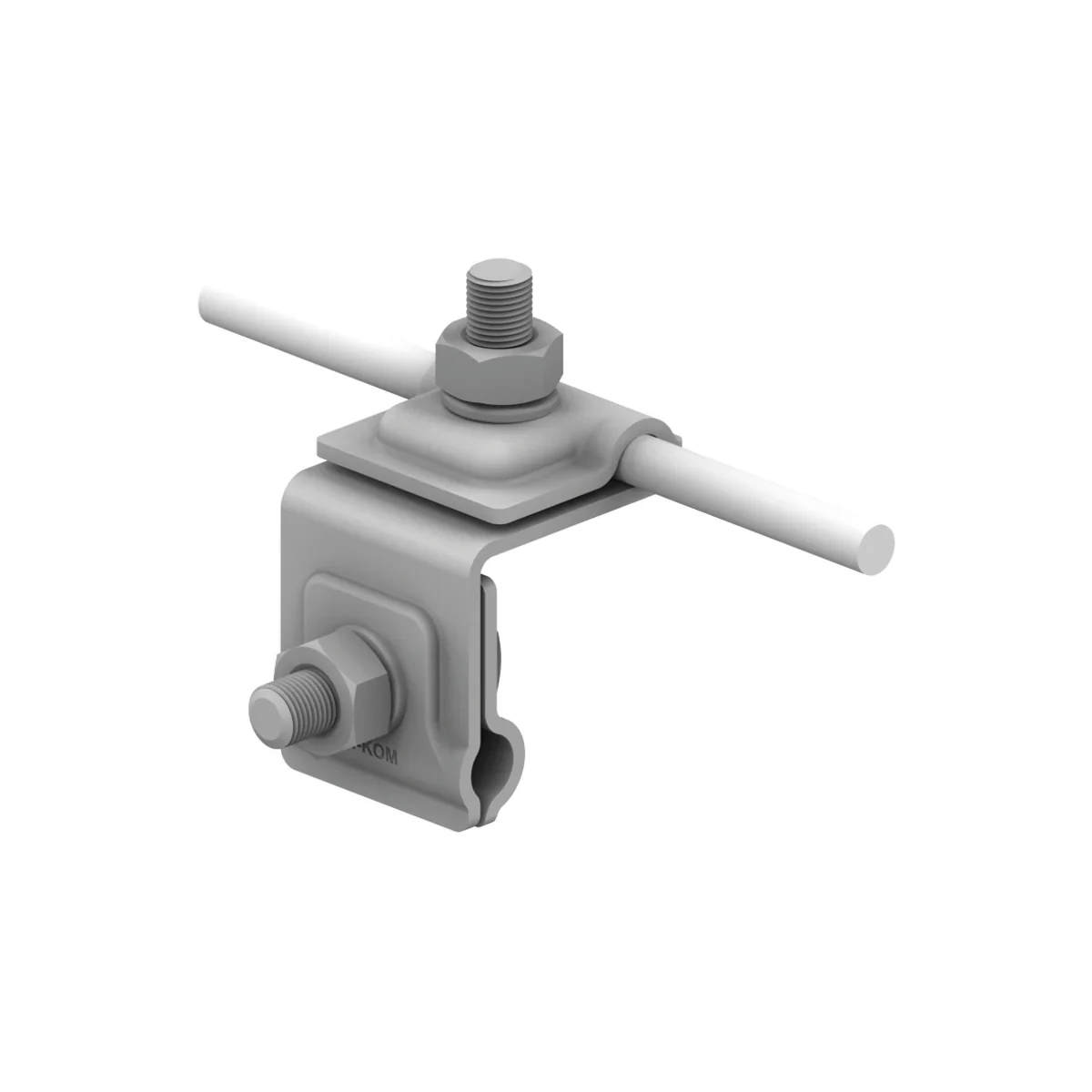

Hot-dip galvanized steel sheet holder C192008
local index:
AOK019ANKO
Catalog No:
C192008
EAN code:
5907770514940
Price:
3,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
They are used for the installation of cables on roofs covered with sheet metal along and across the rebate.

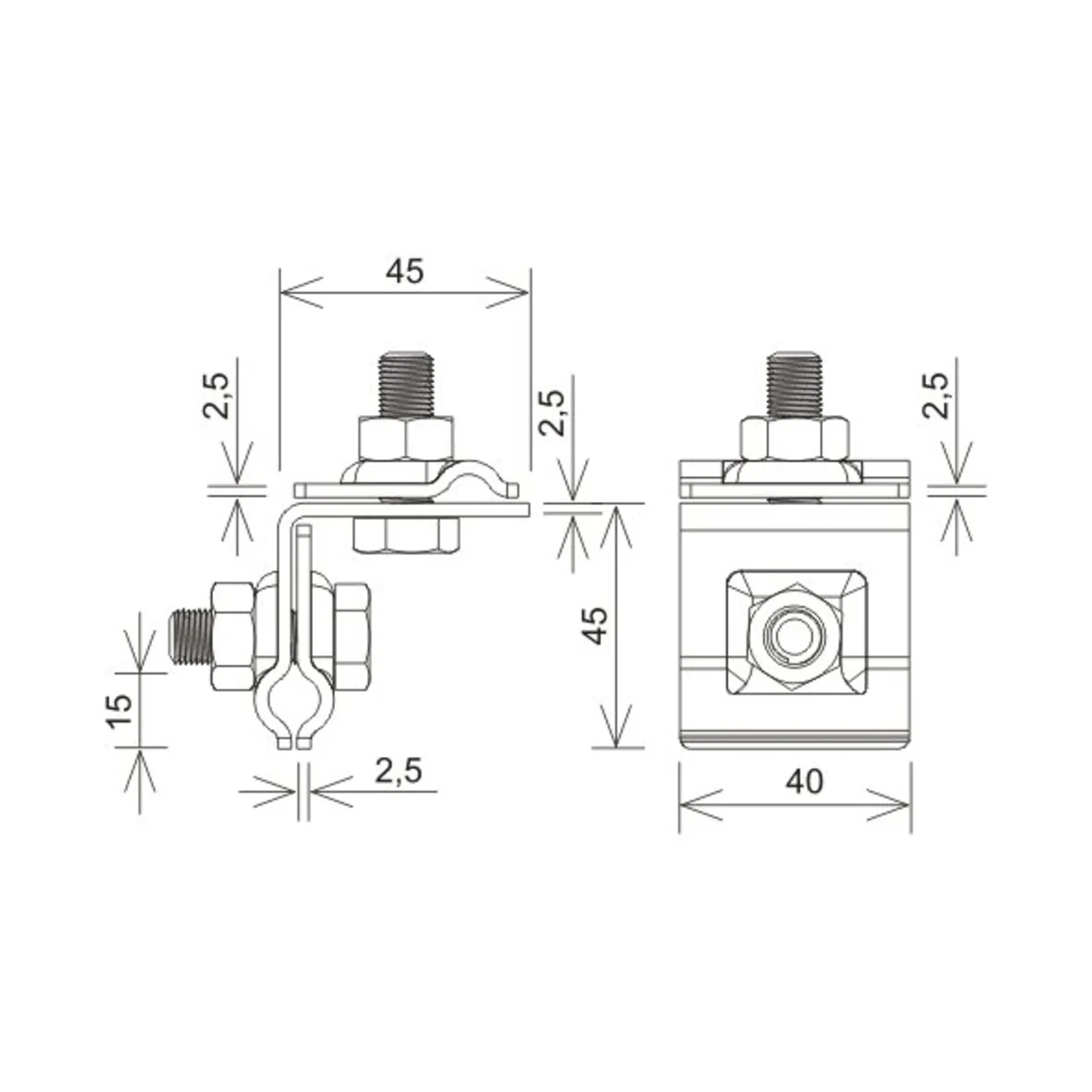

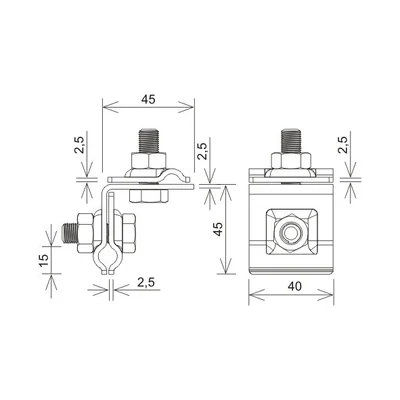

Technical data
-
Length [mm]40
-
Width [mm]45
-
Clamp typeZ-screw
-
Surface protectionhot-dip galvanized
-
Materialgalvanized steel
-
screws2xM10x30
-
Cable dimensions [mm]6-8
-
PKWIU27.33.13.0
Other technical data
-
Mounting type conductorWith screw clamp
-
Material of holderStal ocynkowana ogniowo
-
Material of carrierStal ocynkowana ogniowo
-
Material base partStal ocynkowana ogniowo
-
Rozmiar przewoduOkrągły 6-8 mm
-
Mounting type holderBore hole with M thread
-
Material of saddle clampStal ocynkowana ogniowo
Manufacturer details
-
ManufacturerAN-KOM 2 Sp. z o.o.
-
Address34-120 Inwałd ks. W. Bukowińskiego 15 Polska
-
E-mail
Bulk packaging
| A kind of package | Karton | |
| Quantity | 1 pcs. | 50 pcs. |
| Weight (kg) | 0,218 | 11,060 |
| Volume (m3) | - | 0,012 |
| Width (m) | 0,077 | 0,200 |
| Length (m) | 0,070 | 0,300 |
| Depth (m) | 0,040 | 0,200 |
