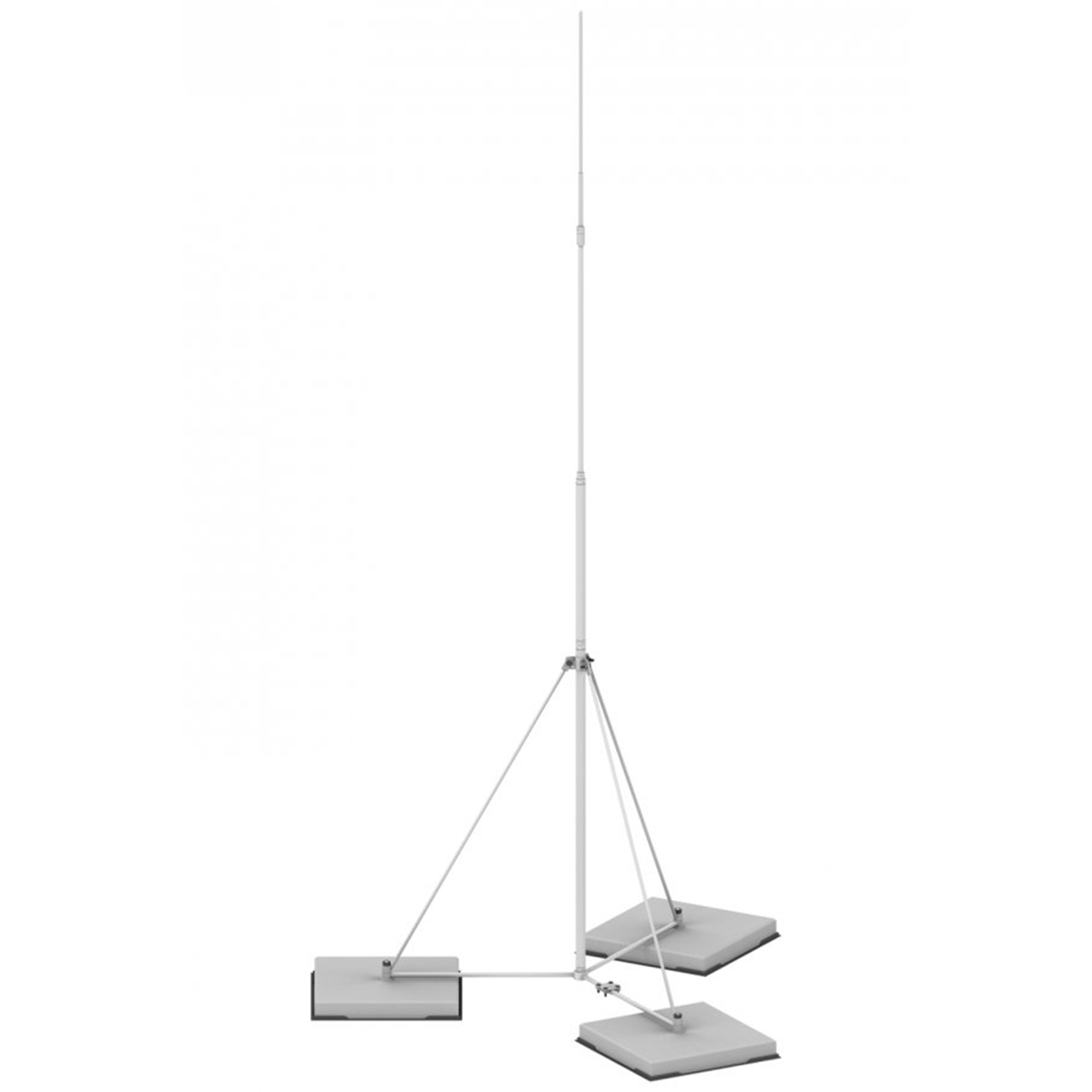

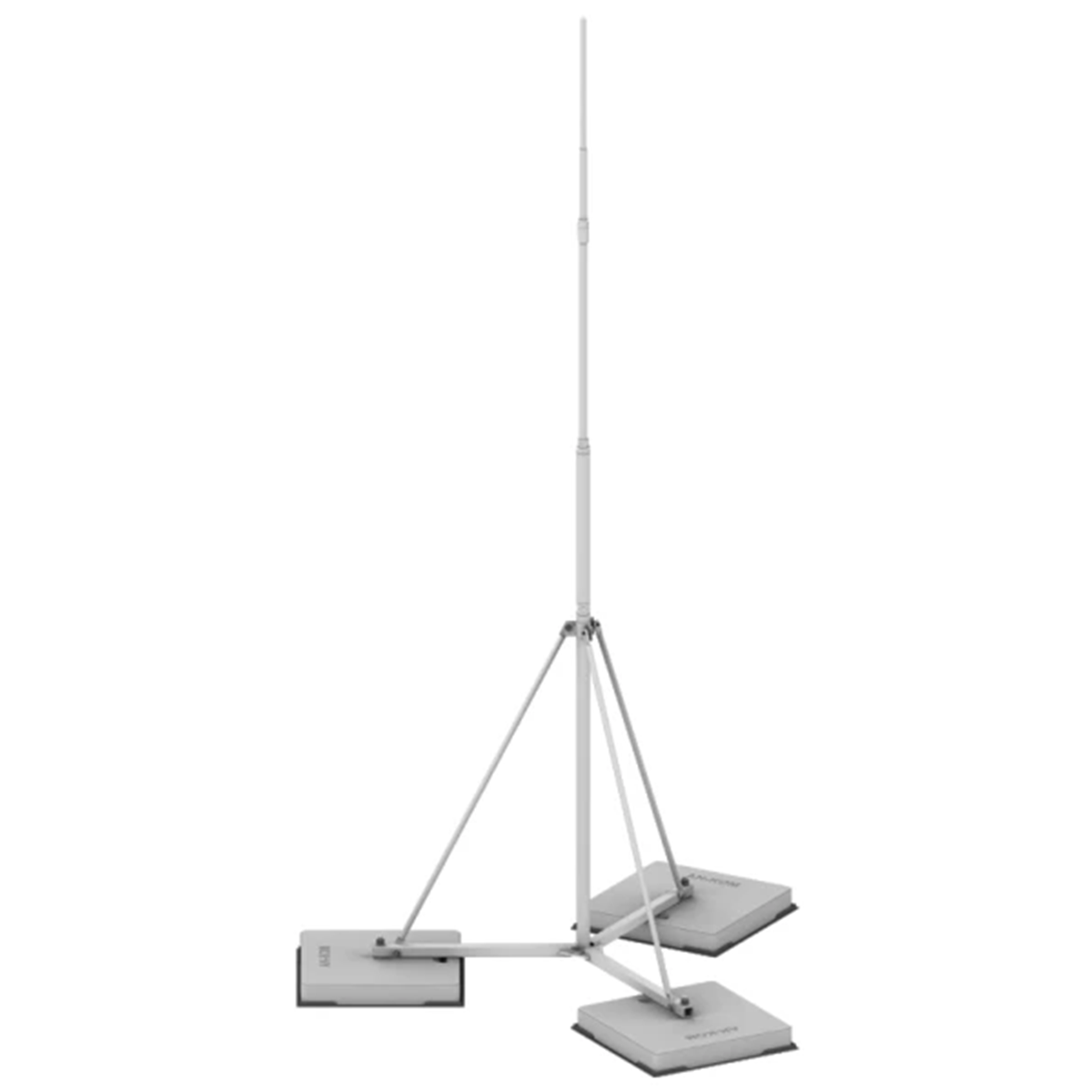

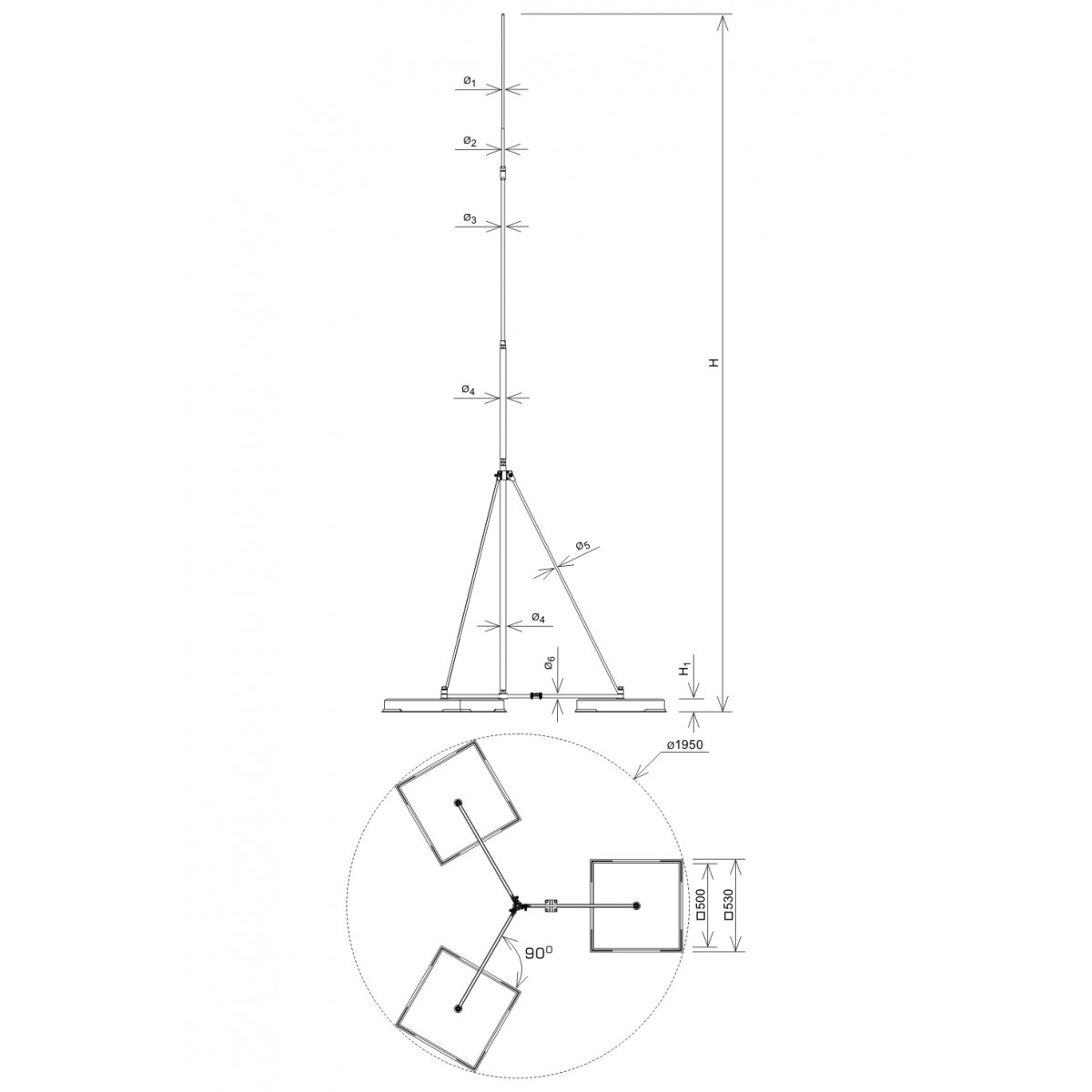

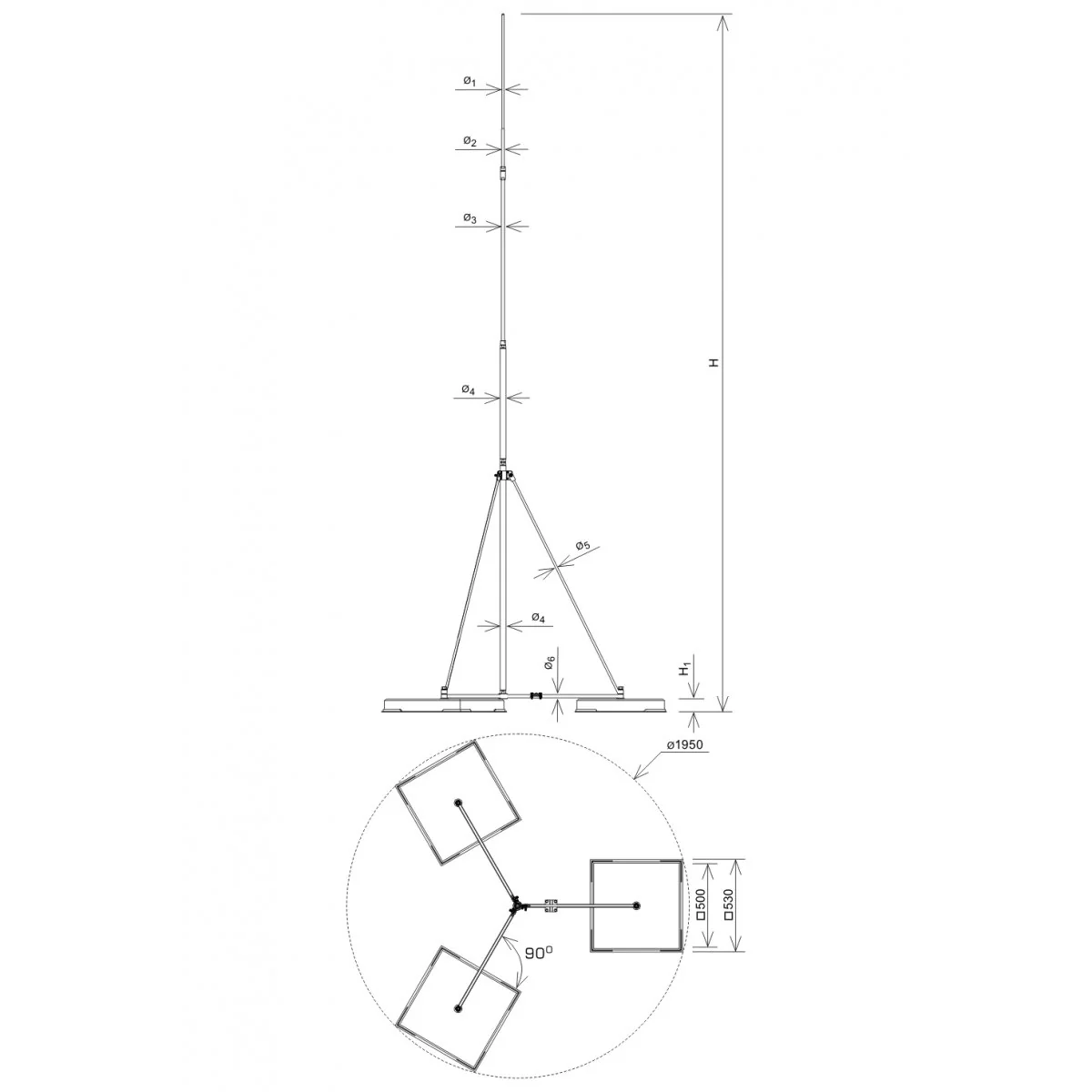

Free-standing cage mast on a triple weight (tripod). It is used to build elevated horizontal air terminals (protective cages). Hd=140, Diameter 1=10mm, Diameter 2=16mm, Diameter 3=--mm, Diameter 4=33.7mm, Diameter 5=12mm, Diameter 6=18mm.
Technical data
Material
galvanized steel
Mast diameter [mm]
33.7/18/16/10
Surface protection
hot-dip galvanized
Wind zone of the Republic of Poland
I, III
Height [mm]
7000
PKWIU
27.12.10.0
Other technical data
Długość/wysokość
7000 mm
Model
Interception rod with tripod
Surface protection
Hot-dip galvanized
High-voltage-proof insulated model
Yes
Diameter
10 ... 33.7 mm
Material
Steel
Connection
Round conductor
Manufacturer details
Manufacturer
AN-KOM 2 SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Address
34-120 INWAŁD, ul. ks. Władysława Bukowińskiego 15
