Free-standing lightning protection mast on a tripod H=5000 mm KLO H196168
local index:
AON023ANKO
Catalog No:
H196168
EAN code:
5907770516289
Manufacturer:
AN-KOM
Material: galvanized steel
Wind zone of the Republic of Poland: I, III
Height [mm]: 5000
Large-size product
Price:
419,70 €
gross / pcs.
(including VAT 23%)
3,50 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print
Ask about the product
Product description

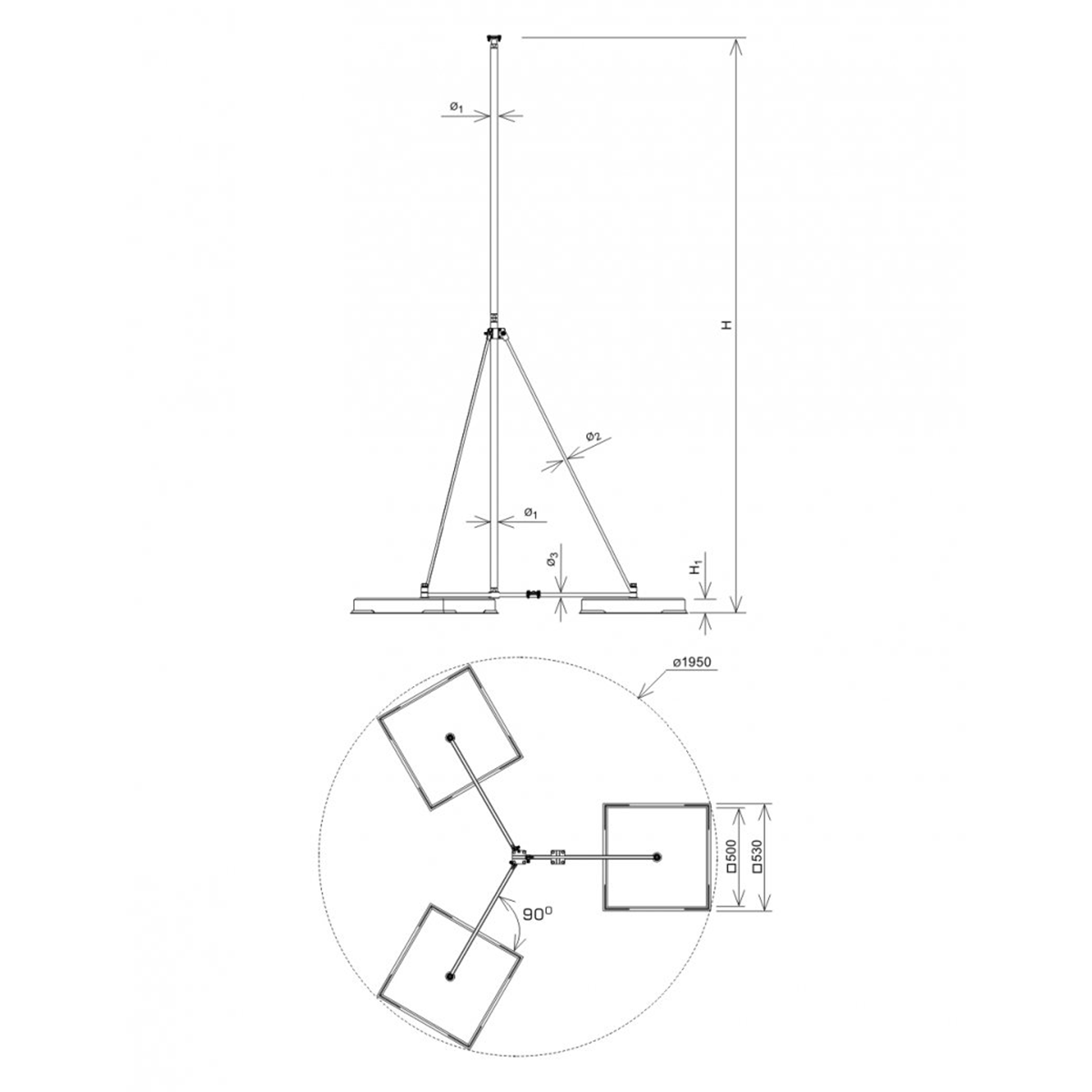

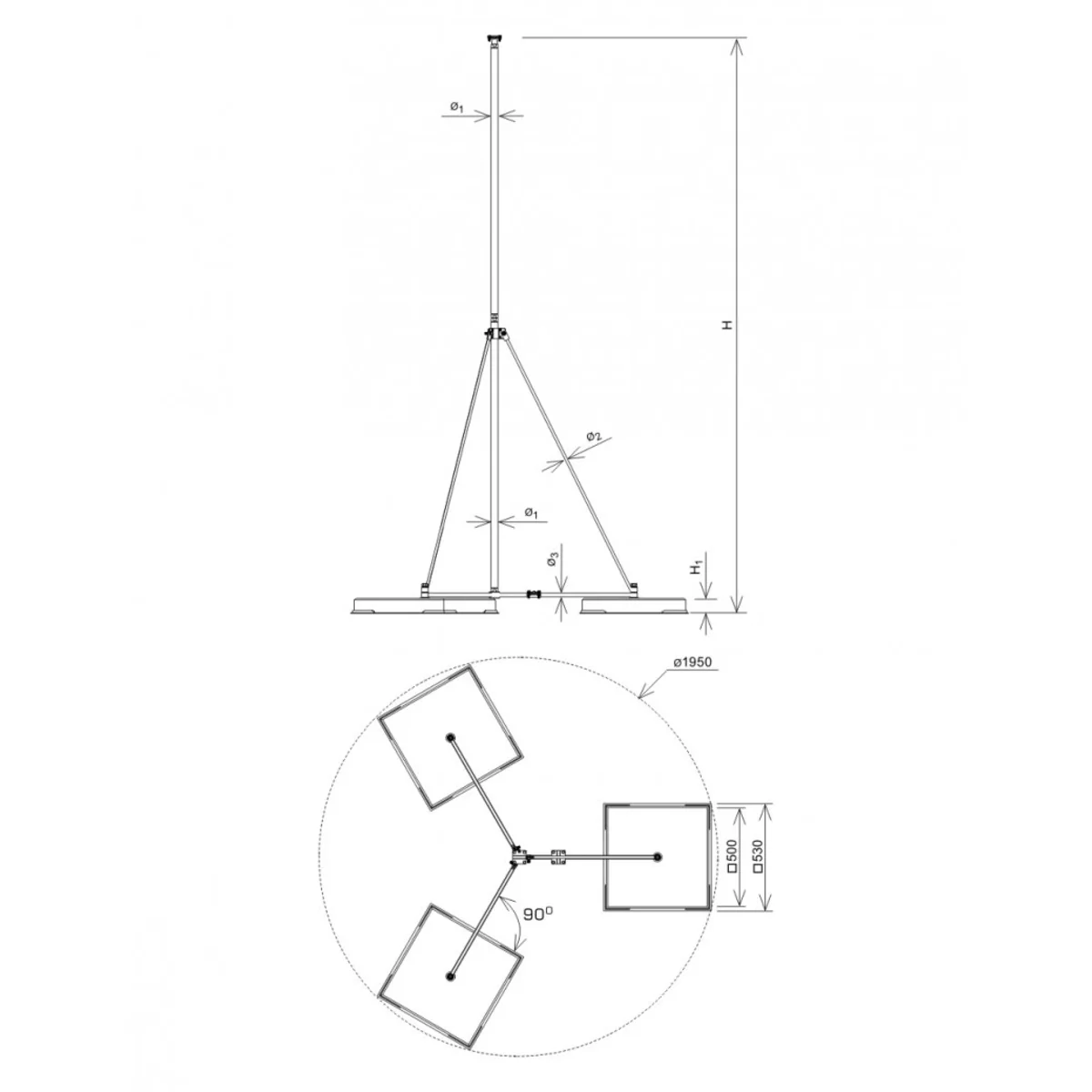

Free-standing cage mast on a triple weight (trójnóg). It is used to build elevated horizontal air terminals (safety cages). Cable span between two masts of the same construction: 10m. RECOMMENDATION: Use of AN-81R leveling screws, mast base - tripod up to 6°. H1=70mm, Diameter 1=33.7mm, Diameter 2=16mm, Diameter 3=20mm.
Technical data
-
Materialgalvanized steel
-
Height [mm]5000
-
PKWIU27.12.10.0
-
Wind zone of the Republic of PolandI, III
-
Surface protectionhot-dip galvanized
Other technical data
-
Długość/wysokość5000 mm
-
ModelInterception rod with tripod
-
Surface protectionHot-dip galvanized
-
High-voltage-proof insulated modelYes
-
Diameter33.7 ... 33.7 mm
-
MaterialSteel
-
ConnectionRound conductor
Manufacturer details
-
ManufacturerAN-KOM 2 SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
-
Address34-120 INWAŁD, ul. ks. Władysława Bukowińskiego 15
-
Tax identification number5512653446
