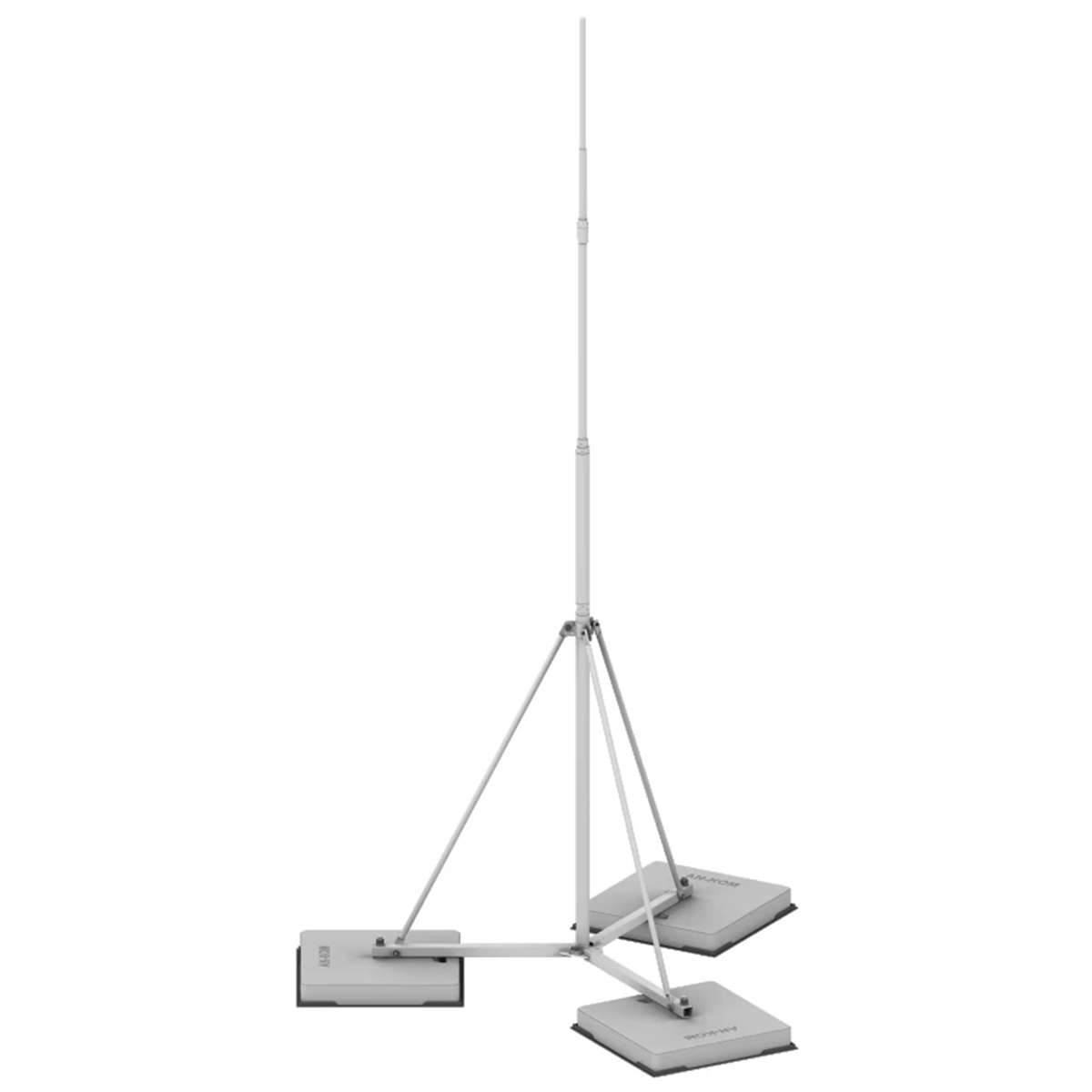

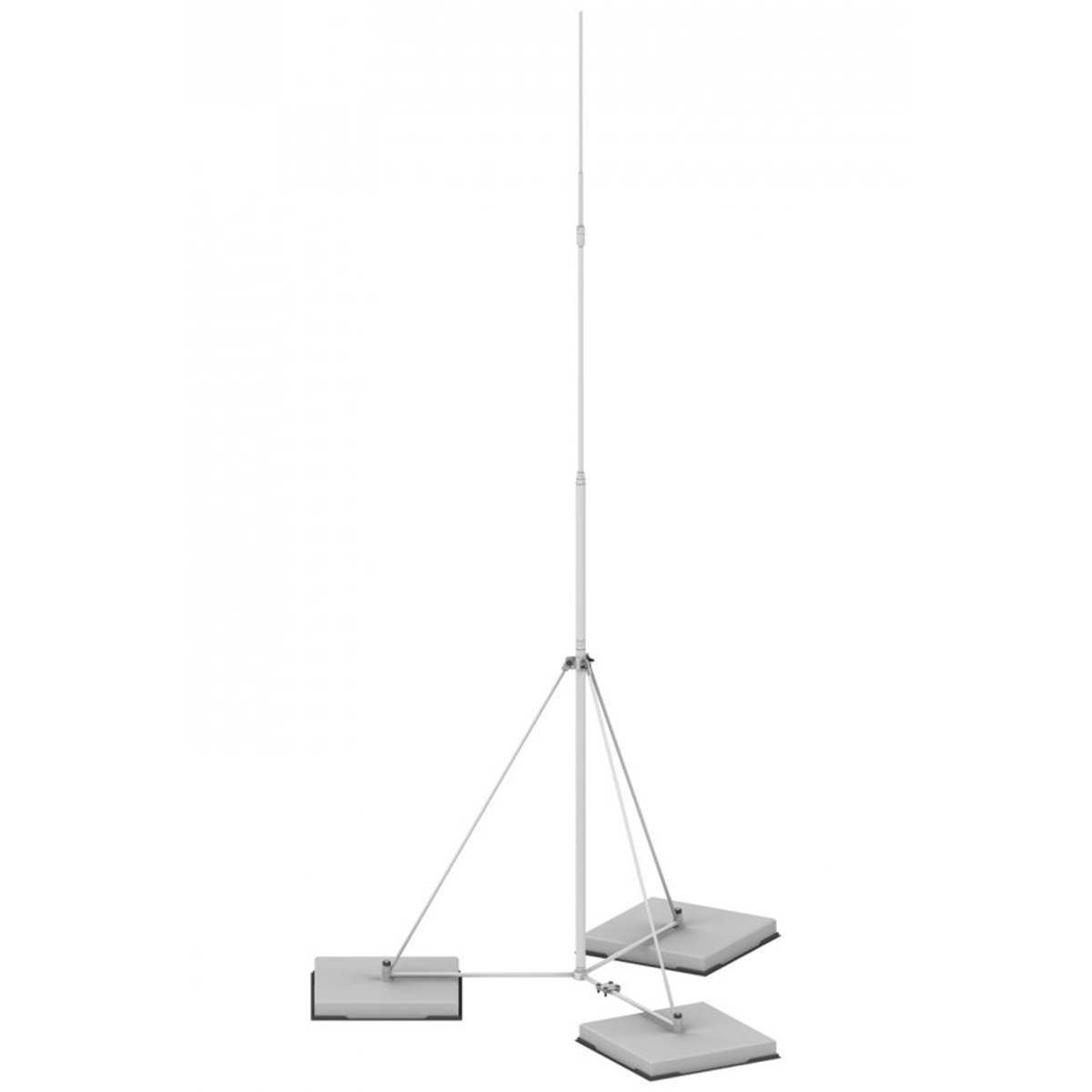

Free-standing lightning protection mast on a tripod H=5000 mm fi 33.7/16/10 RP: I,III H196128

Name: Free-standing lightning protection mast on a tripod H=5000 mm fi 33.7/16/10 RP: I,III
Brand: AN-KOM
SKU: AON124ANKO
Price: 312.44 PLN

local index:

AON124ANKO

Catalog No:

H196128

EAN code:

5907770511703

Free-standing lightning protection mast on a tripod H=5000 mm fi 33.7/16/10 RP: I,III

Click on the photo to enlarge

Manufacturer: AN-KOM

Material: galvanized steel

Wind zone of the Republic of Poland: I, III

Mast diameter [mm]: 33.7/16/10

See full description

Large-size product

Price:

312,44 €

gross / pcs.

(including VAT 23%)

2,60 € gross/kg.

Delivery in 3h

Out of stock

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Ask about the product

Product description Technical data Manufacturer details Files to download

Product description

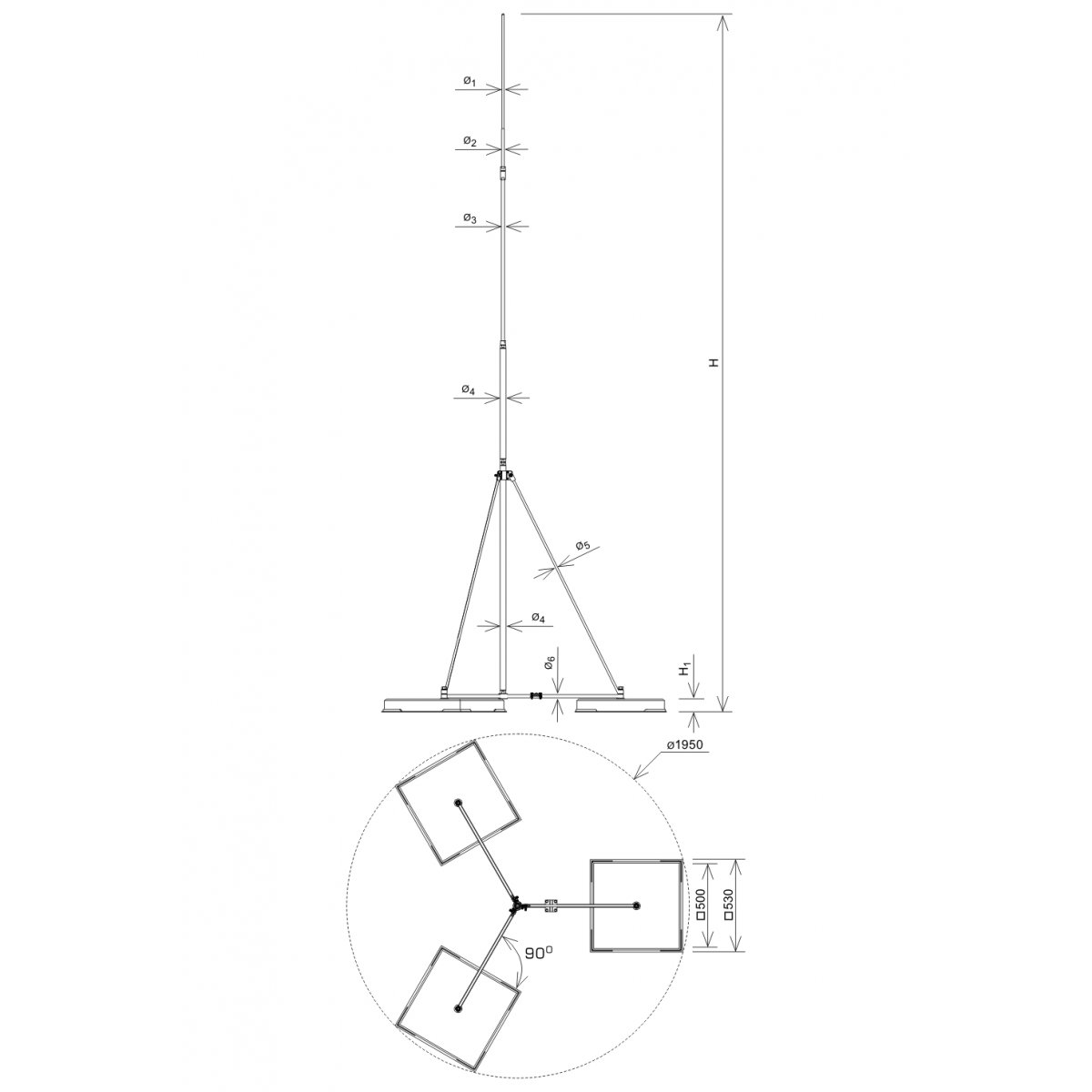

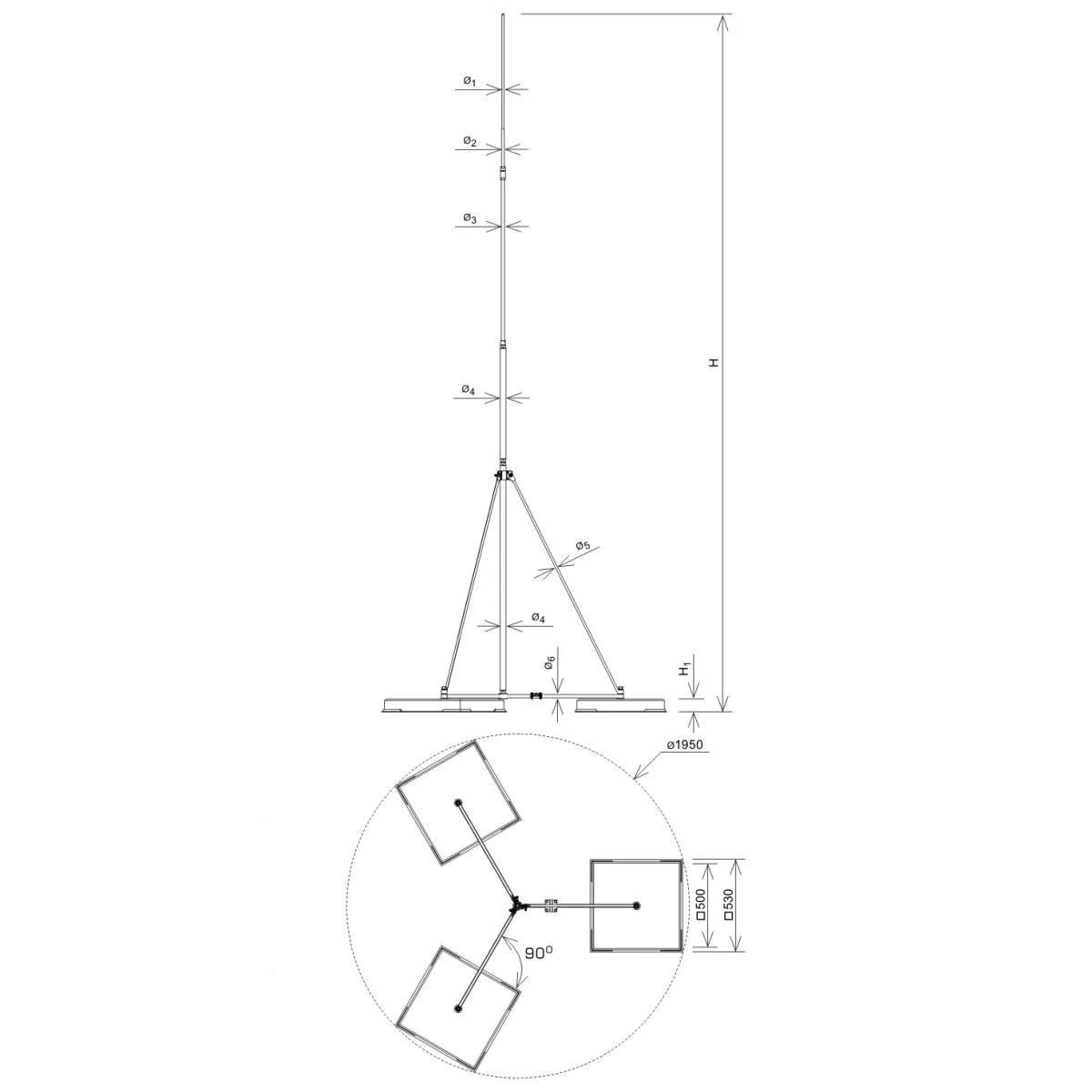

Free-standing lightning protection mast on a tripod H=5000 mm fi 33.7/16/10 RP: I,III. Free-standing cage mast on a triple weight (tripod). It is used to build elevated horizontal air terminals (protective cages). H1=70mm, Diameter 1=10mm, Diameter 2=--mm, Diameter 3=--mm, Diameter 4=33.7mm, Diameter 5=12mm, Diameter 6=18mm, RECOMMENDED: Use AN-81R leveling screws, base mast - tripod in the range up to 6°.
