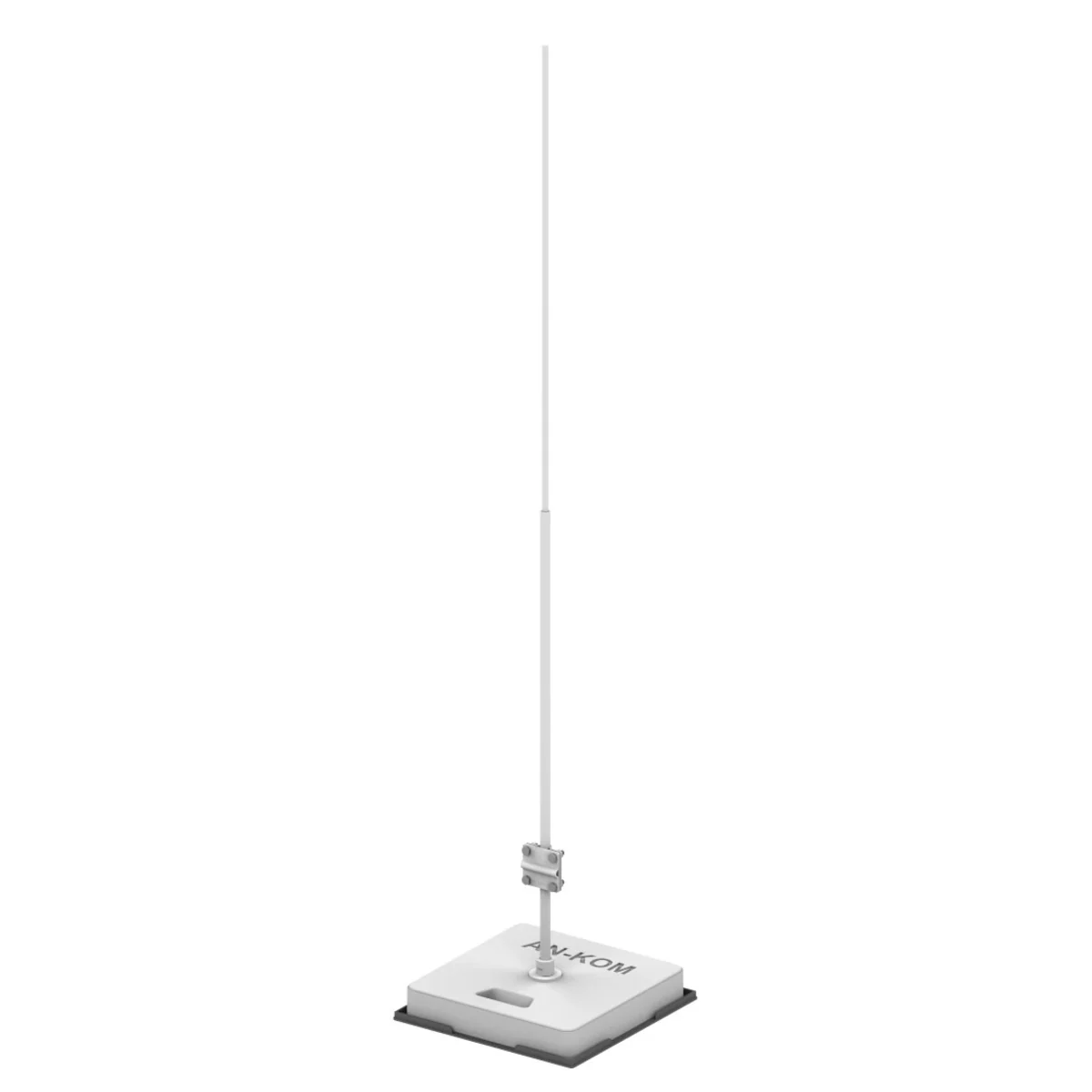

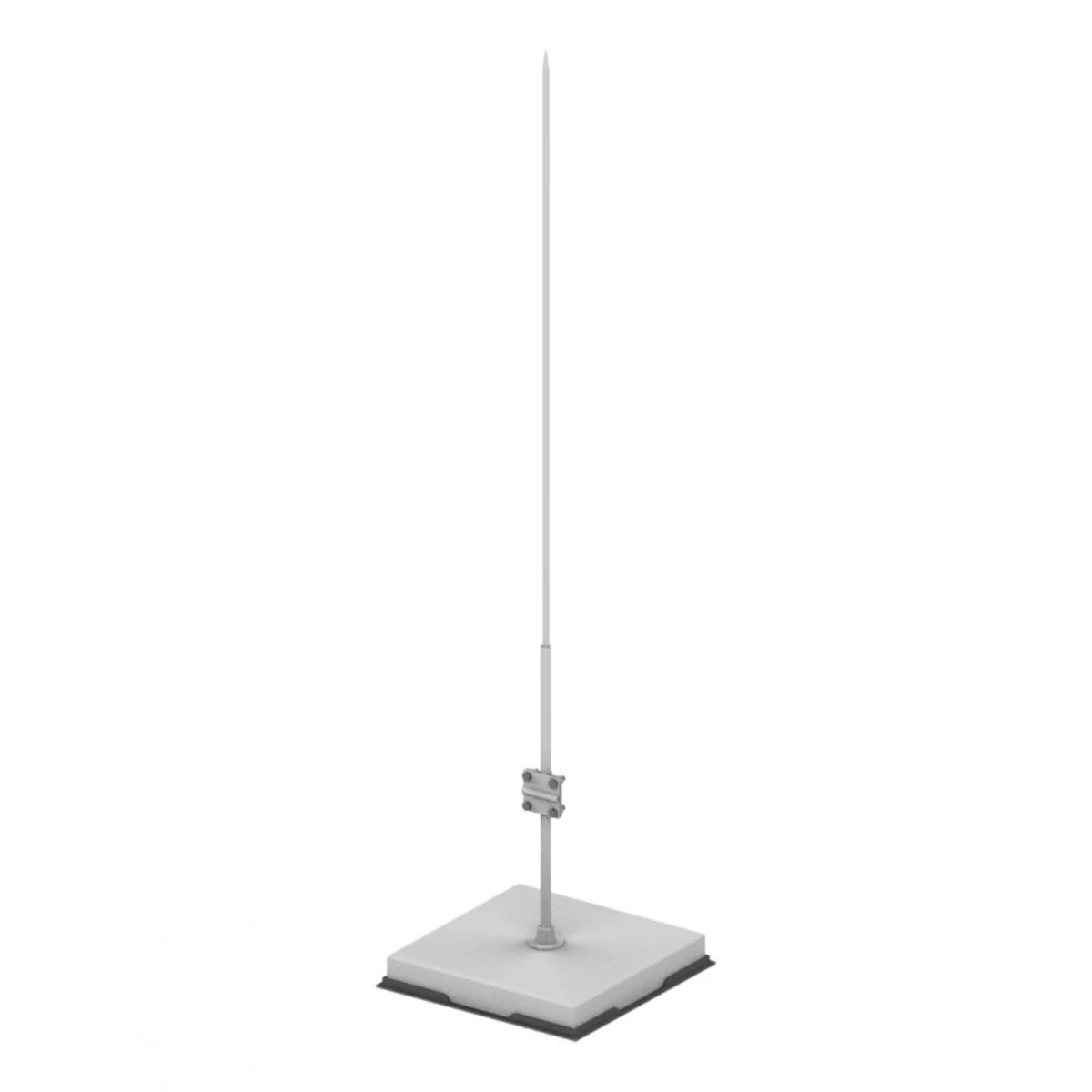

Free-standing lightning protection mast H=2000 mm fi 16/10 RP: I H196020

local index:
AON111ANKO
Catalog No:
H196020
EAN code:
5907770511642
Manufacturer: AN-KOM
Material: galvanized steel
Wind zone of the Republic of Poland: AND
Mast diameter [mm]: 2014-10-16 00:00:00
Large-size product
Price:
60,85 €
gross / pcs.
(including VAT 23%)
4,06 € gross/kg.
Delivery in 3h
Accessible 7 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

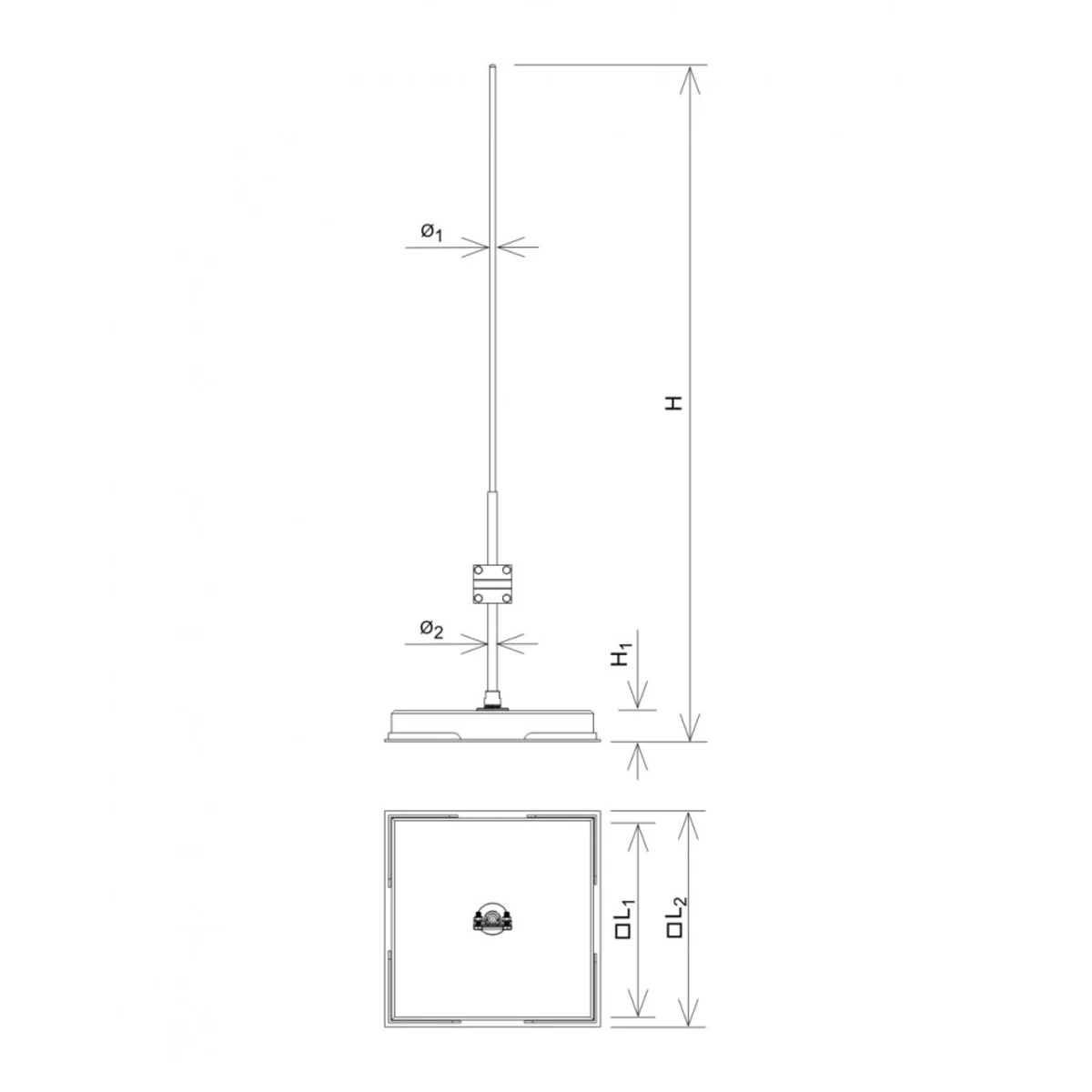

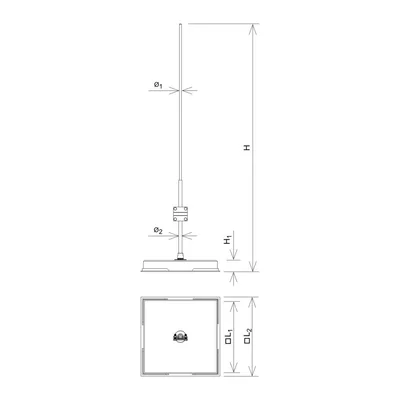

They are used to protect devices exposed to direct lightning current. They do not require gluing and the use of lashings. They are always offered complete with accessories: PVC washer, weight, needle, connector. H1=50mm. L1=350mm L2=380mm. Diameter 1=10mm, Diameter 2=16mm.

Technical data

  • Material
    galvanized steel
  • Mast diameter [mm]
    2014-10-16 00:00:00
  • Height [mm]
    2000
  • PKWIU
    27.12.10.0
  • Wind zone of the Republic of Poland
    AND
  • Weight [g]
    15000
  • Surface protection
    hot-dip galvanized

Other technical data

  • Długość/wysokość
    2000 mm
  • Model
    Interception rod with thread
  • Surface protection
    Hot-dip galvanized
  • High-voltage-proof insulated model
    Yes
  • Diameter
    10 ... 16 mm
  • Material
    Steel
  • Connection
    Round conductor
