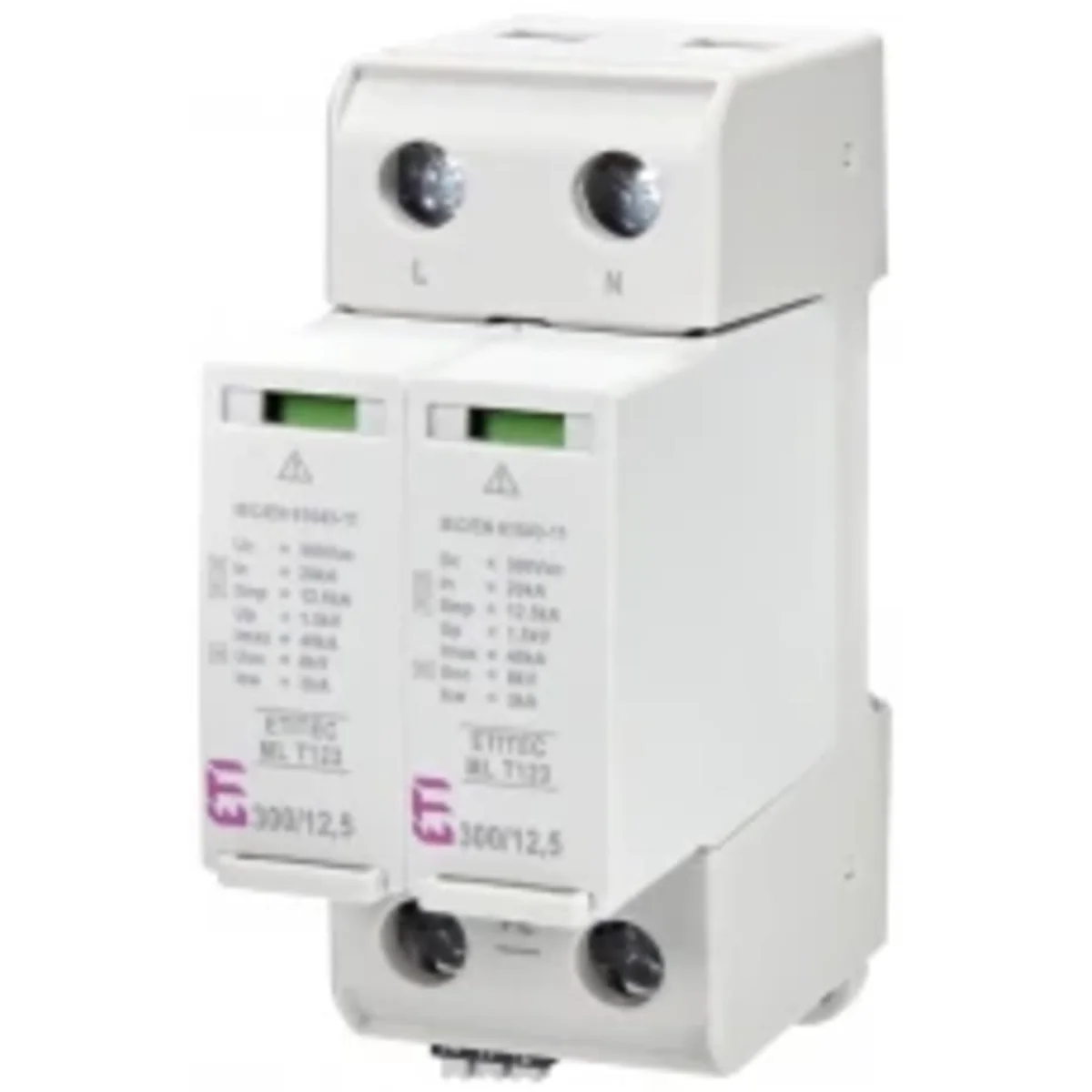

ETITEC ML T123 300/12.5 1+1 RC Surge arrester T1, T2, T3 (B, C, D) 002440670
local index:
AOC093ETIP
Catalog number:
002440670
EAN code:
3838895927228
Manufacturer:
ETI POLAM
1 017,43 zł
gross / pcs.
(including VAT 23%)
Availability
Dostępne up to a week
On request
Dostępność w oddziale
Choose your wholesaler
Choose
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
Other technical data
-
System configuration DCNo
-
System configuration TN-CNo
-
System configuration TTYes
-
Number of poles2
-
Max. continuous voltage AC300 V
-
Voltage protection level1.5 kV
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Max. conductor cross section solid (solid, stranded)35 mm²
-
Remote signallingYes
-
Test classType 1 + 2
-
Degree of protection (IP)IP20
-
System configuration ITNo
-
System configuration TN-SYes
-
System configuration otherNo
-
Lightning impulse current (10/350 µs)12.5 kA
-
Nominal voltage AC230 V
-
Specific energy (W/R)39 kJ/Ω
-
Construction size2 modular spacing
-
Max. conductor cross section flexible (fine-strand)25 mm²
-
Signalling at the deviceOptical
-
Integrated backup fuseNo
Manufacturer details
-
ManufacturerETI Polam Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18 Polska
-
E-mail
Bulk packaging
| A kind of package | Pudełko | Pudełko |
| Quantity | 1 pcs. | 7 pcs. |
| Weight (kg) | 0,343 | 2,482 |
| Volume (m3) | 0,001 | 0,004 |
| Width (m) | 0,046 | 0,352 |
| Length (m) | 0,102 | 0,109 |
| Depth (m) | 0,110 | 0,115 |
