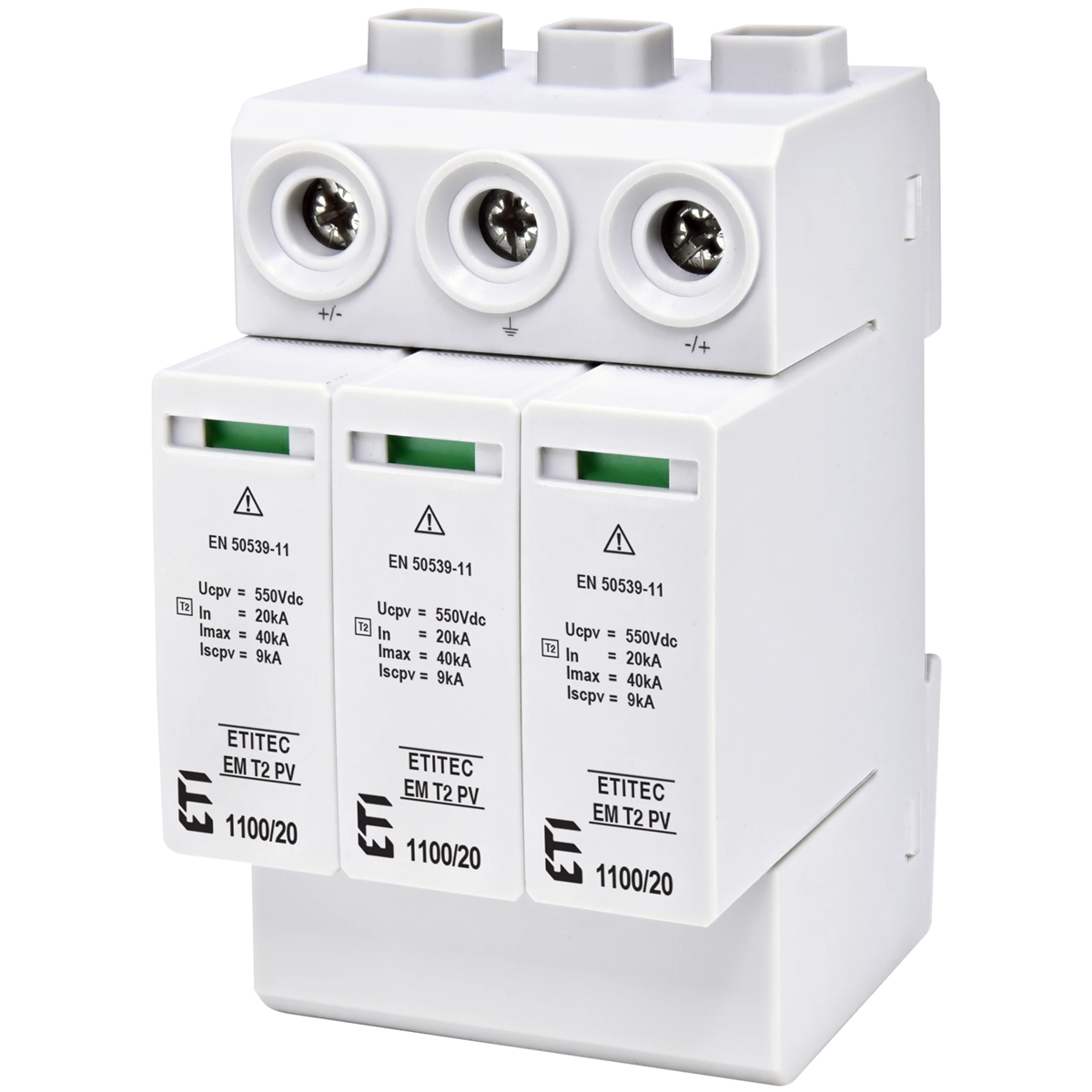

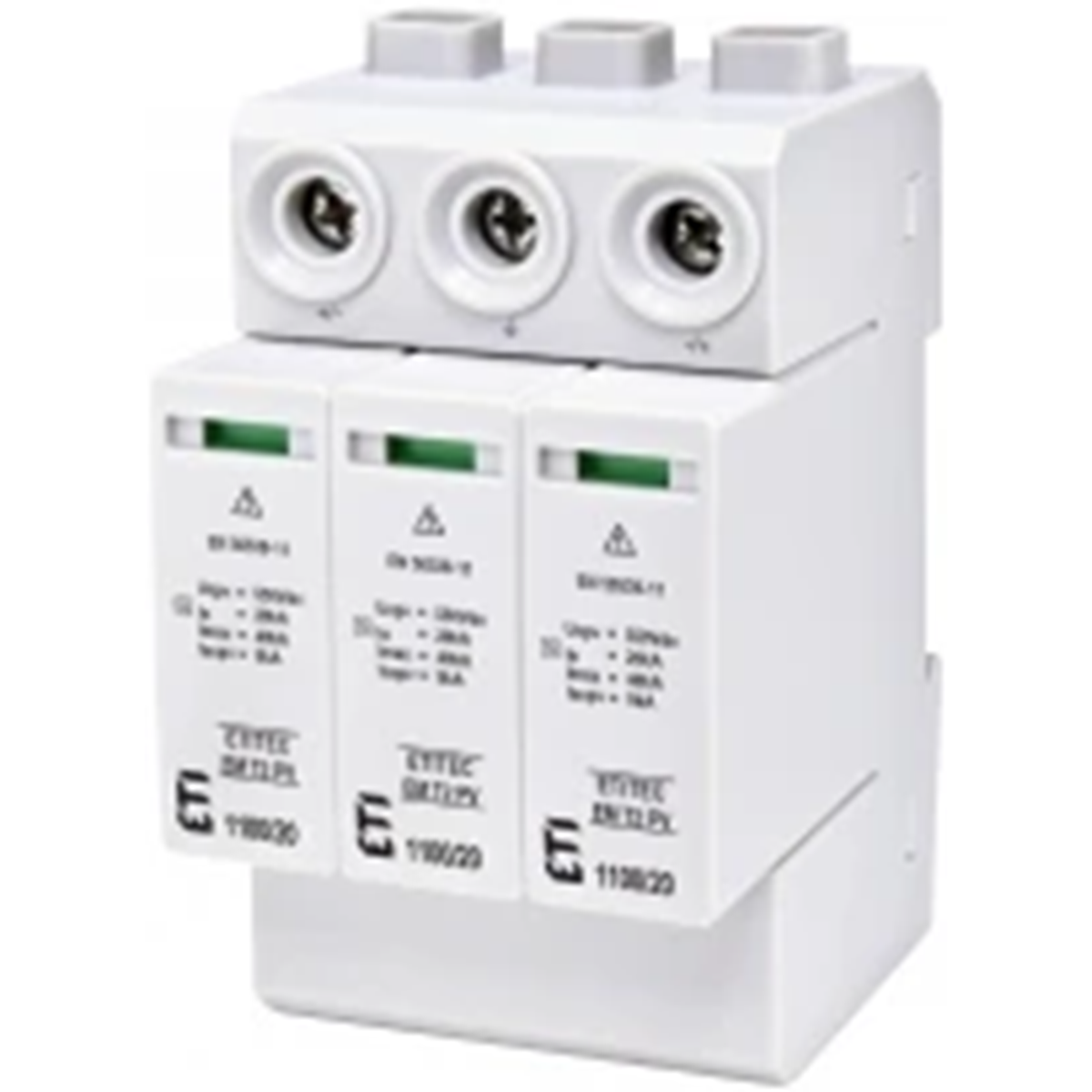

ETITEC EM T2 PV 1100/20 Y surge arrester 002440623

local index:
AOC002ETIP
Catalog No:
002440623
EAN code:
3838895877981
Manufacturer: ETI POLAM
Characteristic: c
Protection class: Type 2
Number of poles: 3
Price:
55,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 27 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Surge arrester T2 PV 1100/20 Y from the manufacturer ETI POLAM. The product catalog number is 002440623.

  • Uc (V): 1100.
  • In (8/20): 20.
  • RC.

Technical data

  • Characteristic
    c
  • Number of poles
    3
  • Width [number of modules]
    3
  • Protection class
    Type 2
  • Protection level [kV]
    4.2
  • PKWIU
    27.12.23.0

Other technical data

  • System configuration DC
    Yes
  • Max. continuous voltage DC
    1100 V
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Max. conductor cross section solid (solid, stranded)
    35 mm²
  • With remote signalling contact
    No
  • Suitable for outdoor use
    No
  • Nominal discharge surge current (8/20)
    20 kA
  • Voltage protection level
    4.2 kV
  • Construction size
    3 modular spacing
  • Max. conductor cross section flexible (fine-strand)
    25 mm²
  • Signalling at the device
    Optical
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Pudełko
Quantity 5 pcs.
Weight (kg) 1,645
Width (m) 0,301
Length (m) 0,086
Depth (m) 0,119
