el12 Lightning protection Protectors
el12 sale ETI: One purchase - many possibilities

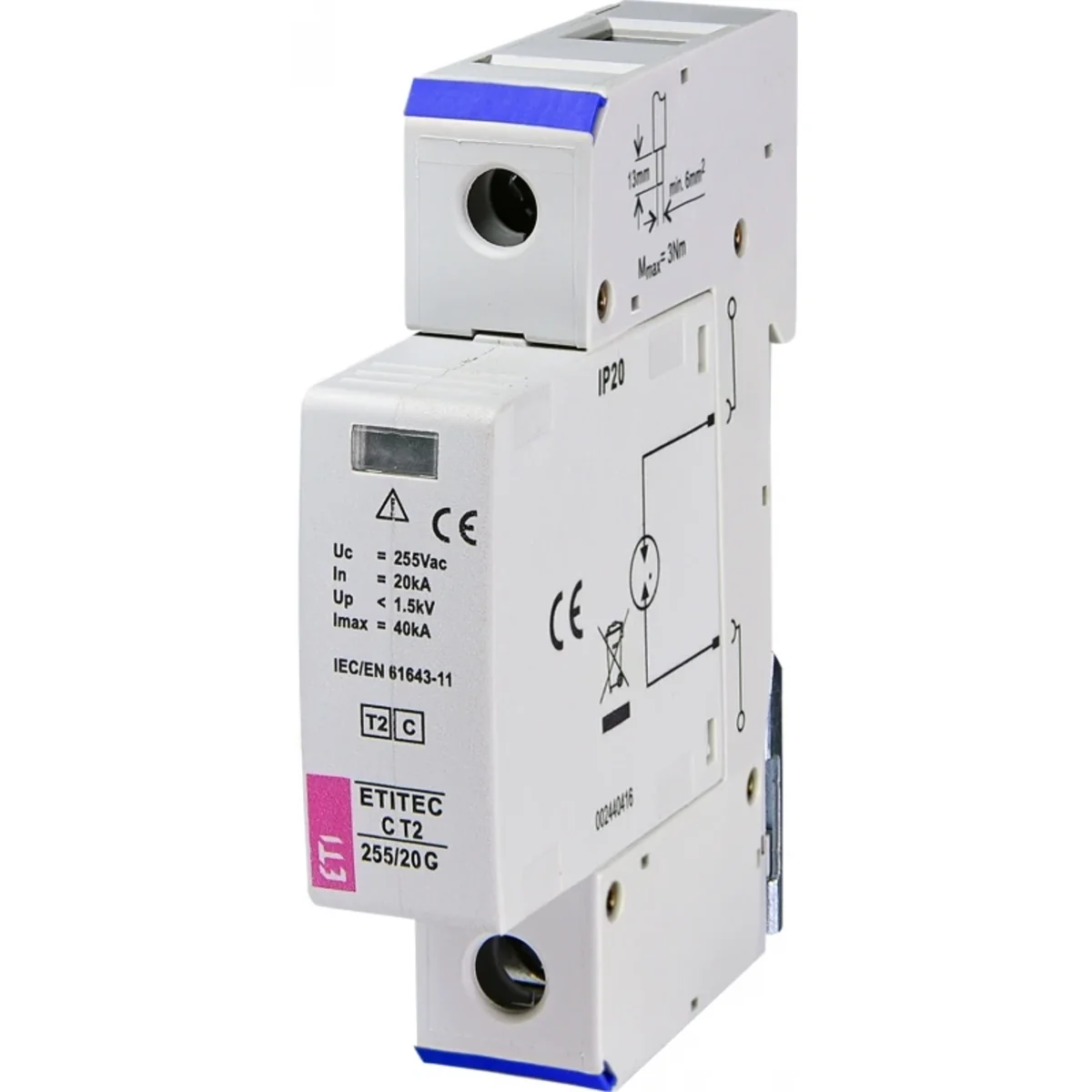

ETITEC C T2 255/20 G Surge arrester T2 (C) - with spark gap 002440413

local index:
AOC087ETIP
Catalog number:
002440413
EAN code:
3838895773085
ETITEC C T2 255/20 G Surge arrester T2 (C) - with spark gap
ETITEC C T2 255/20 G Surge arrester T2 (C) - with spark gap
ETITEC C T2 255/20 G Surge arrester T2 (C) - with spark gap
ETITEC C T2 255/20 G Surge arrester T2 (C) - with spark gap
ETITEC C T2 255/20 G Surge arrester T2 (C) - with spark gap
ETITEC C T2 255/20 G Surge arrester T2 (C) - with spark gap

Click on the photo to enlarge

Manufacturer: ETI POLAM
246,17 zł
gross / pcs.  (including VAT 23%)
Availability
Dostępne 3 pcs.
Check
Odbiór!
Odbierz w godzinę!
Details
Twoja hurtowinia
Dostępność w oddziale
Choose your wholesaler
Choose
Quantity pcs. (multiplicity: 1 )
Add to inquiry
Add to clipboard
Print
Technical data Manufacturer details Bulk packaging Files to download

Technical data

Other technical data

  • System configuration DC
    No
  • System configuration TN
    Yes
  • System configuration TN-S
    Yes
  • System configuration other
    No
  • Nominal discharge surge current (8/20)
    20 kA
  • Nominal voltage AC
    230 V
  • Voltage protection level
    1.5 kV
  • Voltage protection level N-PE
    1.5 kV
  • Integrated backup fuse
    No
  • Construction size
    1 modular spacing
  • Max. conductor cross section flexible (fine-strand)
    25 mm²
  • Signalling at the device
    Optical
  • Degree of protection (IP)
    IP20
  • System configuration IT
    No
  • System configuration TN-C
    Yes
  • System configuration TT
    Yes
  • Number of conductors (without earthing)
    1
  • Max. discharge surge current (8/20)
    40 kA
  • Max. continuous voltage AC
    255 V
  • Voltage protection level L-N
    1.5 kV
  • Short-circuit breaking capacity (Isccr)
    25 kA
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Max. conductor cross section solid (solid, stranded)
    35 mm²
  • With remote signalling contact
    No
  • Category type 2
    Yes

Manufacturer details

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 1 pcs. 12 pcs.
Weight (kg) 0,155 1,941
Volume (m3) 0,000 0,003
Width (m) 0,024 0,298
Length (m) 0,076 0,079
Depth (m) 0,109 0,112
