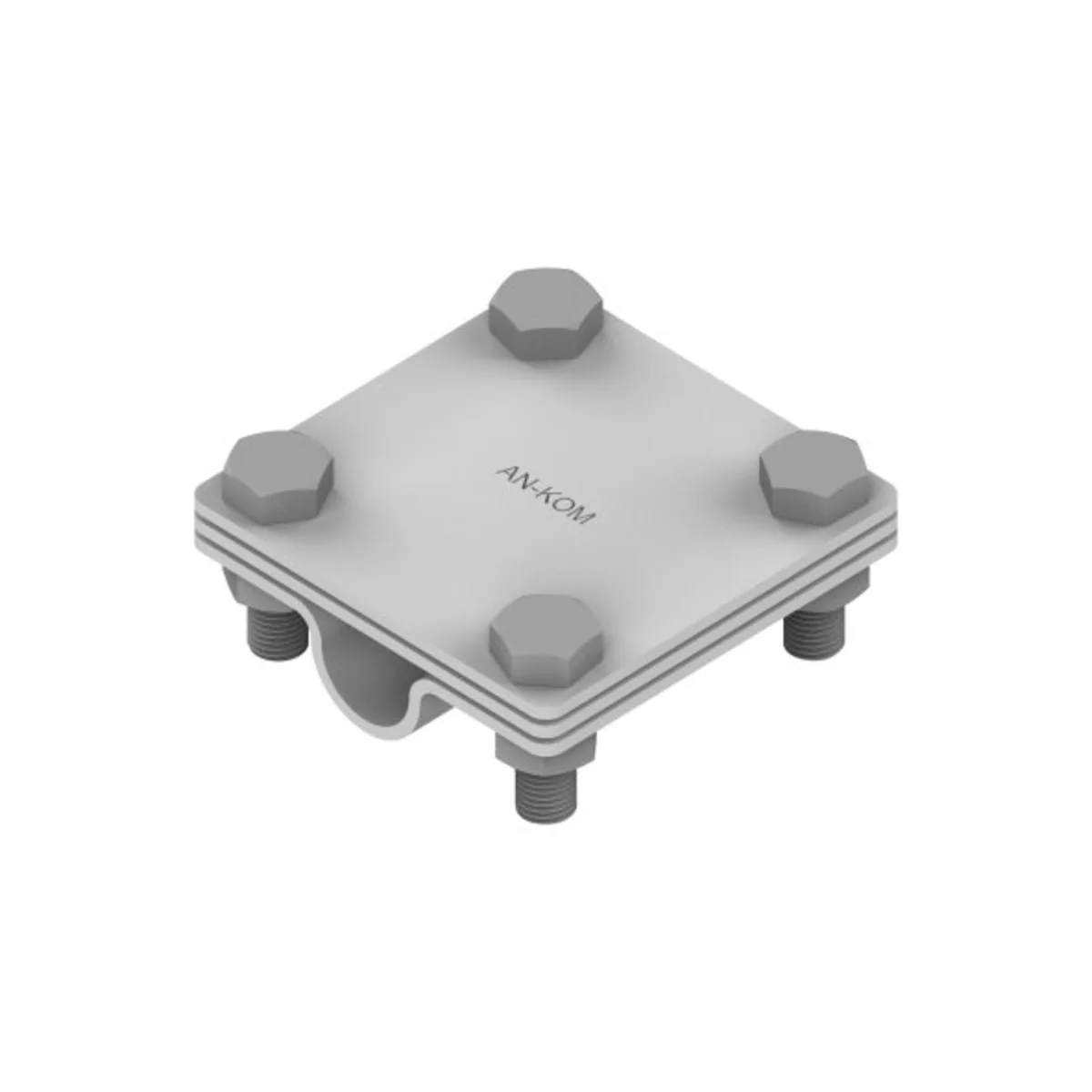

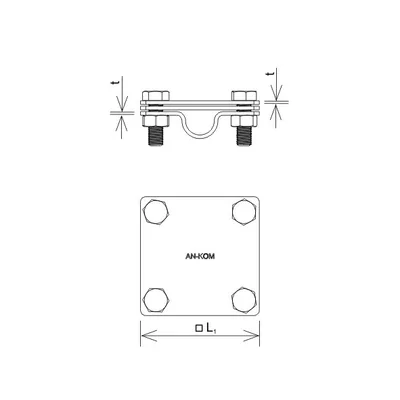

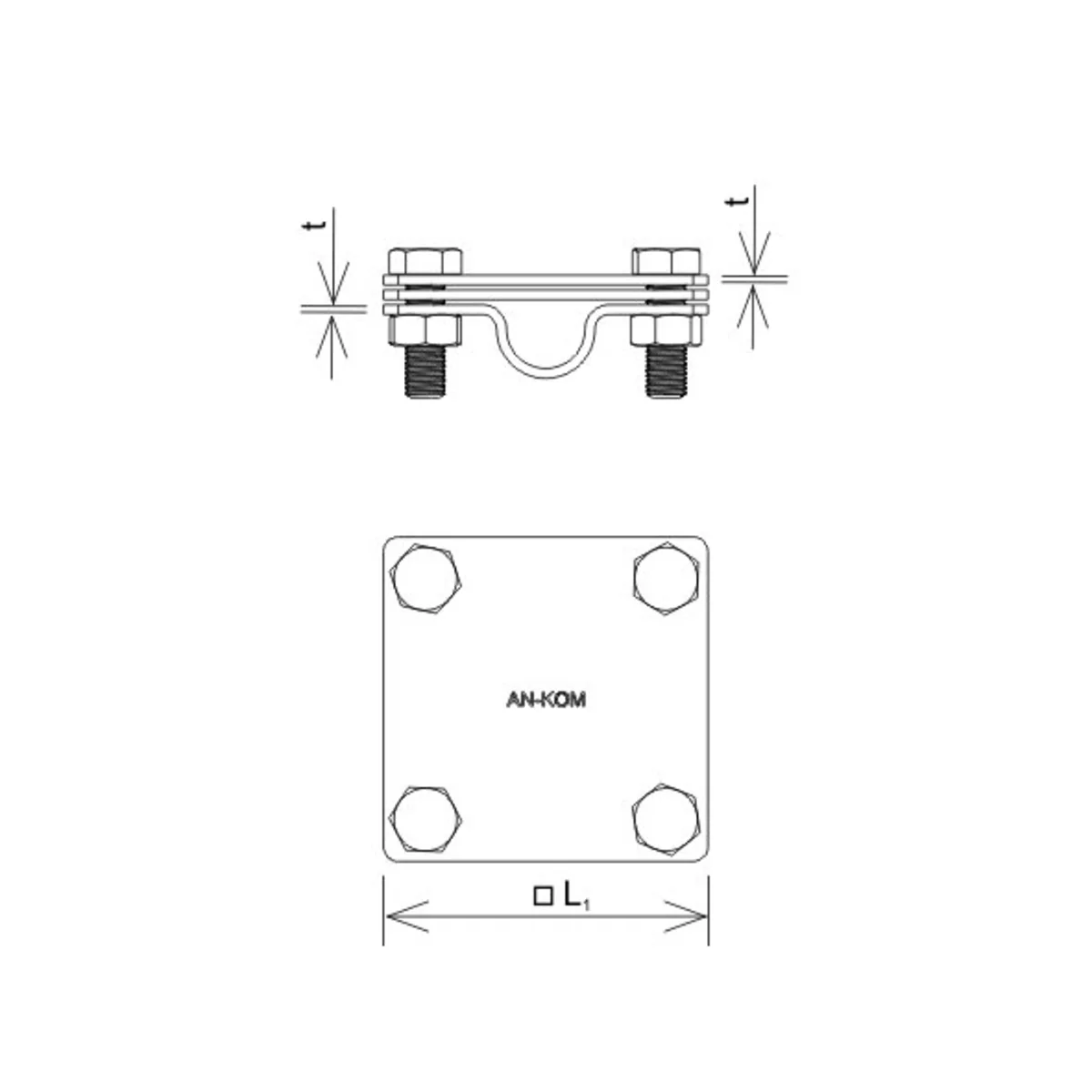

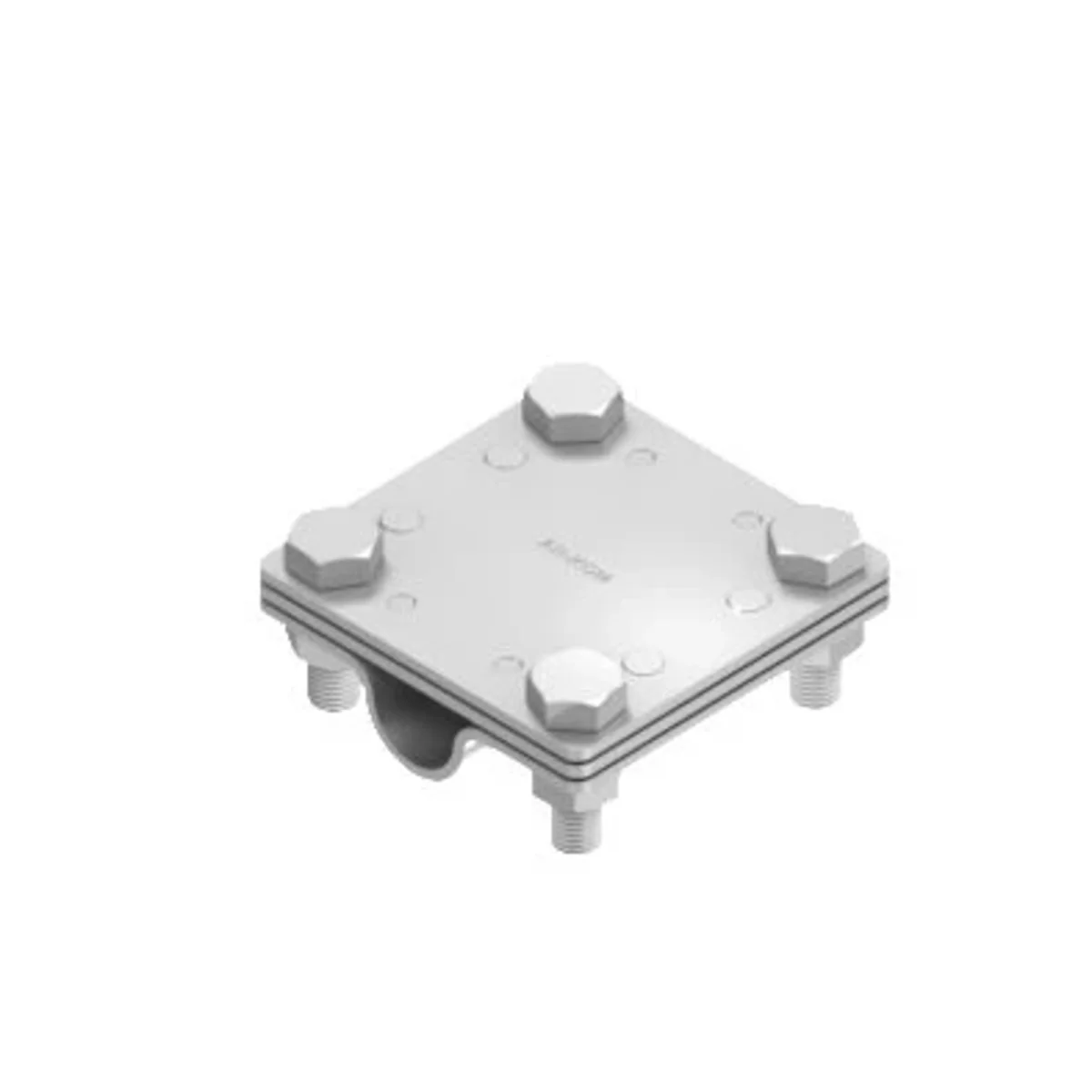

Earth connection 3 plates B=40x5/ fi 18 mm, stainless F285040
local index:
AOK198ANKO
Catalog No:
F285040
EAN code:
5907770518931
Price:
44,96 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Grounding - connecting the rod with the hoop iron. For earth electrodes: AN-53, AN-54, t=2mm.
Technical data
-
Length [mm]66
-
Maximum tape width [mm]40
-
Earth electrode diameter [mm]18
-
PKWIU25.99.29.0
-
Materialstainless steel
-
Width [mm]66
-
screws4xM8x30
Other technical data
-
Mounting type conductorWith screw clamp
-
Material of holderStainless steel 316 (V4A)
-
Material of saddle clampStainless steel 316 (V4A)
-
Rozmiar przewoduPłaski 30x4 mm
-
Mounting type holderBore hole
-
Material base partStainless steel 316 (V4A)
Manufacturer details
-
ManufacturerAN-KOM 2 Sp. z o.o.
-
Address34-120 Inwałd ks. W. Bukowińskiego 15 Polska
-
E-mail
Bulk packaging
| A kind of package | NE | Karton |
| Quantity | 1 pcs. | 50 pcs. |
| Weight (kg) | 0,288 | 14,600 |
| Volume (m3) | - | 0,013 |
| Width (m) | 0,070 | 0,230 |
| Length (m) | 0,070 | 0,250 |
| Depth (m) | 0,035 | 0,230 |
