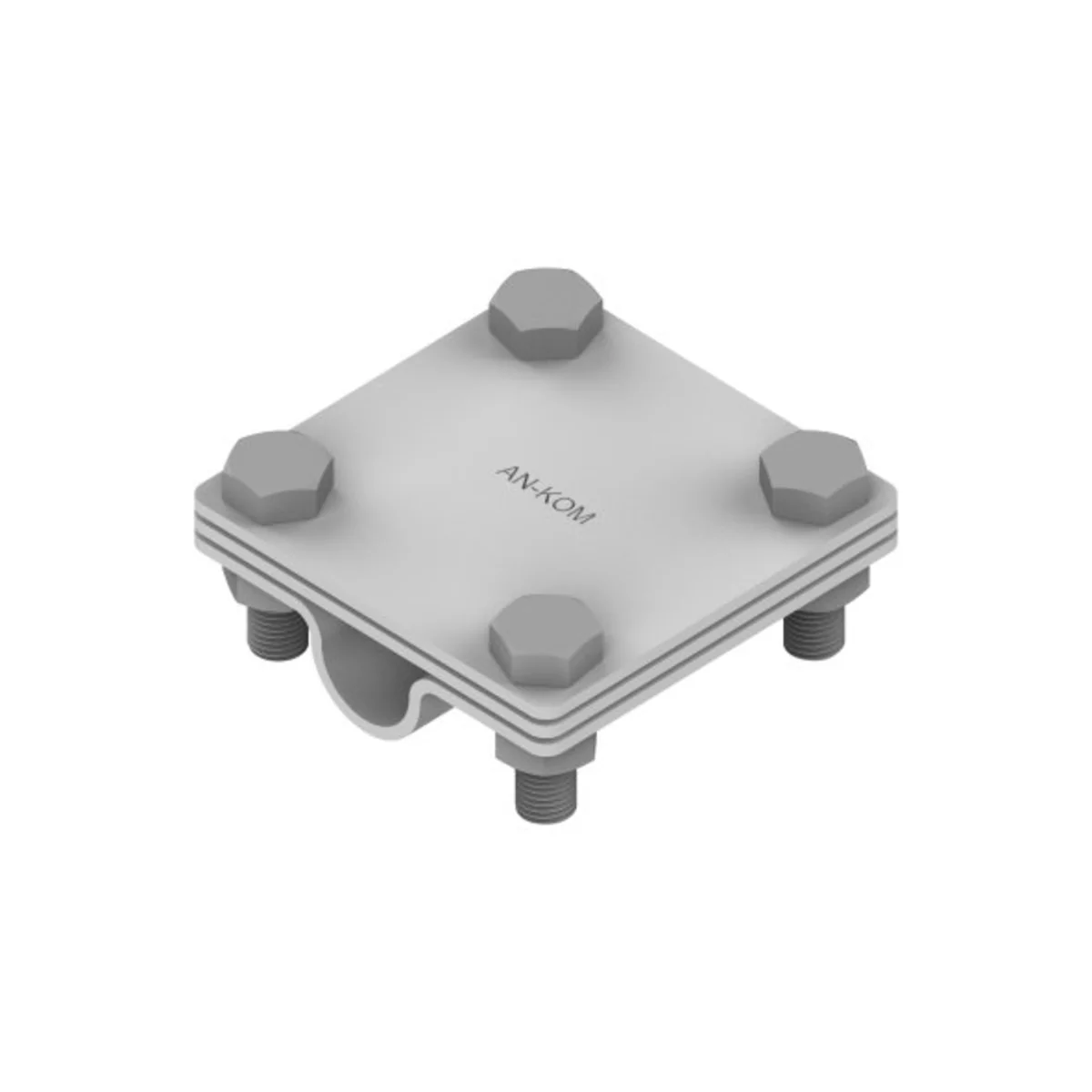

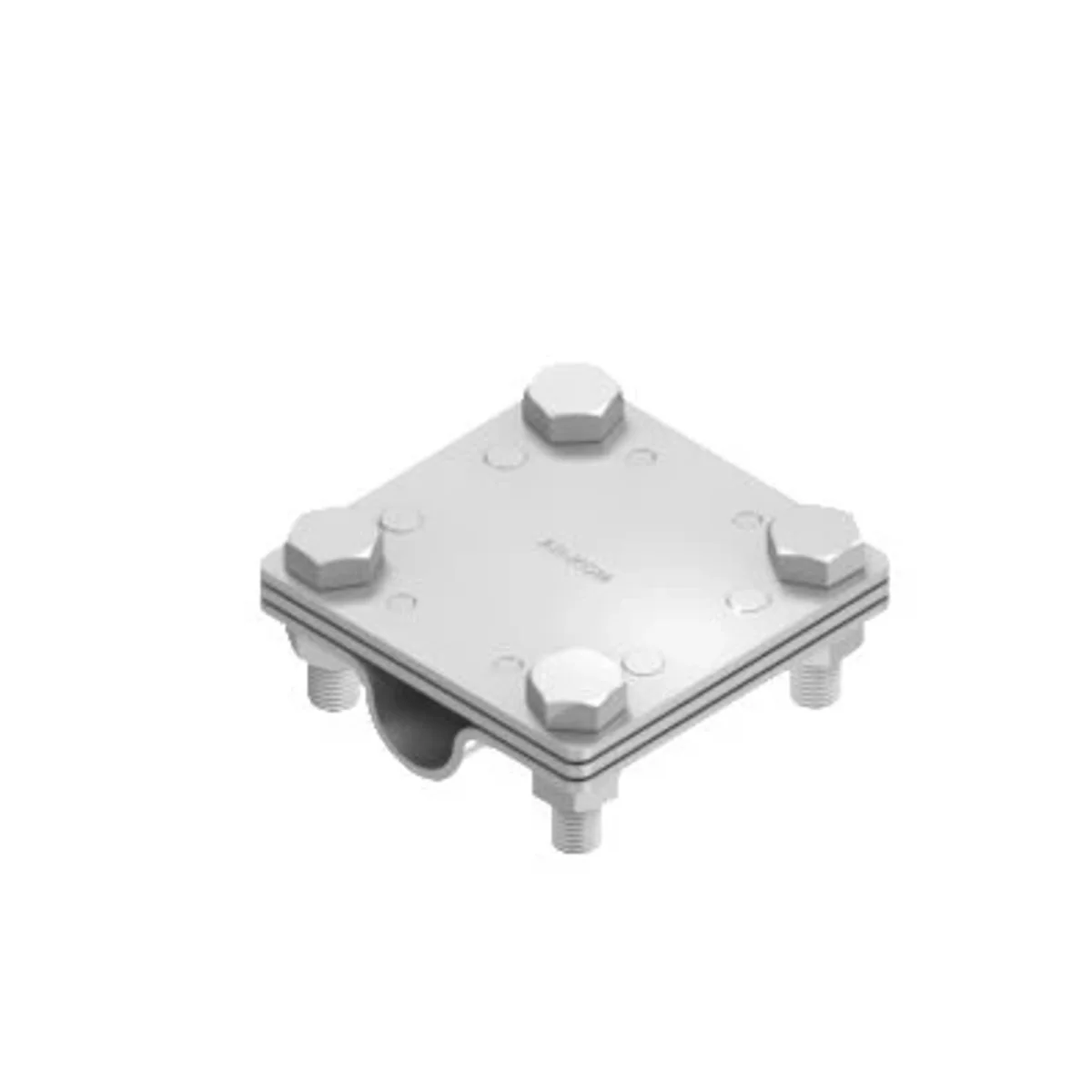

Earth connection 3 plates B=40x5 / fi 16 mm, stainless F285036
local index:
AOK057ANKO
Catalog No:
F285036
EAN code:
5907770518924
Price:
10,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
For connecting the earth electrode to the flat conductor. For earth electrodes: AN-53Z, AN-54Z, t=2mm

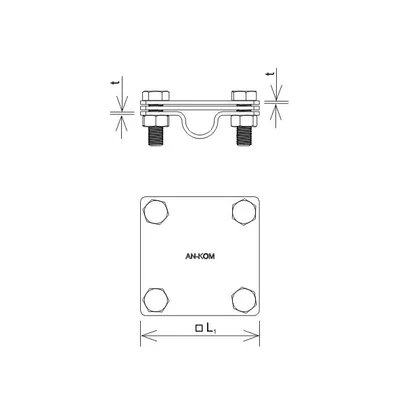

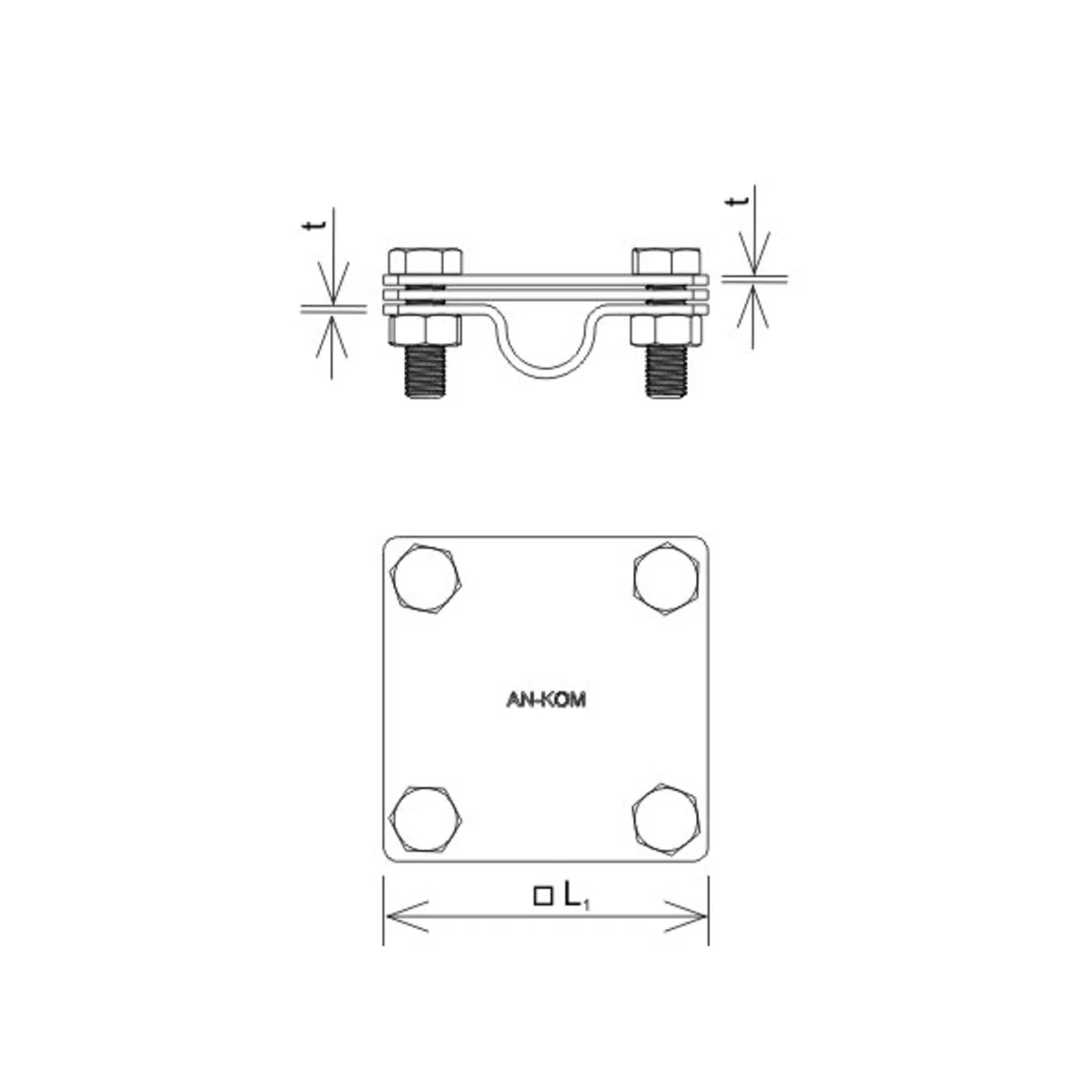

Technical data
-
Length [mm]66
-
Maximum tape width [mm]40
-
screws4xM8x30
-
Materialstainless steel
-
Earth electrode diameter [mm]16
-
PKWIU25.99.29.0
Other technical data
-
Mounting type conductorWith screw clamp
-
Material of holderStainless steel 316 (V4A)
-
Material of saddle clampStainless steel 316 (V4A)
-
Rozmiar przewoduPłaski 30x4 mm
-
Mounting type holderBore hole
-
Material base partStainless steel 316 (V4A)
Manufacturer details
-
ManufacturerAN-KOM 2 Sp. z o.o.
-
Address34-120 Inwałd ks. W. Bukowińskiego 15 Polska
-
