Cross connector /large/ B=40 mm (2 plates-4xM8) hot-dip galvanized A191036

Name: Cross connector /large/ B=40 mm (2 plates-4xM8) hot-dip galvanized
Brand: AN-KOM
SKU: AOK003ANKO
Price: 1.99 PLN
Availability: InStock

local index:

AOK003ANKO

Catalog No:

A191036

EAN code:

5907770500394

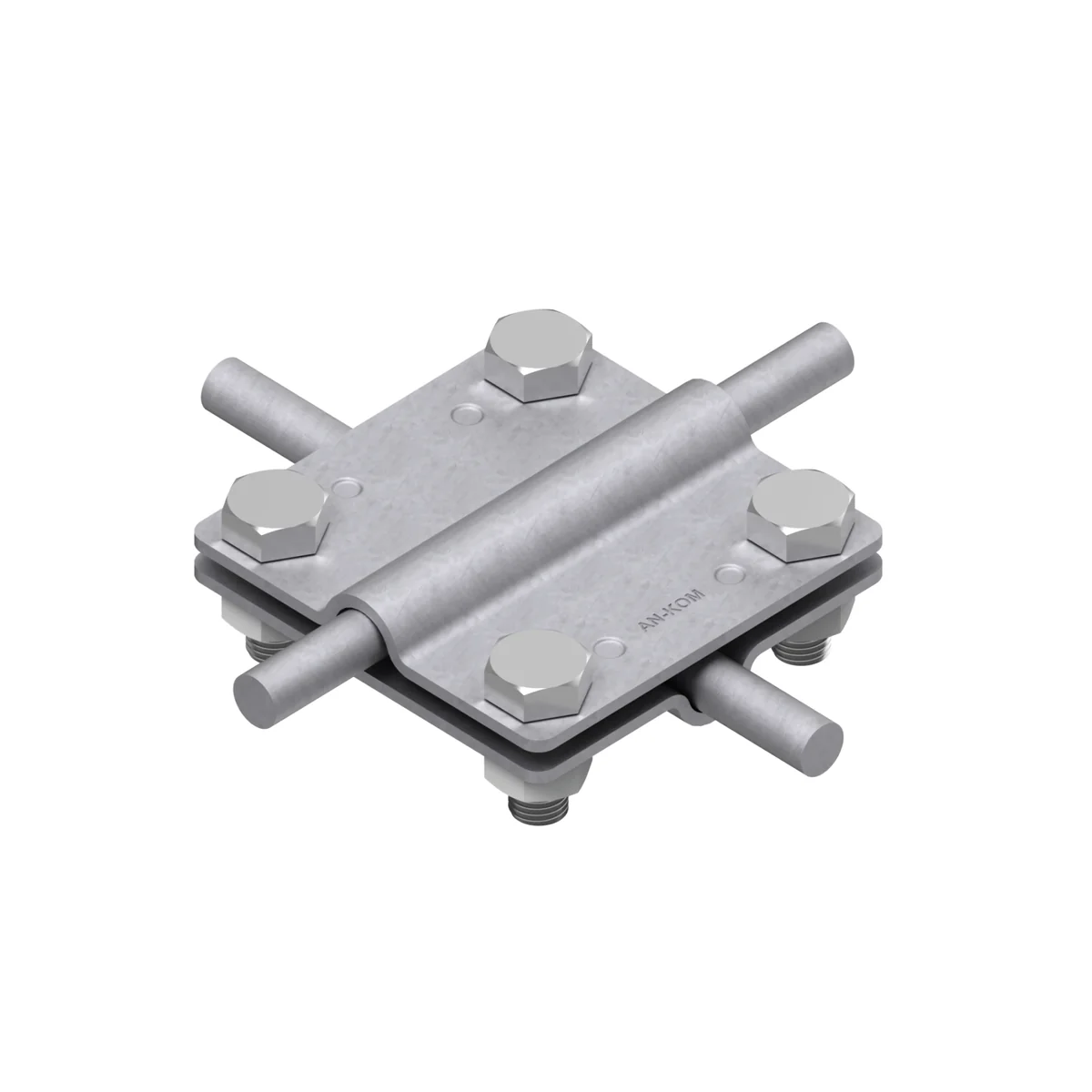

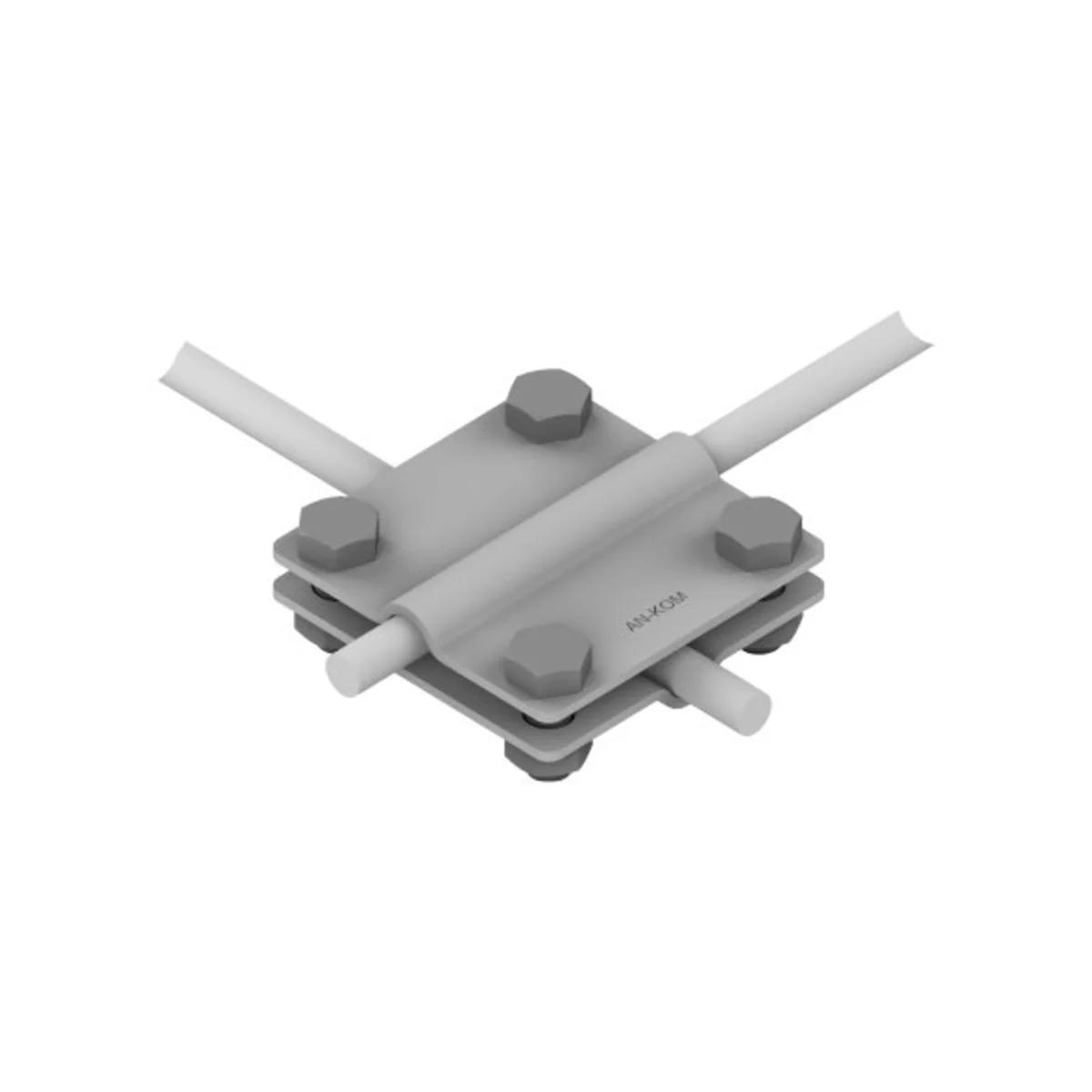

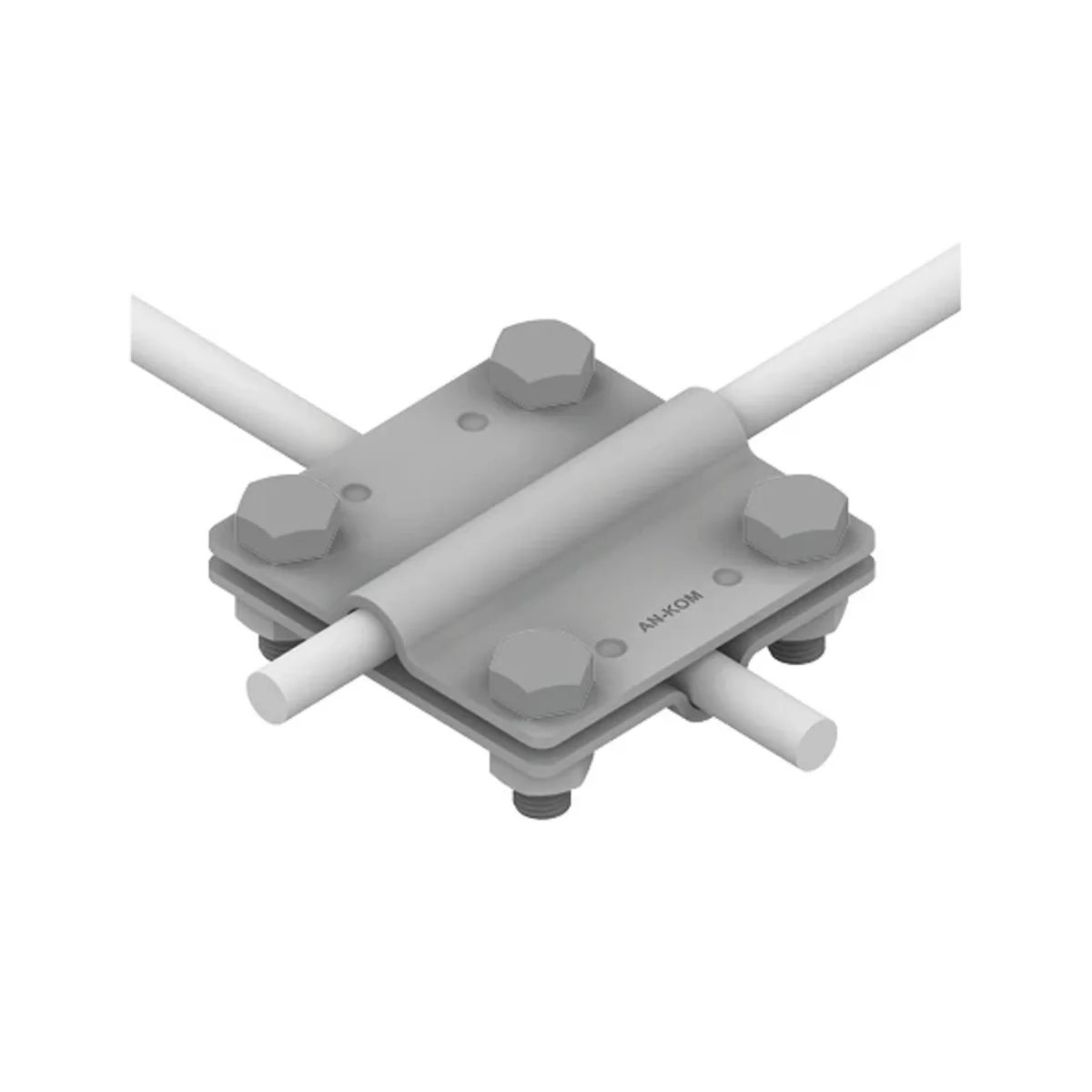

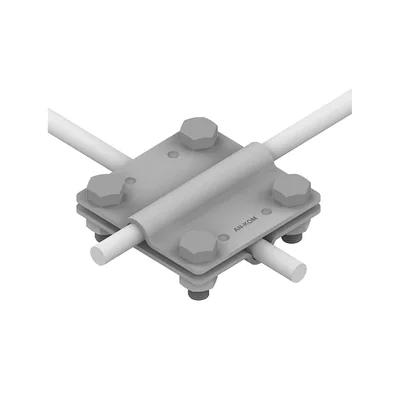

Cross connector /large/ B=40 mm (2 plates-4xM8) hot-dip galvanized

Click on the photo to enlarge

Manufacturer: AN-KOM

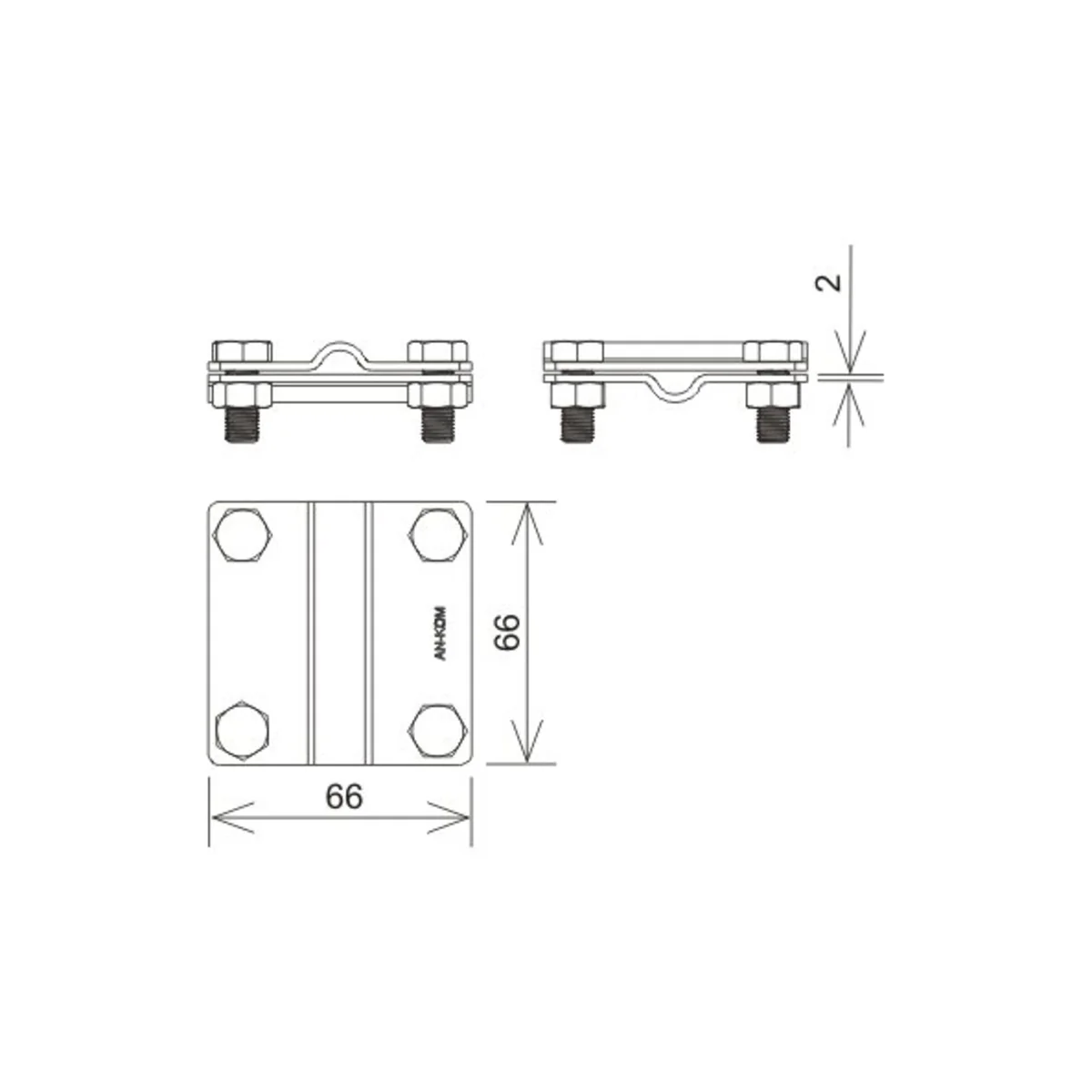

Length [mm]: 66

Material: galvanized steel

Width [mm]: 66

See full description

Price:

1,99 €

gross / pcs.

(including VAT 23%)

Accessible 385 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Cross connectors twisted with four screws for connecting round wires crosswise and in the T configuration. current resistance class H=100 kA

Technical data

Length [mm]

66
Width [mm]

66
Cable dimensions [mm]

6-8, 6-8
PKWIU

27.12.10.0

Material

galvanized steel
screws

4xM8x20
Surface protection

hot-dip galvanized

Other technical data

Type of connector

Cross connector
Material

Steel
Type of fastening screws

Hexagon screw

Suitable for connection

Przewód okrągły Rd 6-8 / Rd 6-8
Surface protection

Ocynk ogniowy zanurzeniowy

Manufacturer details

Manufacturer

AN-KOM 2 Sp. z o.o.
Address

34-120 Inwałd ks. W. Bukowińskiego 15 Polska
E-mail

biuro@an-kom.pl

Bulk packaging

A kind of package		Karton
Quantity	1 pcs.	50 pcs.
Weight (kg)	0,211	10,740
Volume (m3)	-	0,012
Width (m)	0,066	0,200
Length (m)	0,066	0,300
Depth (m)	0,030	0,200
